SHOWTEC ACT Follow Spot 230 CW


€994.00
Tax included

Compact 230 W cold white follow spot


Qty

Available upon request

Free shipping


wishlist

SHOWTEC ACT Follow Spot 230 CW

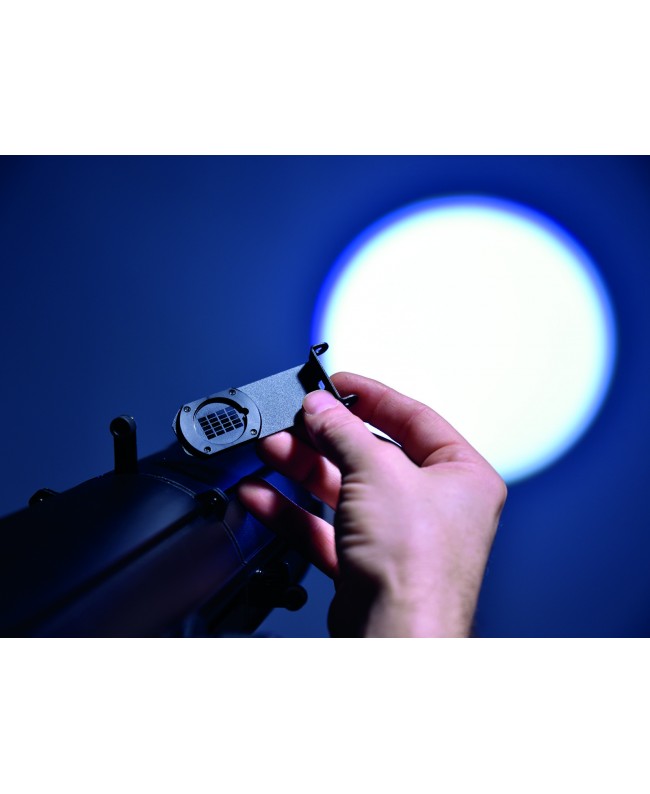

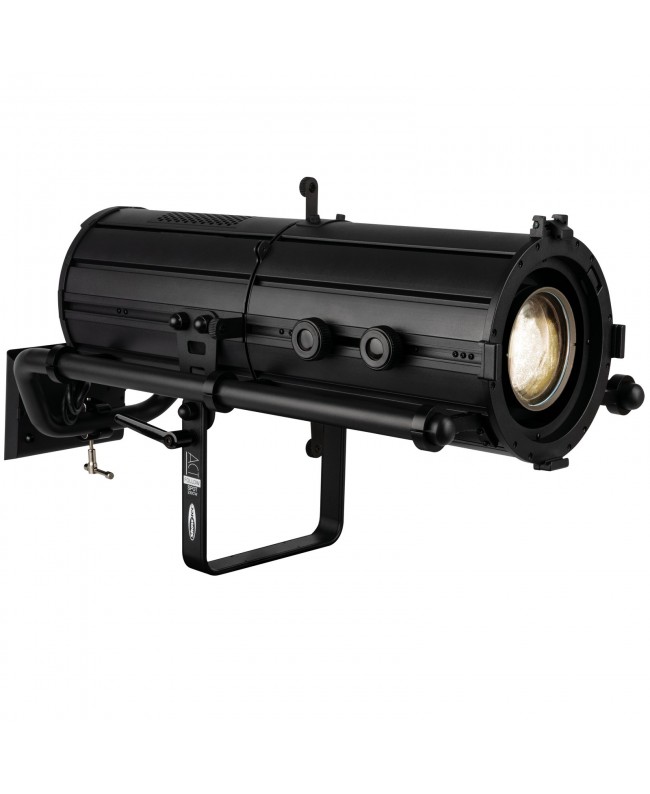

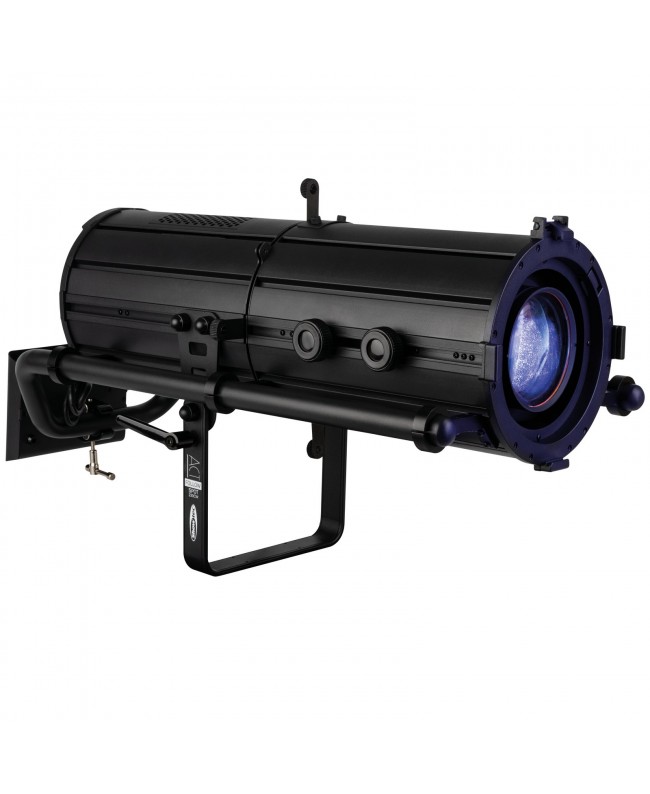

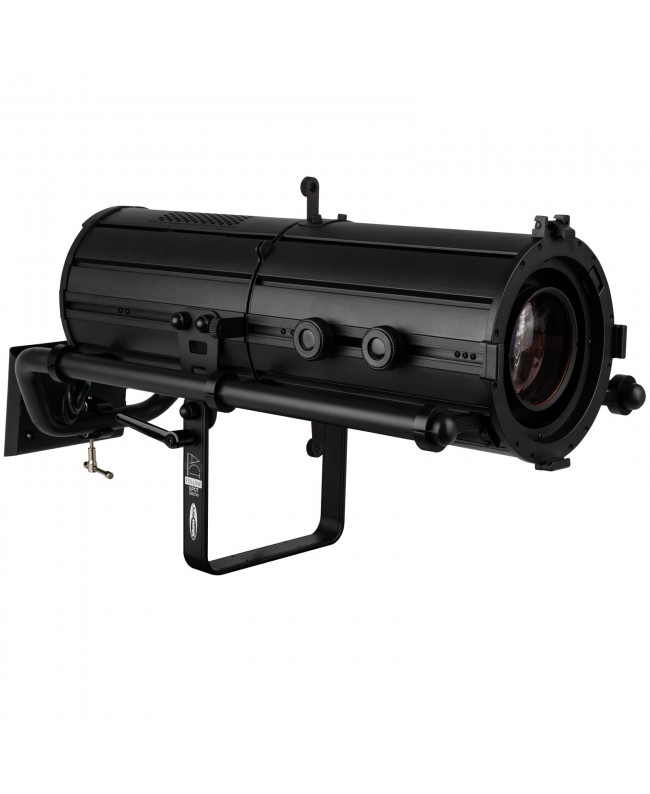

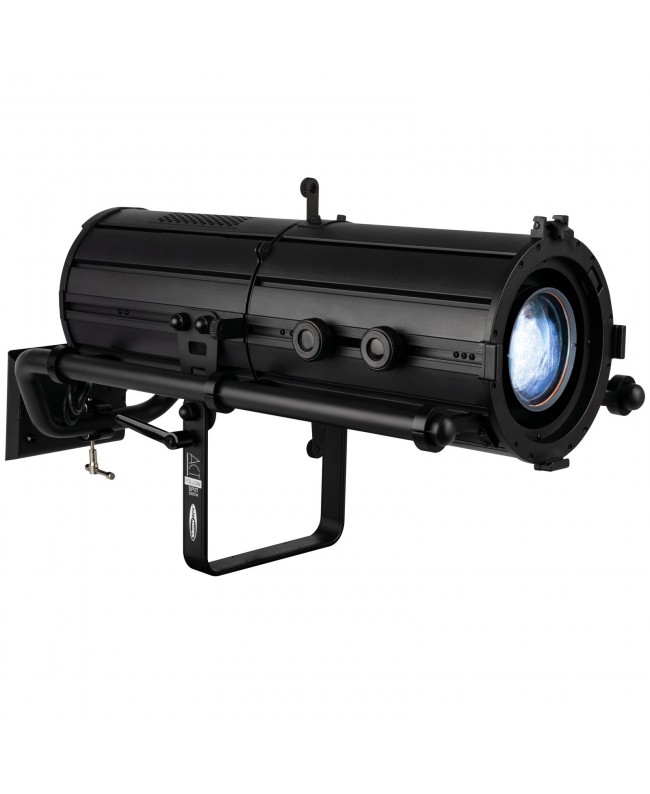

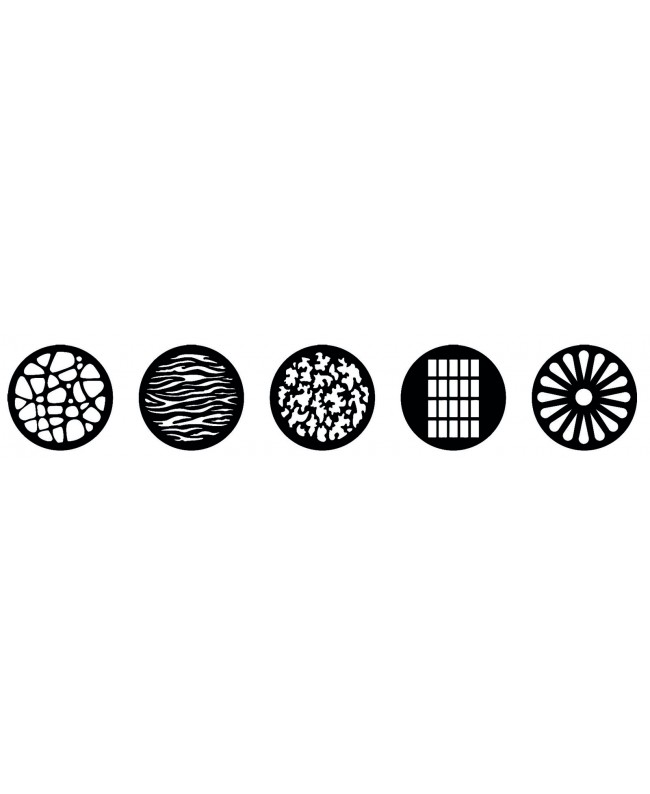

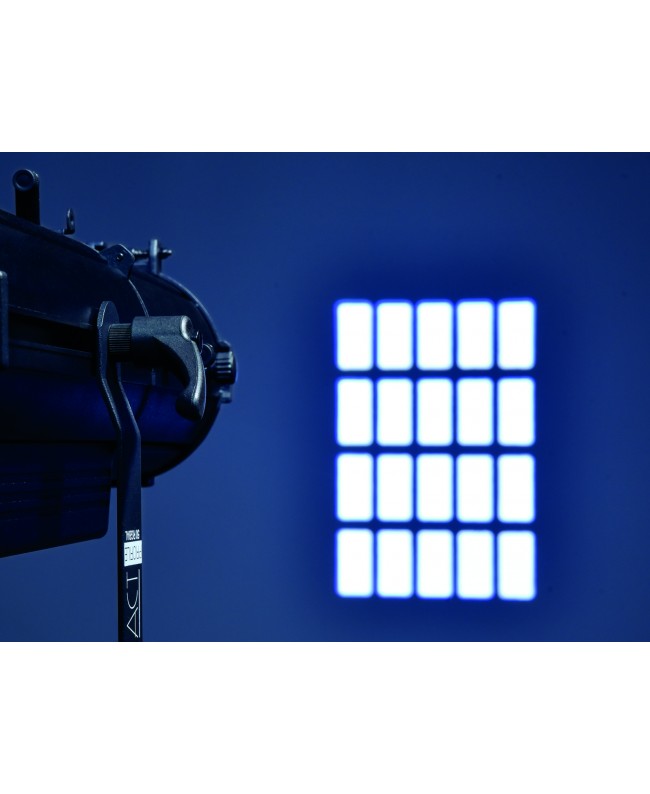

The Showtec ACT Follow Spot 230 CW is a compact and powerful LED follow spot equipped with a 230 W cold-white LED engine (6000 K). It features an internal colour wheel offering a choice of 4200 K, 3200 K, lavender, amber and pink, or open white for maximum output. The fixture includes a motorised iris, as well as dimmer and strobe functions, all controllable via DMX or a dedicated panel. The manual zoom (8°-32°), manual focus, and manual shutters provide full control over beam shape and size, while a gobo slot adds creative flexibility for marking, framing or pattern projection. A clear OLED display on the unit makes setup and configuration straightforward.

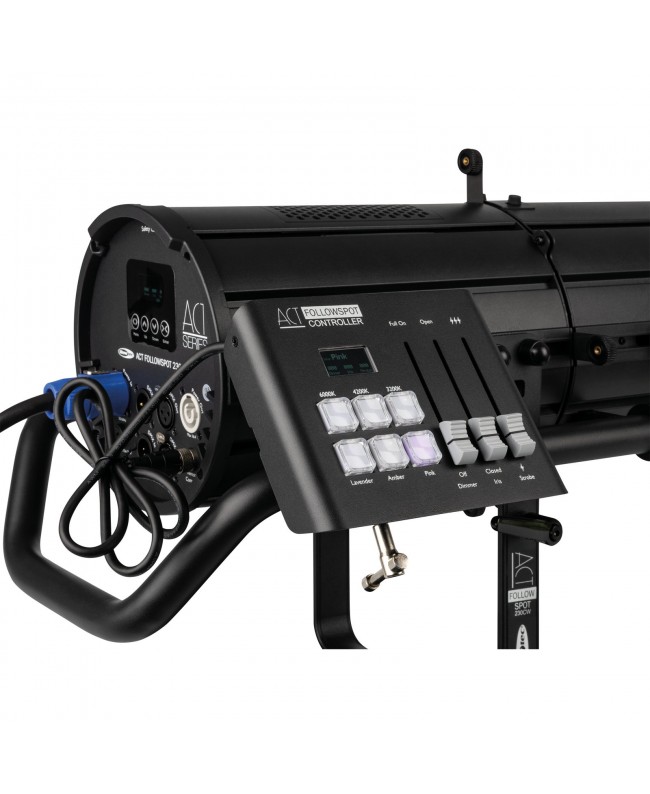

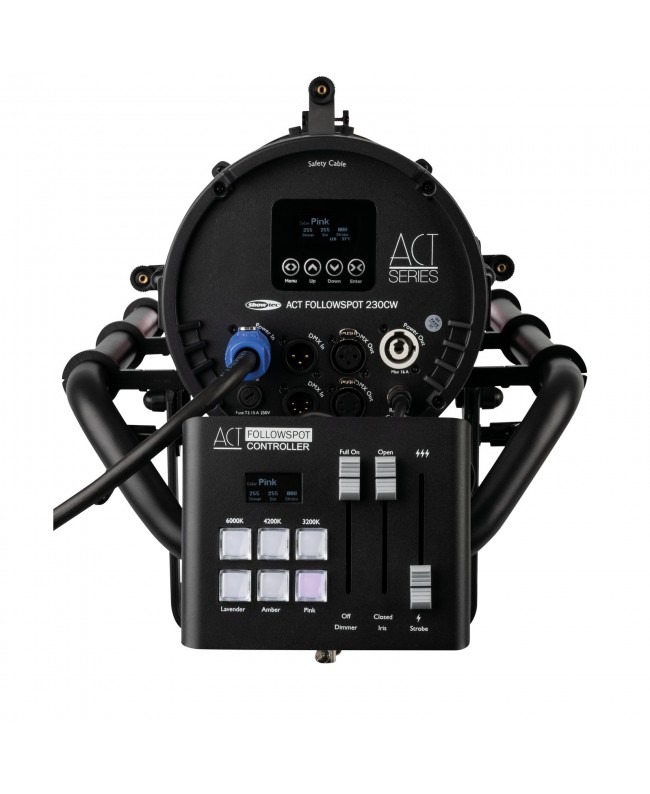

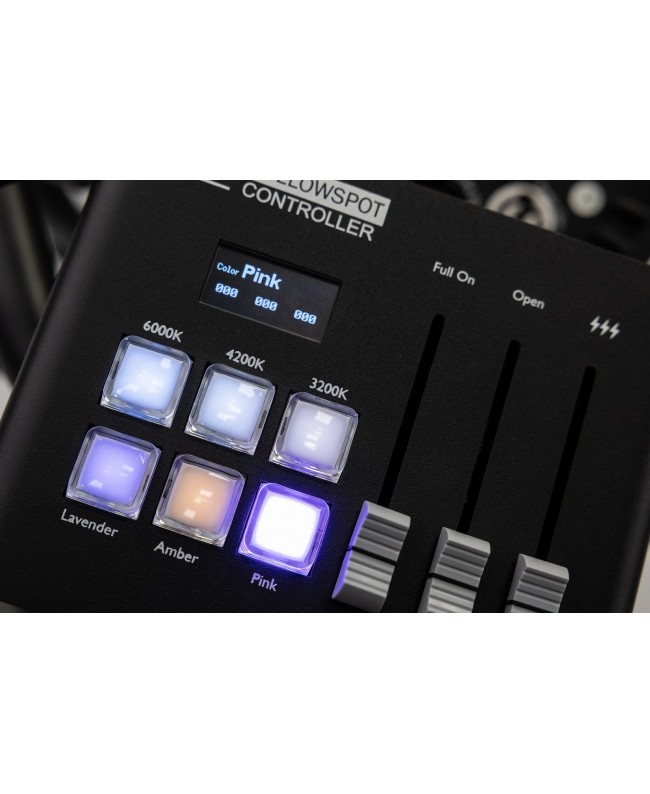

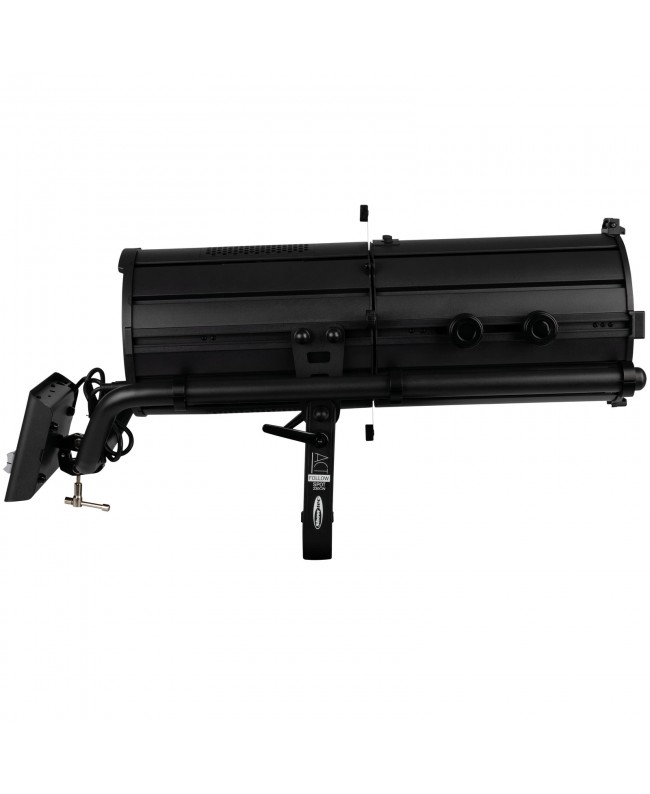

The dedicated control panel is included and offers six direct-access colour buttons and three faders for dimmer, iris and strobe. The controller can be mounted on the side or the back of the unit using the supplied metal clamp. The fixture also provides DMX in/out with merge, allowing control from both a lighting desk and the included panel at the same time-ideal for situations where the lighting operator needs both local and desk-based control.

  • 230 W cold-white LED (6000 K) with CRI 90

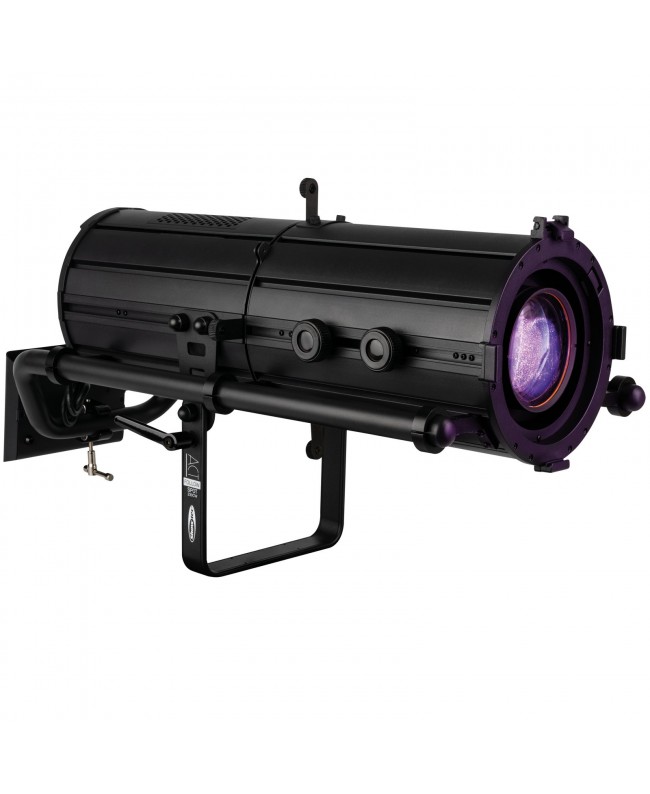

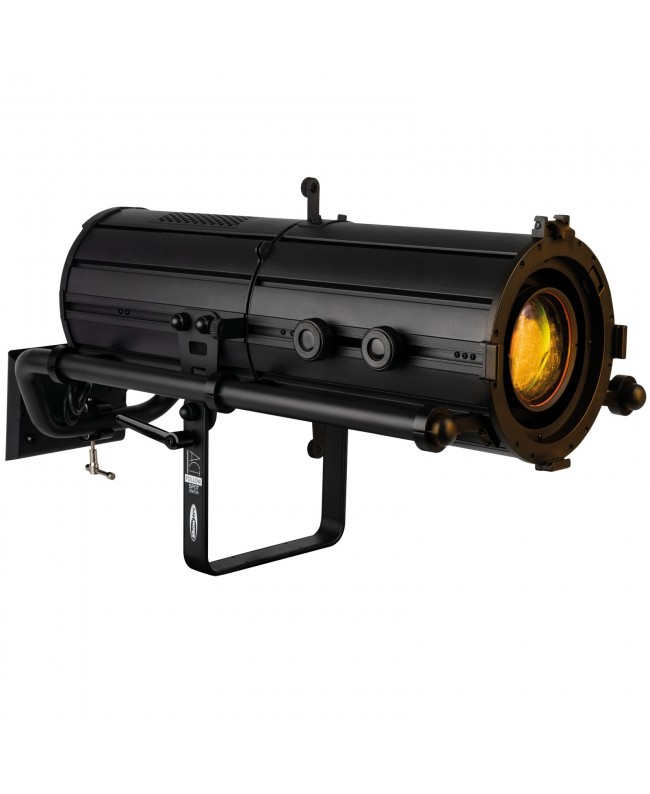

  • Colour wheel with 6000 K, 4200 K, 3200 K, lavender, amber and pink
  • Motorised iris with DMX control
  • Manual zoom from 8° to 32°
  • DMX512 with merge function + dedicated controller included
  • Light Source Type: LED
  • Light Source Quantity: 1
  • Light Source Power: 230 W
  • LED Colour Type: CW
  • Refresh Rate: 1000 Hz
  • Illuminance at 2 m: 6608 lx
  • Illuminance at 3 m: 2937 lx
  • Illuminance at 5 m: 1057 lx
  • Luminous Flux (Total): 6513 lm
  • CRI: 90
  • CCT: 6000 K
  • Beam Angle Minimum (Circular): 8.3°
  • Beam Angle Maximum (Circular): 32.4°
  • Zoom Type: Manual
  • Zoom Minimum: 8°
  • Zoom Maximum: 32°
  • Iris: Motorised
  • Control Mode: DMX / Manual
  • DMX Channels: 4 / 5
  • Protocols: DMX / RDM
  • Display: OLED
  • Display Size: 1.3
  • Dim Curve: Square / I-Square / S-Curve
  • Dimmer Resolution: 16 bit
  • Dimmer: 0-100 %
  • Strobe: 0-15 Hz
  • Colour System: Colour Wheel
  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 230 W
  • Fuse: 3.15 A
  • Power Connector In: Power Pro Blue
  • Power Connector Out: powerCON Grey
  • DMX Connector: XLR 3P In/Out / XLR 5P In/Out
  • Length (mm): 609 mm
  • Width (mm): 297 mm
  • Height (mm): 364 mm
  • Weight: 12.7 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Aluminium
  • Colour: Black
  • Cooling: Forced Convection
  • Maximum Ambient Temperature: 45 °C
  • Minimum Operating Temperature: 0 °C
  • Included Cables: Power Pro Cable
  • Included Accessories: Clamp / Controller / Gobo Holder
