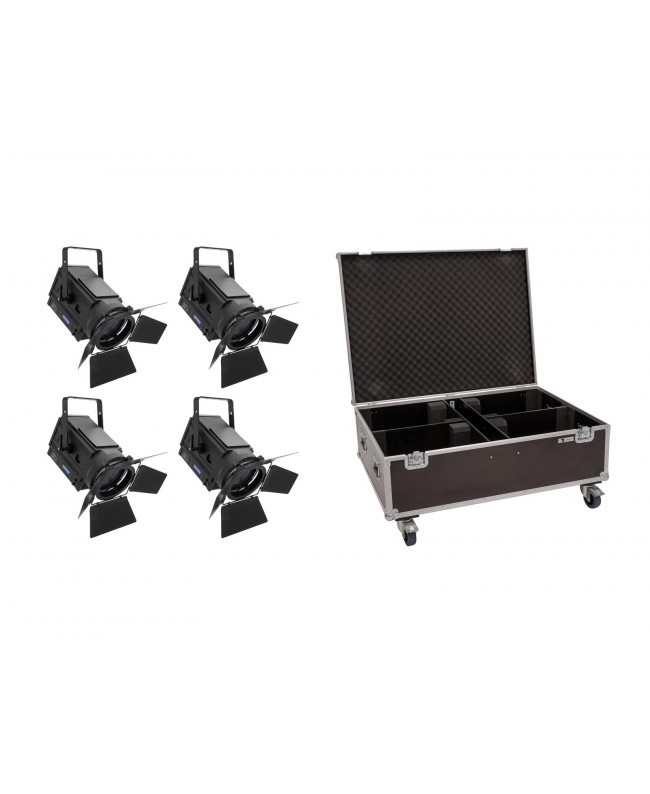

EUROLITE Set 4x LED THA-150F + Case

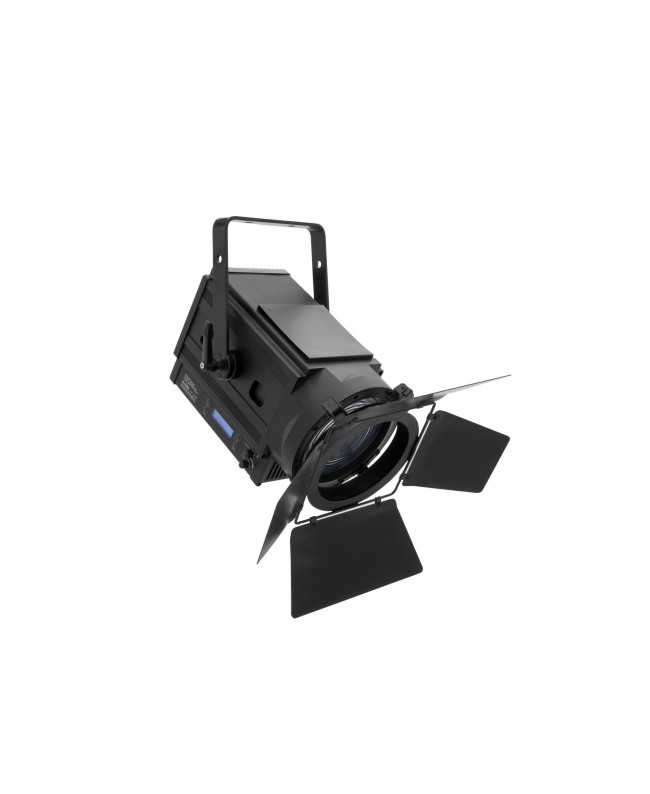

EUROLITE LED THA-150F Theater SpotFresnel spotlight, dim to warm, 170 W warm white/amber LED, CRI >90, quiet, DMX- New LED technology that simulates the color temperature curve of a halogen lamp when dimming

• Rugged metal housing
• 1 LED 170 W COB (chip-on-board) Dim to warm (homogenous color mix)
• Exact 16 bit resolution at Dimmer
• Zoom motor driven
• Color blend stepless; Dimmer electronic; Dimmer speed (step response) adjustable; dimmer curves adjustable

Strobe effect

The device is cooled by temperature-controlled fan

• Control via RDM; DMX
• Preprogrammed in Light´J; Light Captain

Flicker-free

• With a beam angle of 8° - 55°
• Very high color rendering index (CRI)
• With mounting bracket
• LCD display

Rubber feet

Mains input and output for power linking up to 8 units For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography

• Application possibility: Suspended; on stand

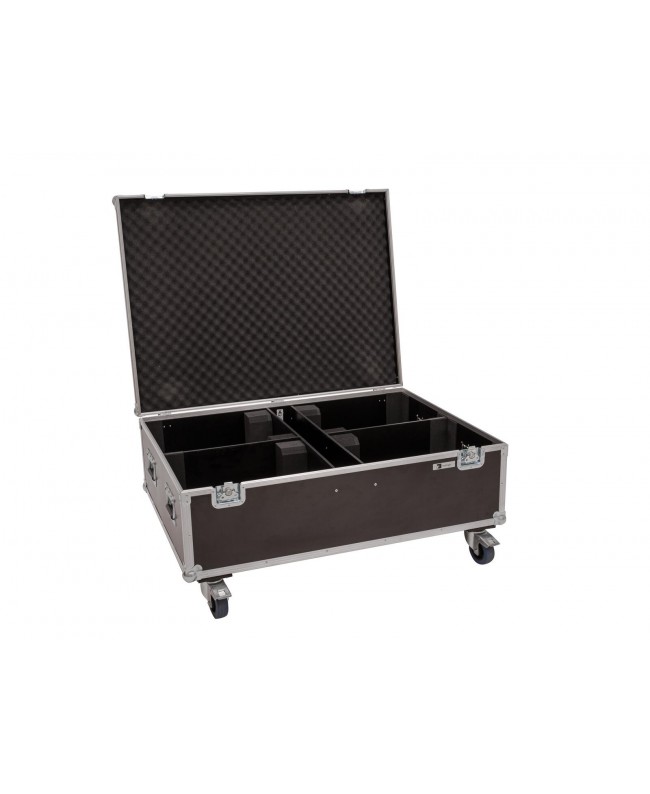

• ROADINGER Flightcase 4x LED THA-150F Theater SpotTrunk case with castors, PRO version- With accessory compartment
• With 4 device compartments
• High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
• Interior with foam padding
• Aluminum profile frames 25 mm with rounded edges
• 4 Hinged, chromium plated case handles
• 3 Chrome tip-over locks
• 2 High-quality butterfly locks
• 4 X castors with 2 locking brakes
• 4 X built-in stacking trays in the cover
• Branded hardware
• Scope of delivery
• 4 X EUROLITE LED THA-150F Theater Spot- 1 x spotlight
• 1 X power cord
• 1 X barndoor
• 1 X filter frame
• 1 X user manual

• Weight: 66.50 kg
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 150 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug included
• Power output: P-Con (gray), mounting version
• LED type: 1 X 170 W COB (chip-on-board) Dim to warm (homogenous color mix)
• Equipment: Zoom motor driven
• DMX channels: 2; 6; 7
• DMX input: 1 X 3-pin XLR (M) mounting version, 1 x 5-pin XLR (M) mounting version
• DMX output: 1 X 3-pin XLR (F) mounting version, 1 x 5-pin XLR (F) mounting version
• Cooling: Temperature-controlled fan
• Control: RDM; DMX
• Preprogrammed in: Light´J; Light Captain
• Projection: Flicker-free
• Beam angle: 8° - 55°
• Beam angle (1/2 peak): 8 - 39°
• Beam angle (1/10 peak): 12 - 55°
• Color rendering index (CRI): 96 Ra
• Luminous flux: 5093 Lm
• Housing color: Black
• Attachment system: Mounting bracket
• Display type: LCD display
• Transport aid: Rubber feet
• Material: Aluminum casting; metal
• Slot for spot length: 20 cm x 20 cm
• Dimensions: Length: 45,7 cm, Width: 33,6 cm, Height: 39,8 cm
• Weight: 9.40 kg
• Noise classification: Class 2 (slight noise)
• Energy efficiency class (A - G): G
• EPREL-Nr: 1243870
• Diameter mounting holes: 5 X Ø10 mm
• Material: Aluminum casting, 6.5 mm
• Cable construction: 3 X 1.5 mm² H05VV-F
• Cable length: Approx. 1.3 m
• Material: Aluminum, 1.5 mm; metal, 1 mm
• Ring diameter: Outside: 198 mm, Inside: 220 mm
• Dimensions: Width: 50.5 cm, Depth: 4.2 cm, Height: 50.5 cm
• Material: Aluminum, 1 mm
• Dimensions: Width: 22.5 cm, Height: 22.5 cm, Diameter: Ø 18 cm
• Maximum load: 100 kg
• Aluminum profile frames: 25 mm
• Case handle: 4 Pc/pcs
• Stop hinge: 3 Pc/pcs
• Lock: Butterfly lock: 2 pc/pcs
• Transport aid: 4 X castors with 2 locking brakes, 4 x built-in stacking trays in the cover
• Use of brands: Branded hardware
• Material: Birch multiplex, 7 mm
• Color: Dark brown, laminated
• Accessory compartment: 9 cm x 79 cm x 23.5 cm
• Device compartment: 48 cm x 22.5 cm x 23.5 cm
• Inside dimensions: 105 cm x 79 cm x 23.5 cm
• Dimensions: Width: 112 cm, Depth: 50 cm, Height: 84 cm
• Weight: 28.90 kg
