Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 6 input cards + 4 output cards on board, 8K ready
Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 3 input cards + 4 output cards on board, 8K ready
Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 4 input cards + 2 output cards on board, 8K ready
Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 2 input cards + 1 output card on board, 8K ready

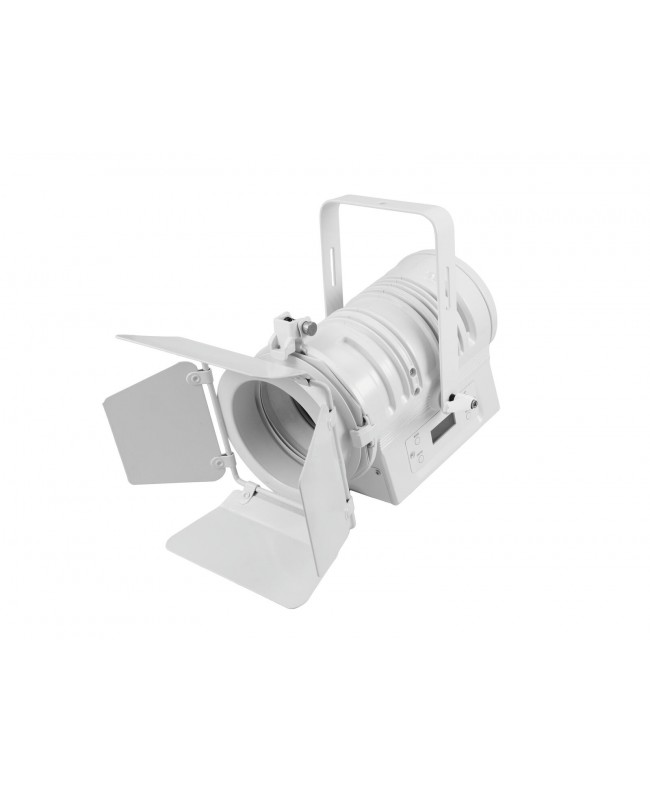

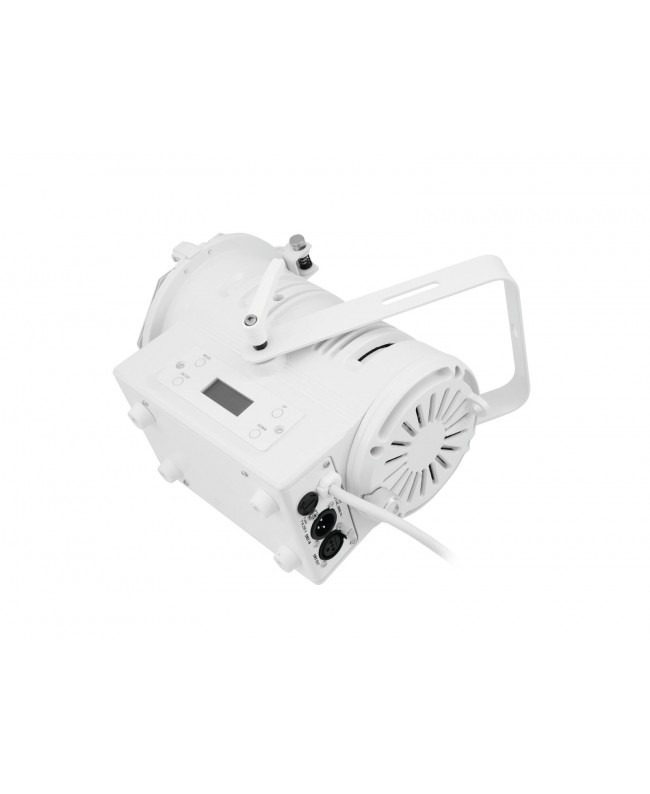

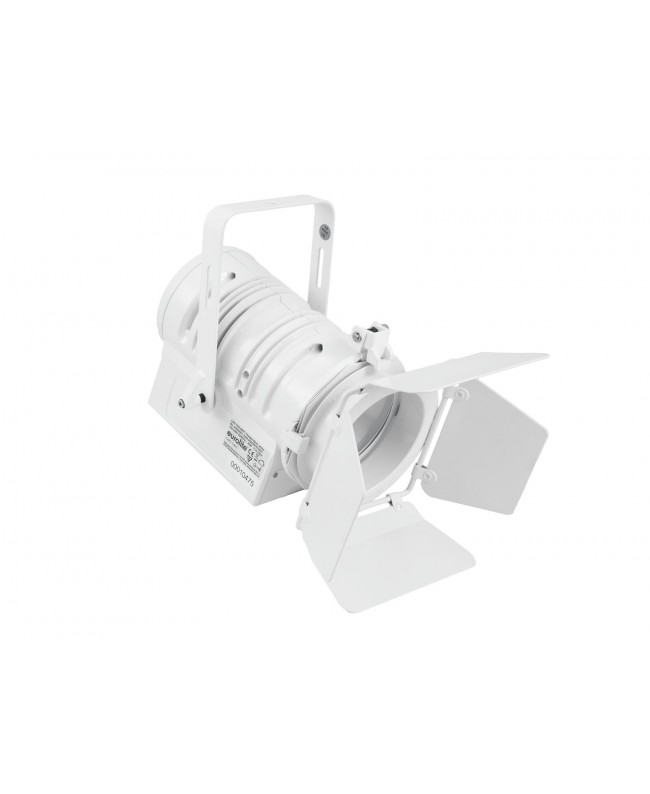

The device is cooled by passive convection cooling
With mounting bracket
For application areas such as: Stage; decoration; wedding/gala/events; Trade fair and shop fitting; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
Application possibility: Suspended; on stand
Can be operated in 1; 2 CH mode
With a beam angle of 11° - 48°
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 40 W
Power connection: Fixed power supply cord with safety plug
Lamp type: LED lamp
LED type: 1 x 57 W COB (chip-on-board) warm white (WW)
DMX channels: 1; 2

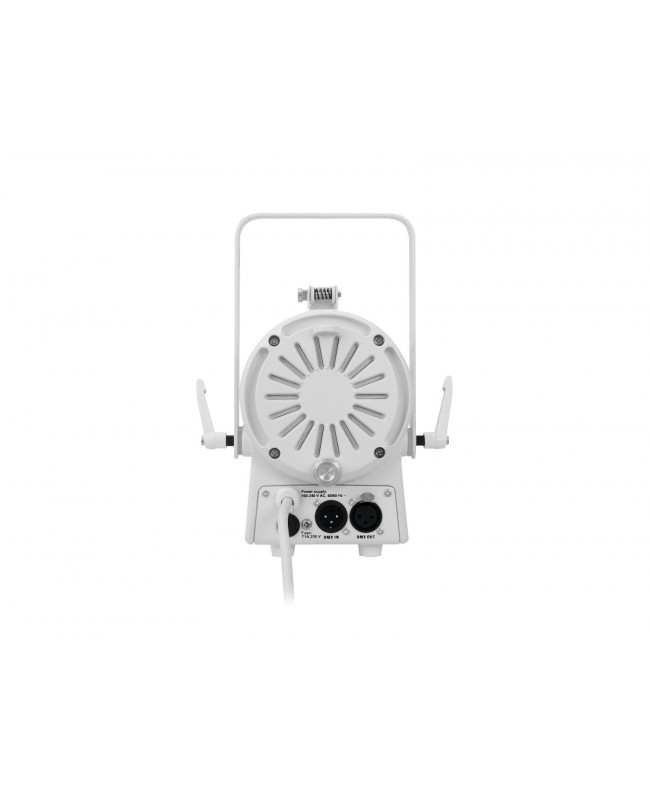

DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: RDM; stand-alone; DMX
Fixtures available for: LED PC-Control 512; Light Captain; Light'J; Colorchief
Projection: Flicker-free
Beam angle: 11° - 48°
Beam angle (1/2 peak): 11 - 37°
Beam angle (1/10 peak): 17 - 48°
Color temperature: 3100K
Color rendering index (CRI): 91 Ra
Illuminance in Lux (lx): Warm white (WW) 3m: 1656 lx, 6m: 424 lx
Housing color: White
Attachment system: Mounting bracket

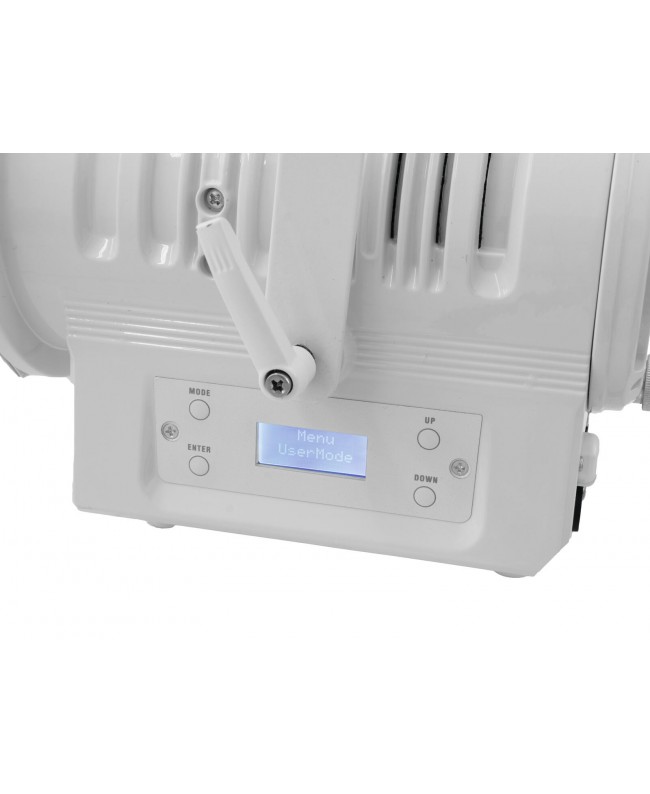

Display type: LCD display
Transport aid: Rubber feet
Dimensions: Length: 27.5 cm, Width: 20.5 cm, Depth: 25 cm
