Novastar H series 1x HDMI 2.0 output card

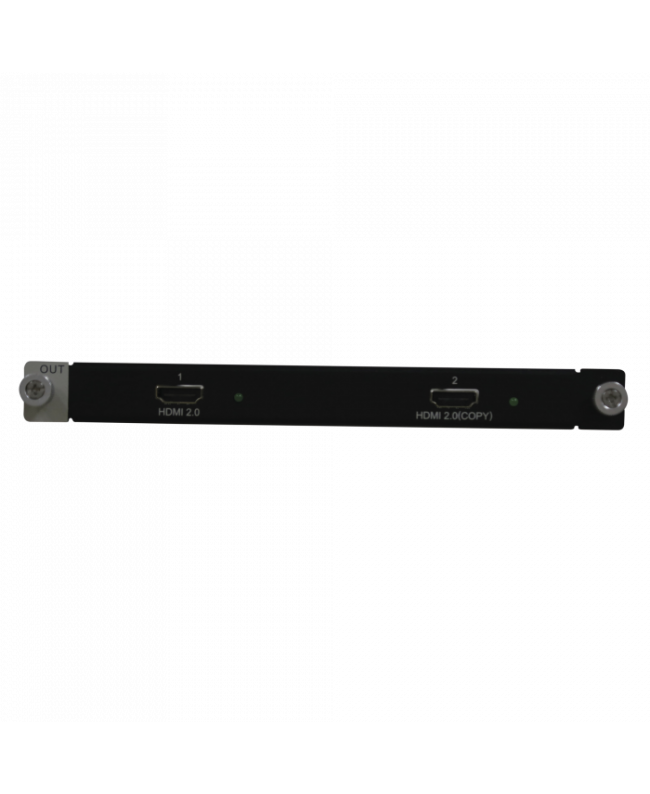

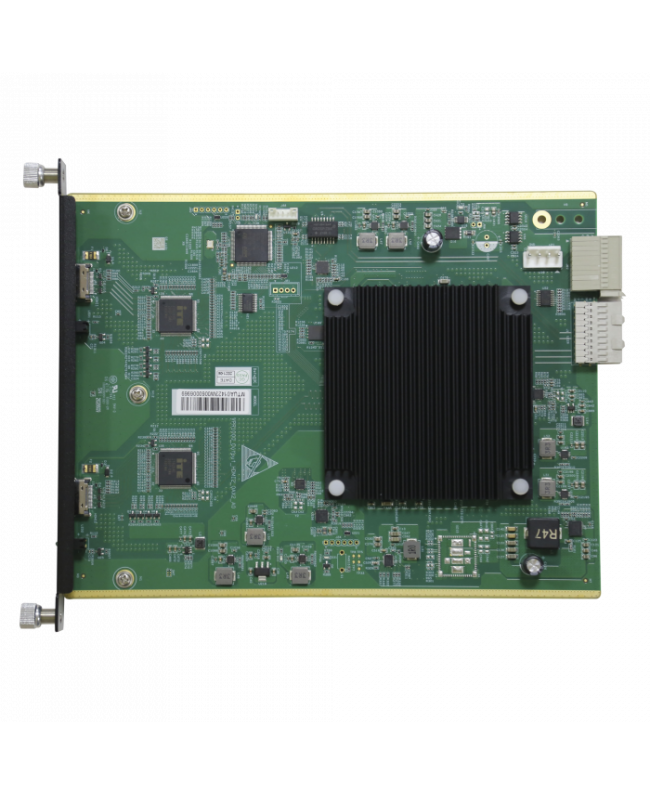

The H Series 1x HDMI 2.0 Output Board is an output board for the H Series H2/H5/H9/H15 Videowall Splicers. It features two HDMI 2.0 outputs. Note: Output 2 provides a duplicate signal to output 1. Supported resolution is 4096 x 2160 at 60 Hz, with maximum custom resolutions up to 8192 x 1146 at 60 Hz or 1092 x 7680 at 60 Hz. Supports RGB 4:4:4, YCbCr 4:4:4 and YCbCr 4:2:2 8- or 10-bit outputs. Two status LEDs indicate whether the output connectors are connected normally.

• Supports HDMI 2.0
• Compatible with 4 K / 60 Hz
• Status LEDs for each HDMI connector
