PROLIGHTS DisplayCob TRWDDY Gallery Lights

PROLIGHTS DisplayCob TRWDDY

€315.00
Tax included

45W Daylight White and WDMX/DMX track mounted LED projector

Qty

In Stock

Delivery

Do You want Your order by Monday, 28/04/2025? Order within 3 hours and 2 minutes

Free shipping

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

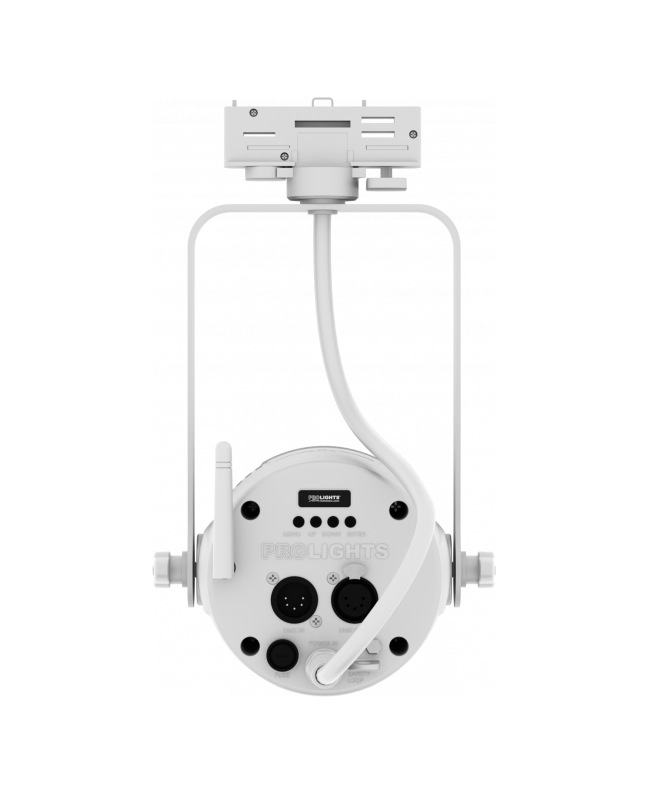

PROLIGHTS DisplayCob TRWDDY



DisplayCob TRWDDY is a track mounted 45W Daylight White LED COB spotlight, designed with electronic and user interface on board being able to be implemented with any existing lighting track easily. The on board Wireless DMX receiver allow users to control this luminaire without any cable, so it doesn't need a specific track with data wirings, or it can be hanged without its track adaptor, anywhere using the onboard bracket and controlling via wired DMX protocol. DisplayCob TRWDDY optical systems is composed by a powerful COB LED source and a parabolic reflector, with swappable lenses allowing a beam angle from 15° up to 60° for a perfect focusing. DisplayCob features are an ideal solution to add dynamics and creativity in any installations such as commercials, hotels, restaurants and art galleries.

Main features:

  • 45W Daylight White LED COB spotlight with swappable optical group (15° ~ 60°)
  • Electronics on board and not on track for easy implementation
  • W-DMX and DMX512 control

LIGHT SOURCE

  • Source: 45W White COB LED
  • CCT: 5.000
  • Luminous flux: 2'684 @full
  • Lux: (30°) 313lx @5 m full
  • CRI: > 91
  • R9: >58
  • TLCI: >91
  • TM30 Rf: >88
  • TM30 Rg: >98
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (included) - 15° (optional)

DYNAMIC EFFECTS

  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: White

CONTROL

  • Protocols: DMX512, W-DMX
  • DMX channels: 1 / 2 / 5channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 52W
  • Output (at 230V): 29 units on a single power line
  • Power factor: >0,98
  • Inrush current: 110VAC/5.3A, 230VAC/7.45A

PHYSICAL

  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track-adapter included for suspension and fixing
  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
  • Dimensions (WxHxD): 167x290x163mm / 6.57''x11.42''x6.42''
  • Weight: 1,85kg / 4.08lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

  • 1 x DISPLAYCOBTRWDDY2
  • 1 x User Manual

DISPLAYCOBTRWDDY2

Data sheet
