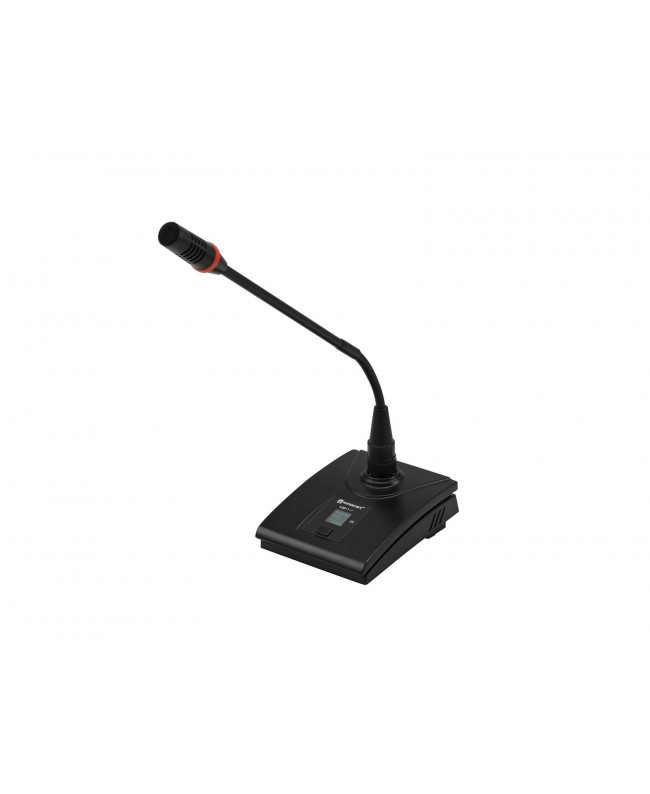

Relacart UD-1 UHF Gooseneck Microphone for WAM-402

Scope of delivery

• 1 x microphone
• 1 x windshield
• 1 x user manual
• 1 x declaration of conformity

• Type: Gooseneck microphone
• Power supply: 3V DC
• Power connection: Battery/battery pack
• Capsule type: Condenser
• Battery: 2 x Mignon (AA) (not included)
• Low cut: 120Hz, switchable
• Gain: Input: +- 10 dB
• Range: Range up to 60m
• Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
• Switching bandwidth: 11 MHz
• Frequency stability: +- 0.0005 %
• Parallel mode: Max. 8 transmitter
• RF power output: 10 mW
• Modulation: FM
• Frequency selection: 90 switchable frequencies, In 10 groups with up to 10 preset frequencies each
• Display type: LCD display
• Display: Charge status indicator , frequency , channel
• Control elements: Transmitter power switch (high-low)
• Connections: Input: microphone via 3-pin XLR (F) mounting version
• Switch: On/off switch; low cut switch
• Material: Metal
• Color: Black
• Dimensions: Width: 11.5 cm, Depth: 14 cm, Height: 48.5 cm
• Weight: 0.83 kg
