Omnitronic UHF-601 1-channel Wireless Mic System 823-832/863-865 MHz Handheld Wireless Systems
  • New

Omnitronic UHF-601 1-channel Wireless Mic System 823-832/863-865 MHz

€132.00
Tax included

True diversity wireless system with auto scan, 7-band EQ and TFT color displays

Qty

In Stock

Delivery

Do You want Your order by Thursday, 05/03/2026? Order within 4 hours and 15 minutes

Free shipping

Compare

wishlist

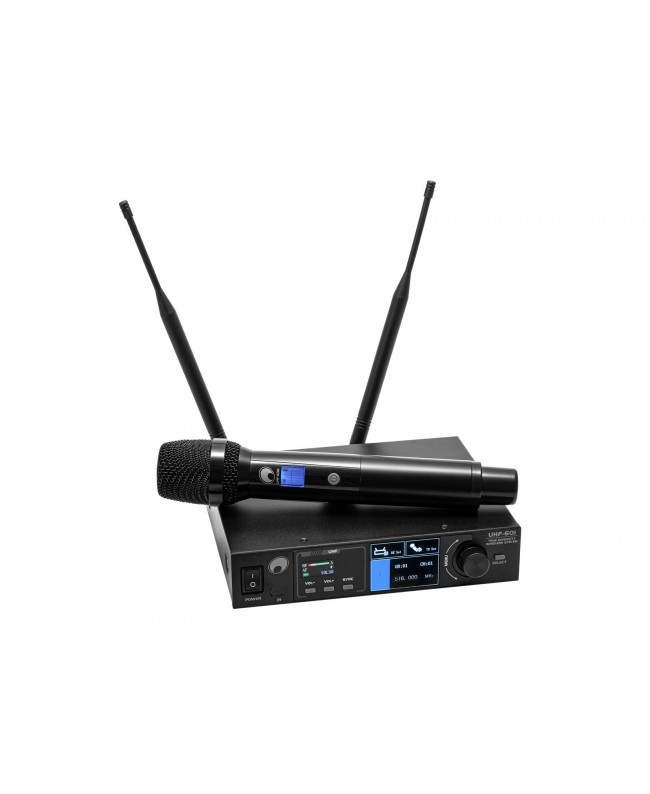

Omnitronic UHF-601 1-channel Wireless Mic System 823-832/863-865 MHz



  • Multifrequency wireless receiver with high-quality true diversity reception
  • Ideal for large multi-channel systems
  • Operating range up to 60m with line-of-sight
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • UHF 863 - 865 MHz License-free and approved in Europe
  • Up to 24 transmitters in 2 bands can be operated in parallel without interference

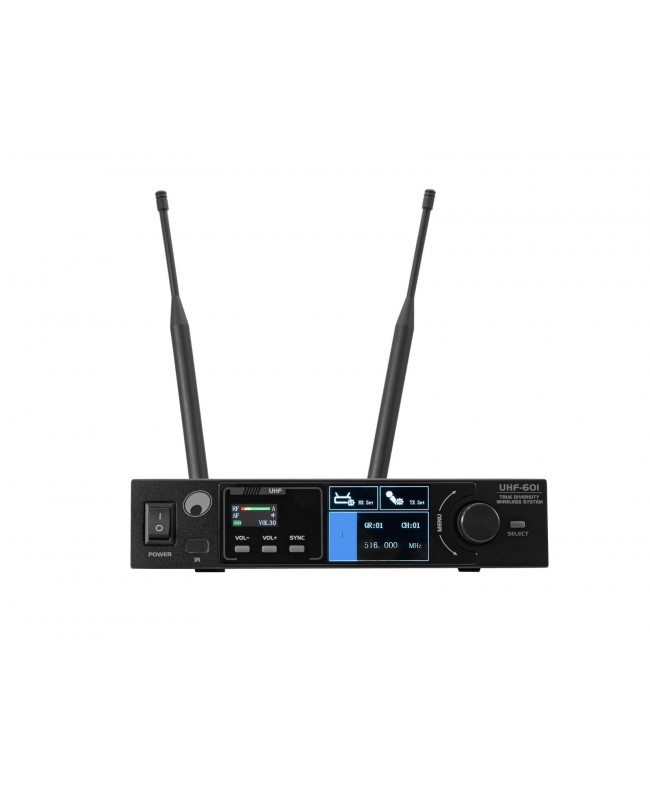

receiver

  • Automatic frequency setup
  • ID transmitter verification prevents incorrect use and interference from external radio transmitters
  • Different user colors selectable for easy differentiation
  • 7-band equalizer for sound tuning
  • Lock function for prevents undesired changes to settings
  • Multifunctional jogdial for menu settings
  • (19) 48.3 cm rack installation possible 1 U
  • Ultra-low latency
  • Multicolor TFT display
  • Desktop console housing

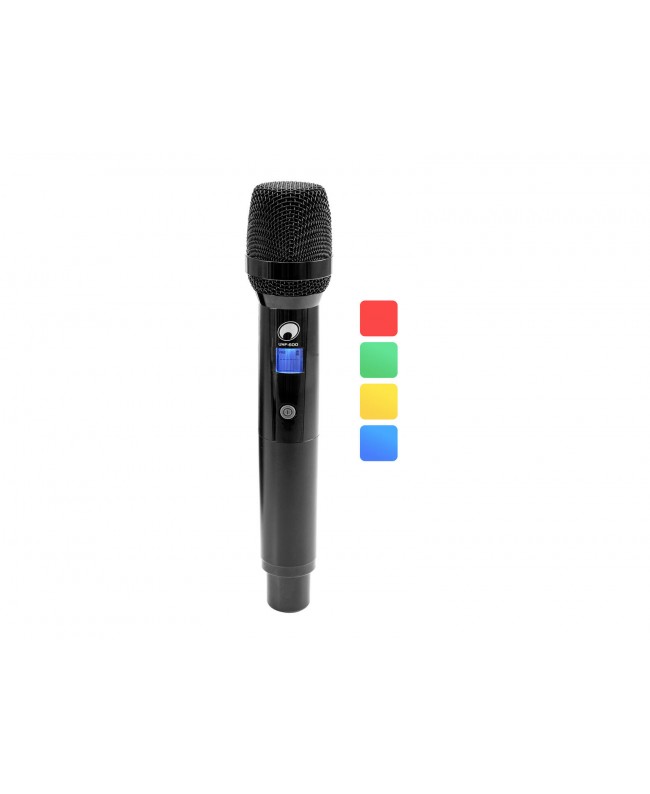

microphone

  • Polar pattern: Cardioid
  • Multicolor LCD display
  • Charge status indicator

Scope of delivery

  • 1 x receiver
  • 2 x antenna
  • 1 x external mains adapter
  • 4 x foot
  • 1 x jack cable
  • 3 x mounting bracket
  • 1 x microphone
  • 1 x holder
  • 1 x user manual
  • 1 x declaration of conformity
  • Type: Wireless set
  • Range: Range up to 60m with line-of-sight
  • Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
  • Switching bandwidth: 11 MHz
  • Parallel mode: Max. 24 transmitter in 2 bands
  • Frequency selection: 120 frequencies automatically scannable, In 10 groups
  • Weight: 1.74 kg
  • Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
  • Power consumption: 2.2 W
  • Protection class: Protection class III
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included
  • Number of channels: 1
  • S/N ratio: 80 dB
  • THD: 0.5 % at 1 kHz
  • Diversity: True diversity
  • Latency: 3 ms
  • Modulation: FM
  • Housing color: Black
  • Display type: Multicolor TFT display
  • Display: Frequency , goup , channel , RF signal level; AF audio level , Mute
  • Control elements: Level control, power switch, encoder, menu, sync button
  • Connections: Input: antenna via 2 x BNC (F), Output: microphone via 1 x 3-pin XLR (M) mounting version, Output: microphone via 1 x 6.3 mm plug (unbal.)
  • Equalizer: Graphic equalizer 7-band
  • Material: Metal
  • Housing design: Desktop console housing, (19) 48.3 cm rack installation possible 1 U
  • Mounting depth: 21 cm
  • Dimensions: Width: 20.5 cm, Depth: 21 cm, Height: 4.4 cm
  • Power supply: 3V DC 130 mA
  • Capsule type: Dynamic, Size: Ø 25.4 mm
  • Polar pattern: Cardioid
  • Battery: 2 x Mignon (AA) (not included)
  • Frequency range: 50 - 16000 Hz
  • Sensitivity: -54 dB
  • Impedance: 600 Ohm
  • RF power output: 10 mW (HI); 5 mW (LO)
  • Housing color: Black
  • Display type: Multicolor LCD display
  • Display: Frequency , charge status indicator , Mute , RF signal level
  • Switch: On/off/mute switch
  • Material: Metal
  • Dimensions: Length: 25.9 cm, Diameter: Ø 4.95 cm
  • Weight: 0.350 kg
