Rondson BE-1080-2


€677.00
Tax included

Radio microphone system consisting of 8 handheld transmitters and an 8-channel UHF receiver, transmission power is less than 10 mW, frequency range 607.1 to 687.1 MHz


Out of Stock

Free shipping


wishlist

Rondson BE-1080-2

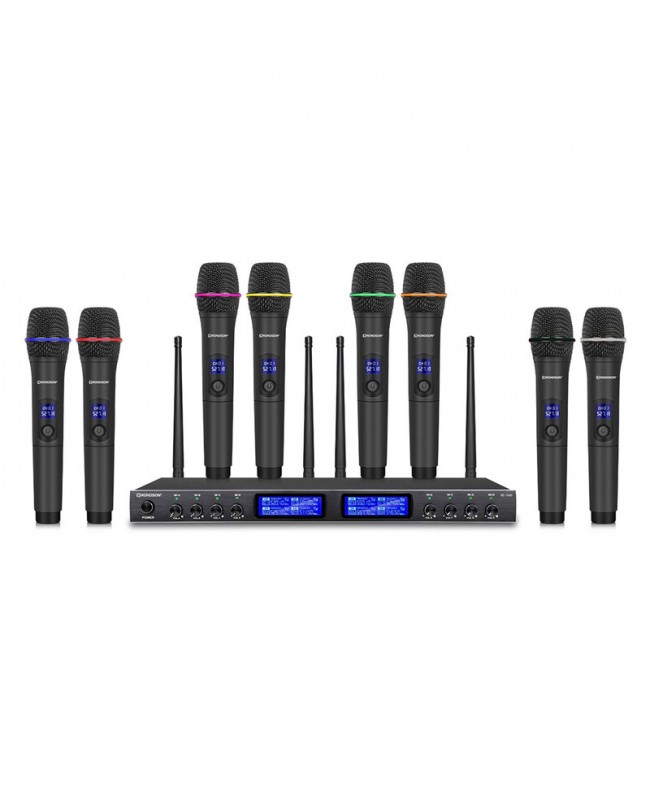

This Rondson BE-1080 wireless microphone system is a professional UHF solution designed for vocal applications, stage performances and other professional audio uses.

It consists of 8 handheld transmitters and an 8-channel receiver with automatic PLL frequency synthesis reception system, which guarantees optimal reception and frequency stability of less than +-10 ppm, and an infrared synchronization function between transmitters and receiver.

The system includes a double LCD display on the receiver for viewing all information and an anti-interference system that allows the simultaneous use of multiple sets, with a maximum range of 50 meters.

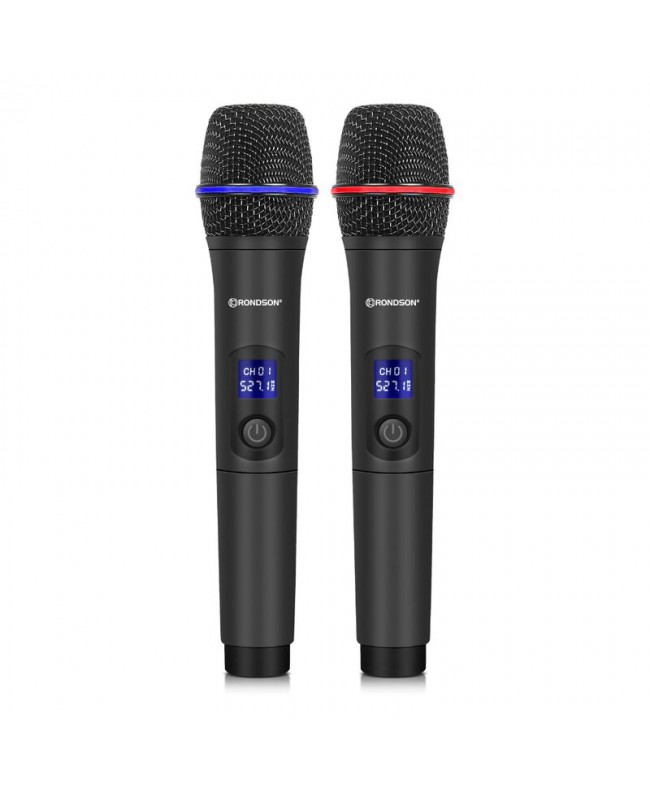

FM modulation ensures a deviation of 22 k. Hz, while the transmission power is less than 10 m. W. Each microphone is powered by two AA batteries, offering an autonomy of approximately 5 hours of continuous use.

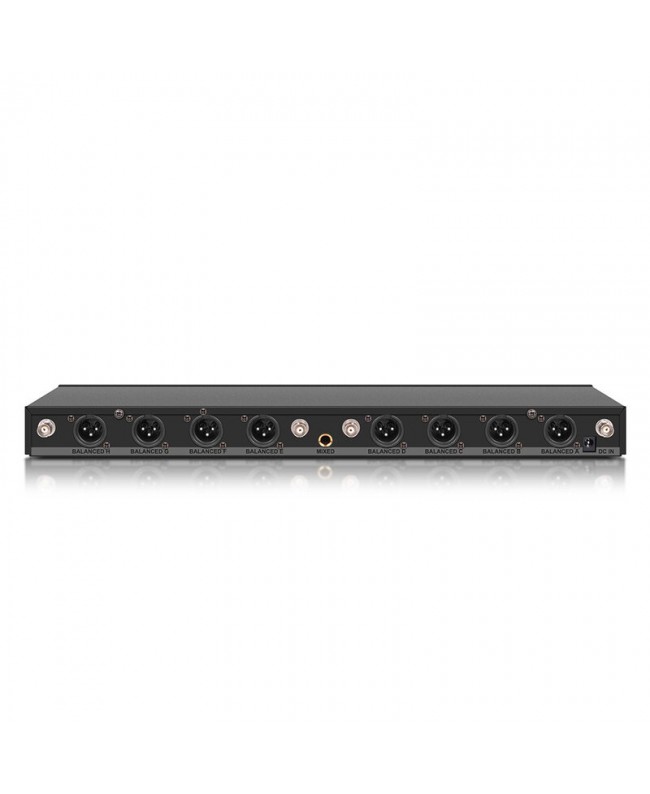

The receiver is in standard 19 and #34; rack format and has 8 balanced XLR outputs and #43; an unbalanced jack for the mixed signal. There are also 4 BNC connectors for connecting as many antennas.

Technical characteristics

  • Frequency range: 607.1 to 687.1 MHz

Synthesized PLL

  • Frequency stability: +10 ppm
  • Image interference rate: 50 dB
  • SNR: 70 dB
  • Sensitivity: - 80 dBuV
  • Total harmonic distortion: 0.5%
  • Bandwidth: 80 Hz - 15 kHz (+- 3 dB)

Output

  • Impedance: 600 ohm
  • Audio output level: 400 mV, balanced / unbalanced
  • Display: LCD
  • Audio output: 8 balanced XLR, 1 unbalanced jack
  • Antenna socket: 4 x BNC

Power

  • Power supply: 12 VDC - 1000 mA
  • Consumption: 5 W

Dimensions and weight

  • Dimensions (W x H x D): 48 x 4.6 x 18.5 cm
  • Rack-mountable: brackets Included
  • Total weight (receiver + handheld microphones): 2.75 kg

Integrated LCD display

  • Batteries: 2 x AA / 1.5 V (included)
