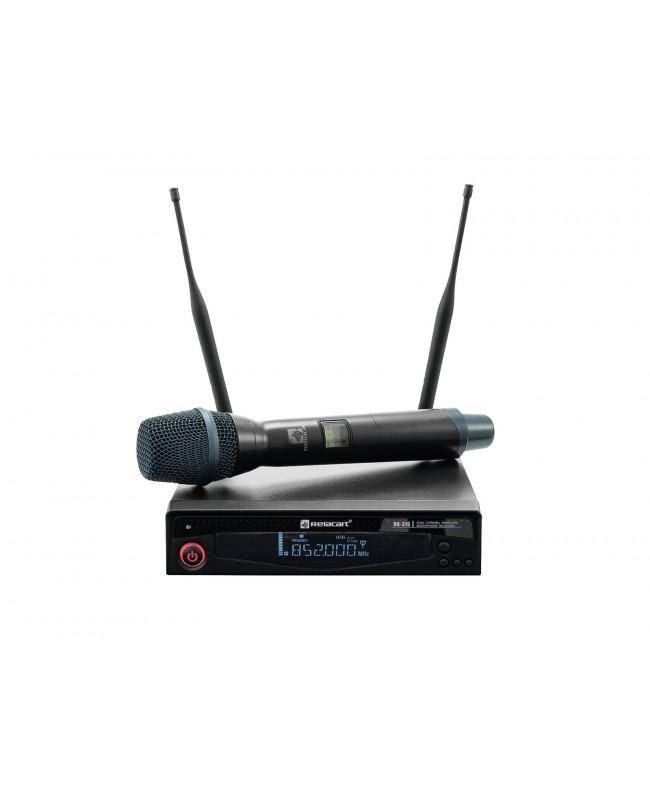

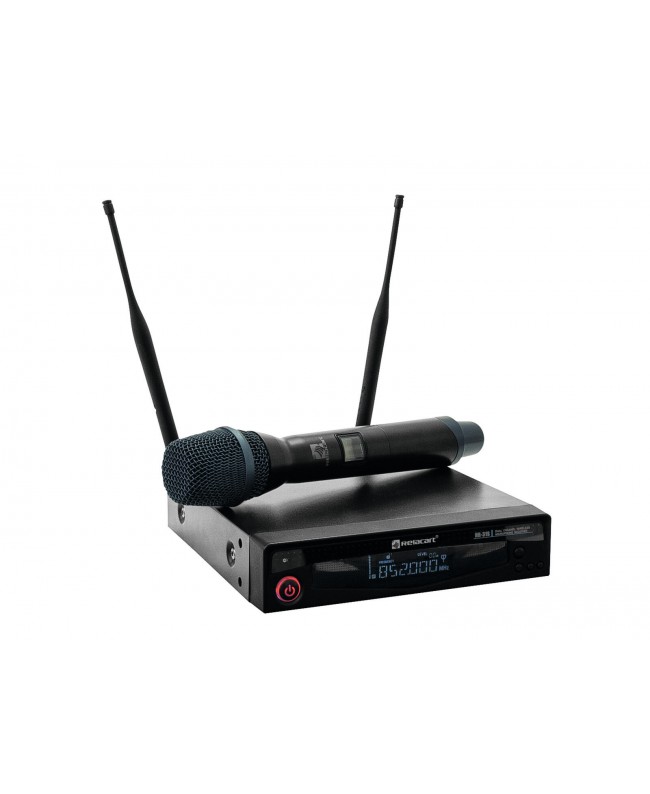

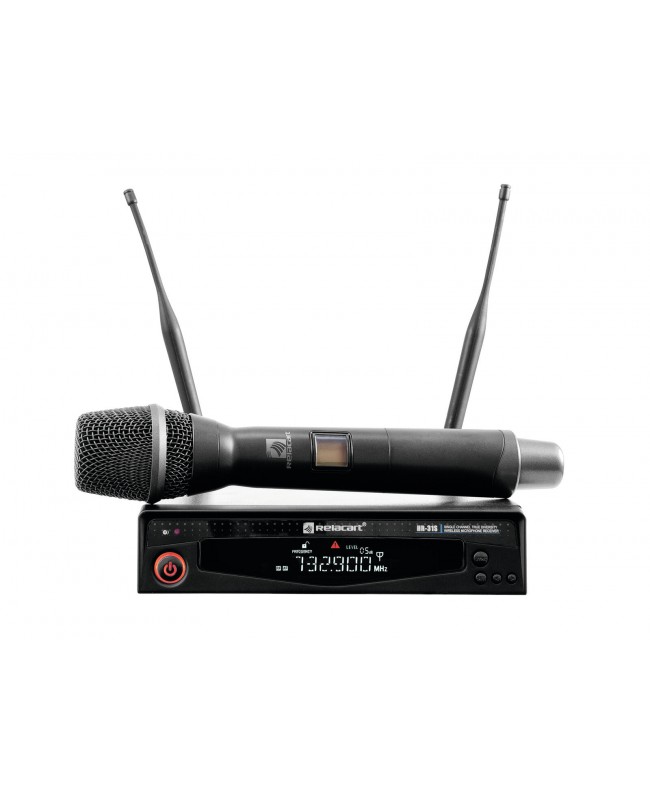

Relacart HR-31S 1-channel True Diversity System

The HR-31S is a premium true diversity system in the UHF spectrum that can fully exploit its strengths, in particular in connection with the RWW software. The transmission takes place either in the professional switchable band 731-790 MHz or in the license-free range 823-832 MHz. The other features also convince: quick setup via infrared andan exceptionally long service life of the transmitter from up to 15 hours on just one set of batteries.

• Receiver and microphone also available separately
• Charge status indicator

RELACART HR-31S 1-channel True Diversity Receiver

True diversity wireless receiver with PC control

• Multifrequency wireless receiver with high-quality true diversity reception
• Real-time monitoring and data management using RWW PC software
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Pilot frequency squelch technology delete wireless RF interference
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal

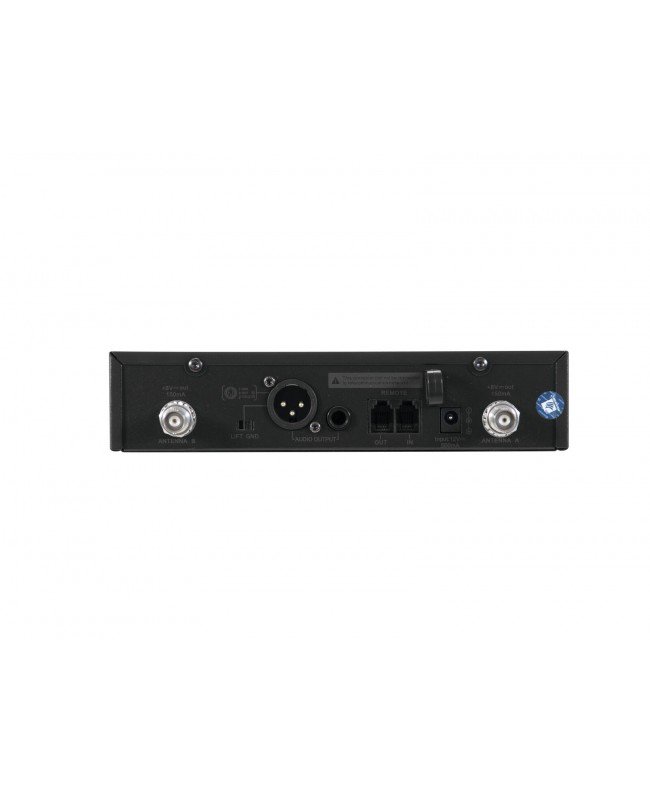

• Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
• Up to 32 units can be linked with network cables
• Lock function for prevents undesired changes to settings
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• (19) 48.3 cm rack installation possible 1 U
• Operating range up to 80m with line-of-sight
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 731 - 790 MHz License-free and approved in large parts of Europe
• Up to 12 transmitters can be operated in parallel without interference
• Multicolor LCD display
• Charge status indicator
• The device can be connected via RJ14 (F) mounting version to the PC in connection with RELACART RWW software and the dongle (optional)
• Desktop console housing

RELACART H-31 Microphone for HR-31S system

Hand-held microphone with PLL multifrequency transmitter

• Dynamic hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• RF output power Hi/Low adjustable
• Gain level Hi/Mid/Low adjustable
• Directly compatible with Shure's SM58 capsule
• Polar pattern: Cardioid
• Operating range up to 80m with line-of-sight
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 731 - 790 MHz License-free and approved in large parts of Europe
• OLED display
• Charge status indicator

Scope of delivery

1 x RELACART HR-31S 1-channel True Diversity Receiver

• 1 x device
• 2 x antenna
• 1 x external mains adapter
• 1 x jack cable
• 1 x user manual
• 1 x declaration of conformity

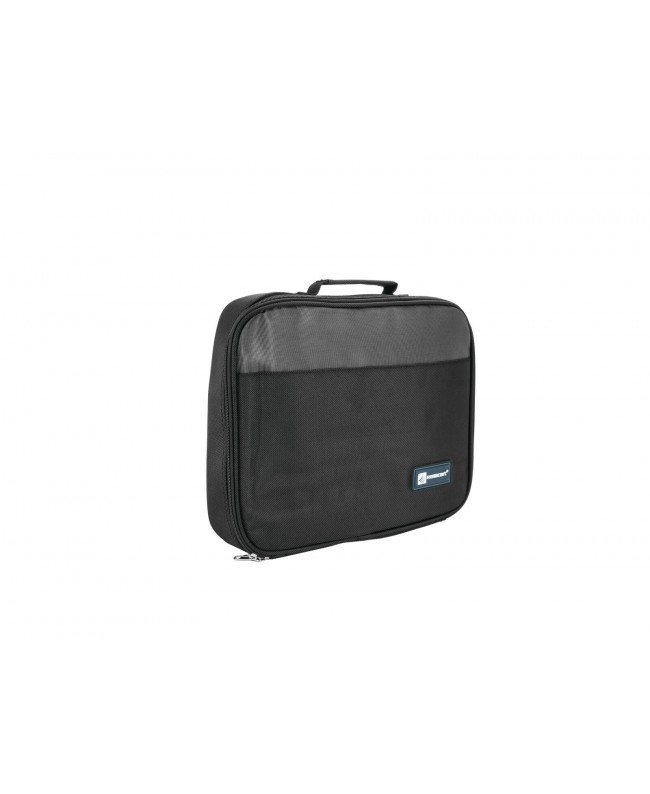

• 1 x bag
• 3 x mounting bracket
• 10 x screw

1 x RELACART H-31 Microphone for HR-31S system

• 1 x microphone
• 1 x user manual
• 1 x declaration of conformity
