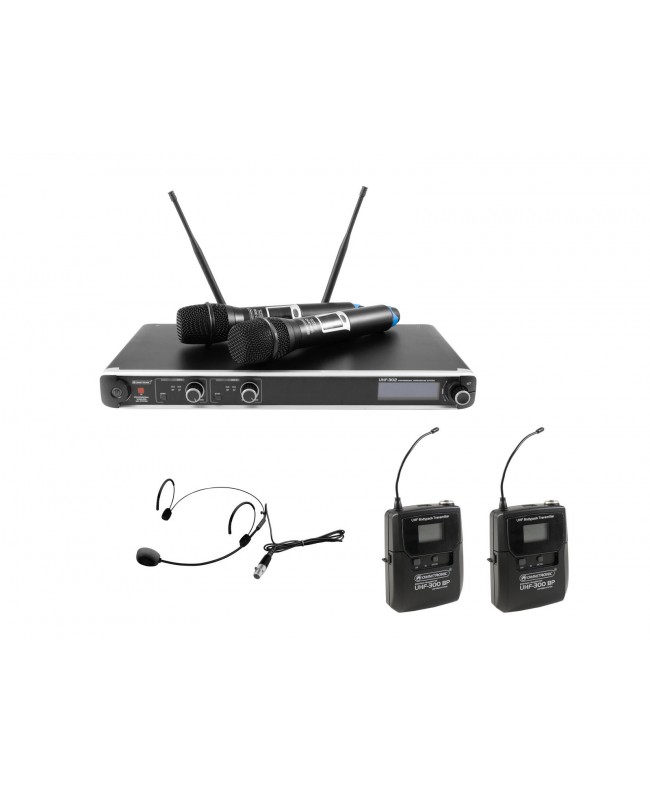

Omnitronic Set UHF-301 Receiver + Headset + 2x Transmitter 823-832/863-865 MHz

Scope of delivery

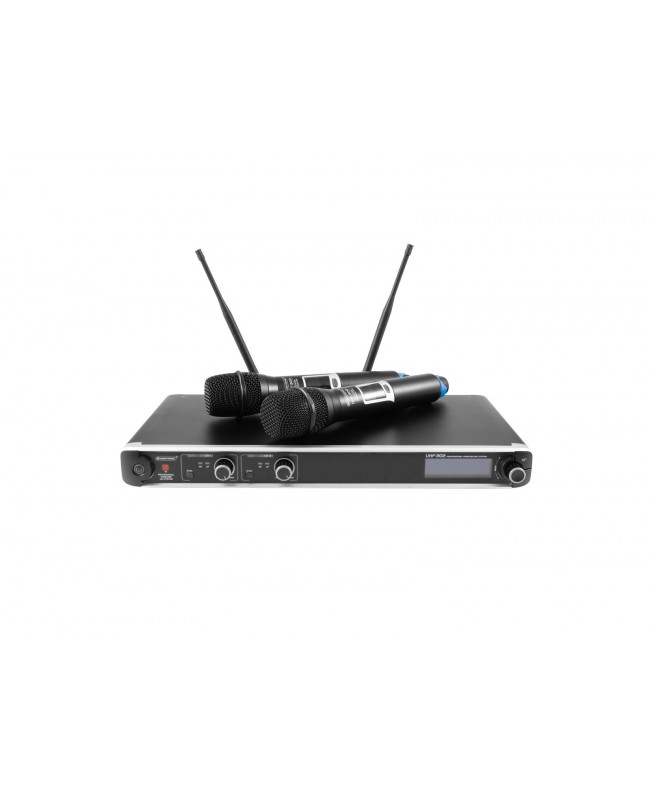

1 x OMNITRONIC UHF-302 2-channel Wireless Mic System 823-832/863-865MHz

• 1 x receiver
• 2 x antenna
• 1 x external mains adapter
• 2 x microphone
• 1 x jack cable
• 2 x holder
• 2 x mounting bracket
• 4 x screw
• 1 x user manual
• 1 x declaration of conformity

1 x OMNITRONIC UHF-300 Headset Microphone black

• 1 x microphone
• 1 x windshield
• 1 x user manual

2 x OMNITRONIC UHF-300 Bodypack 823-832/863-865MHz

• 1 x transmitter
• 1 x user manual
• 1 x declaration of conformity

• Weight: 3.22 kg
• Type: Wireless set
• IP classification: IP20
• Range: Range up to 60m with line-of-sight
• Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
• Frequency stability: +-
• Modulation: FM; PLL technology
• Frequency selection: 93 switchable frequencies
• Weight: 2.30 kg
• Power supply: 100-240 V AC, 50/60 Hz, 14V DC 350 mA
• Power consumption: 4 W
• Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
• Number of channels: 2
• Frequency range: 50 - 18.000 Hz
• S/N ratio: 80 dB
• THD: 0.5 % at 1 kHz
• Display type: LCD display
• Display: Channel , frequency , goup
• Control elements: Power switch, level control, encoder
• Connections: Input: antenna via 2 x BNC (F), Output: line via 1 x 6.3 mm plug (unbal.), Output: microphone via 2 x 3-pin XLR
• Material: Metal
• Housing design: Desktop console housing, (19) 48.3 cm rack installation possible 1 U
• Dimensions: Width: 41 cm, Depth: 23.5 cm, Height: 4.7 cm
• Type: Hand-held transmitter
• Power supply: 3V DC
• Power connection: Battery/battery pack
• Capsule type: Dynamic
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
• RF power output: 10 mW
• Display type: LCD display
• Display: Frequency , charge status indicator
• Switch: On/off switch
• Material: Plastic
• Dimensions: Length: 25 cm, Diameter: Ø 5.2 cm
• Weight: 0.23 kg

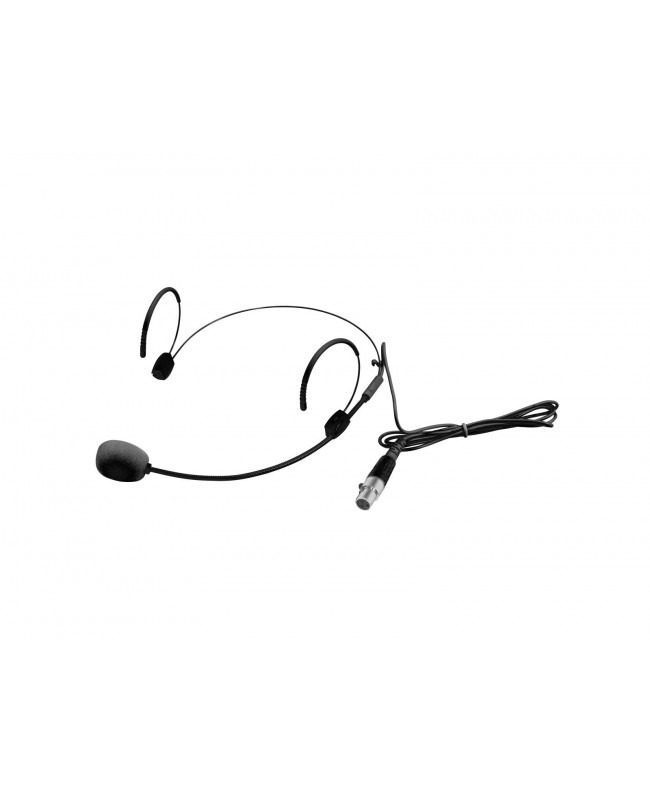

• Type: Headset microphone
• Power supply: 1.5-10V DC
• Power connection: Mains input via Mini XLR (F) 3-pin
• Cable length: 1.00 m
• Capsule type: Condenser
• Polar pattern: Cardioid
• Frequency range: 20 - 20000 Hz
• Sensitivity: -53 dB
• Impedance: 680 Ohm
• Connector type: Mini XLR (F) 3-pin
• Material: Metal
• Color: Black
• Weight: 0.03 kg

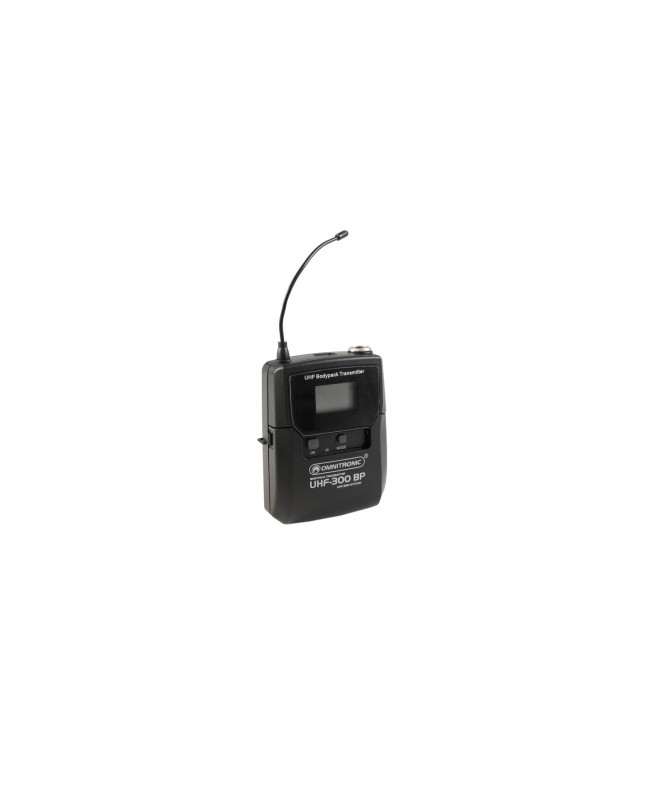

• Type: Pocket transmitter
• Power supply: 3V DC
• Power connection: Battery/battery pack
• Battery: 2 x Mignon (AA) (not included)
• Range: Range up to 60m with line-of-sight
• Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
• RF power output: 10 mW
• Frequency selection: Switchable frequencies
• Connector type: Mini XLR (M) 3-pin mounting version
• Display type: LCD display
• Display: Charge status indicator , frequency
• Switch: On/off switch; mute control
• Material: Plastic
• Color: Black
• Dimensions: Width: 6 cm, Depth: 2.3 cm, Height: 8.5 cm
• Weight: 0.07 kg
