Relacart Set UR-222S Bodypack with HM-600S Headset

€238.00
Tax included

Multifrequency wireless receiver with high-quality diversity reception

Qty

Available upon request

Free shipping

Compare

wishlist

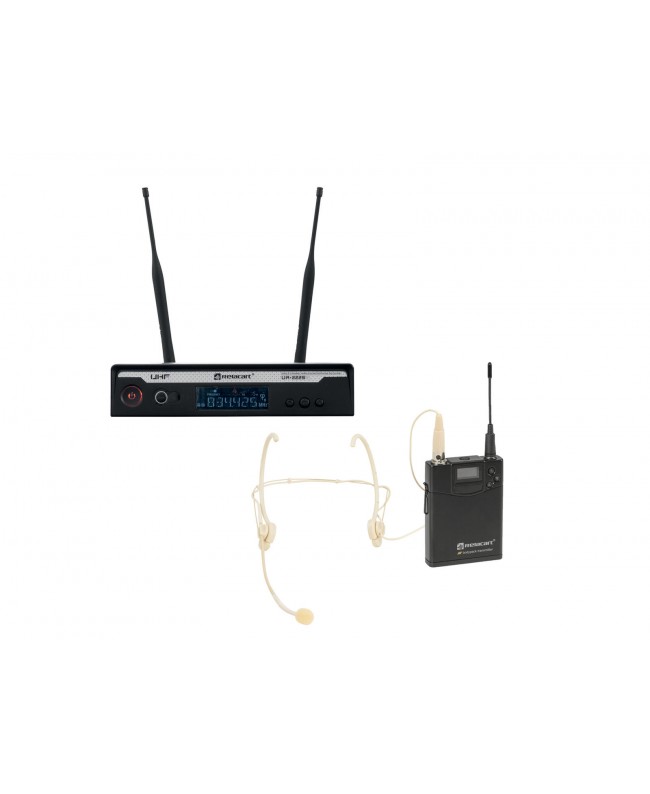

Relacart Set UR-222S Bodypack with HM-600S Headset

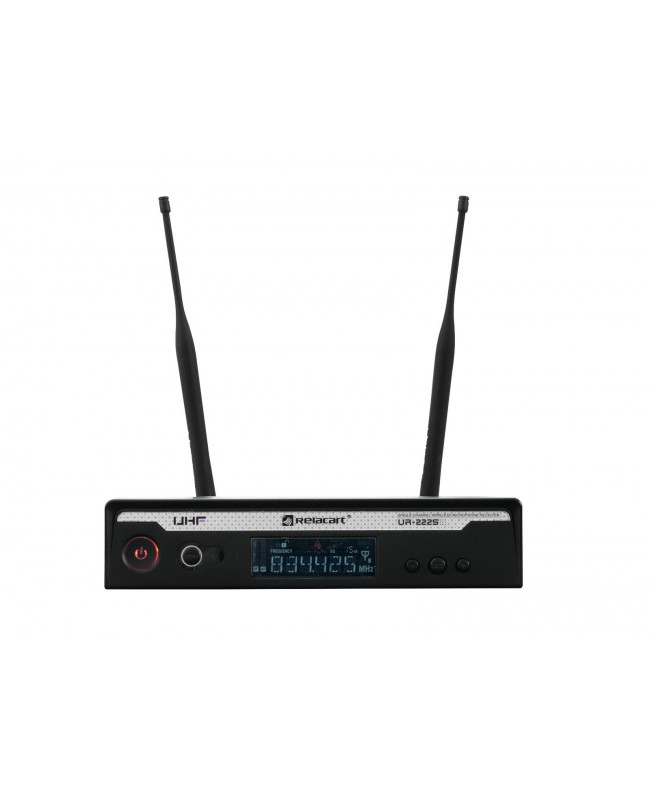

RELACART UR-222S 1-channel UHF Receiver 823-832 + 863-865 MHz

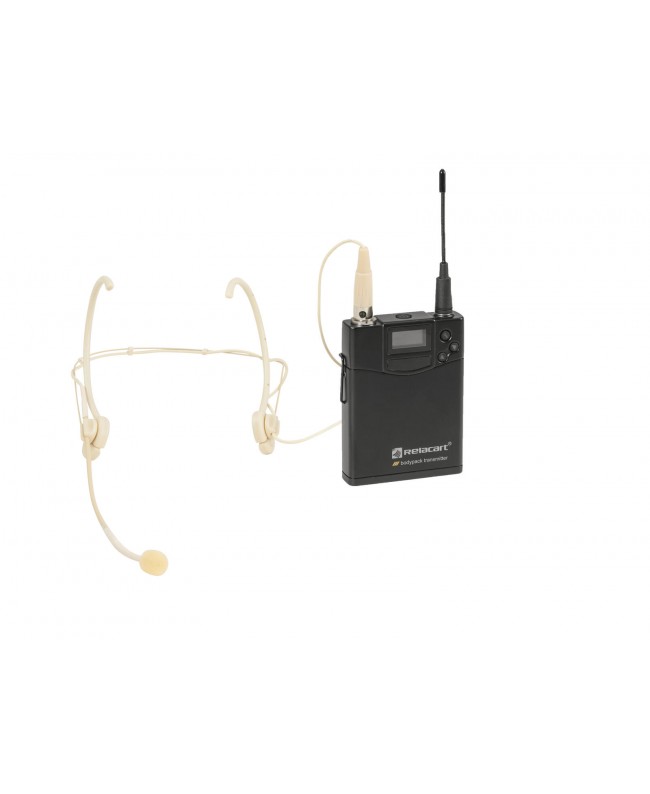

RELACART UT-222 Bodypack with HM-600S Headset

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

transmitter

microphone



Scope of delivery

1 x RELACART UR-222S 1-channel UHF Receiver 823-832 + 863-865 MHz

1 x RELACART UT-222 Bodypack with HM-600S Headset

  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Pilot frequency squelch technology delete wireless RF interference
  • Automatic frequency scan (AFS) finds interference-free channels
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • (19) 48.3 cm rack installation possible 1 U
  • Operating range up to 80m
  • UHF 863 - 865 MHz License-free and approved in Europe
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Up to 9 transmitters can be operated in parallel without interference
  • Multicolor LCD display
  • Charge status indicator
  • Desktop console housing
  • Durable aluminum alloy housing, applicable for touring
  • Pilot frequency squelch technology delete wireless RF interference
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • Adjustable input gain
  • RF output power Hi/Low adjustable
  • Lock function for prevents undesired changes to settings
  • Up to 9 transmitters can be operated in parallel without interference
  • Operating range up to 80m
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • UHF 863 - 865 MHz License-free and approved in Europe
  • OLED display
  • Polar pattern: Omnidirectional
  • For further information about this product, please refer to the Data Sheet under Downloads
  • 1 x receiver
  • 1 x external mains adapter
  • 2 x antenna
  • 1 x jack cable
  • 3 x mounting bracket
  • 8 x screw
  • 1 x user manual
  • 1 x declaration of conformity
  • 1 x bag
  • 1 x transmitter
  • 1 x microphone
  • 1 x windshield
  • 1 x user manual
  • 1 x declaration of conformity
  • Weight: 2.17 kg
  • Type: Receiver
  • Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
  • Power consumption: 3 W
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
  • Number of channels: 1
  • Frequency range: 45 - 18000 Hz
  • S/N ratio: 105 dB
  • THD: 0.7 % at 1 kHz
  • Range: Range up to 80m
  • Frequency band: UHF 863 - 865 MHz; UHF 823 - 832 MHz
  • Diversity: Antenna diversity
  • Switching bandwidth: 11 MHz
  • Frequency stability: +- 0.005 %
  • Parallel mode: Max. 9 transmitter
  • Modulation: FM
  • Frequency selection: 90 switchable frequencies, In 10 groups with up to 10 preset frequencies each
  • Display type: Multicolor LCD display
  • Display: Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency
  • Control elements: Groundlift selector, menu, navigation keys
  • Connections: Antenna via 2 x BNC (F) 8 V, Output: microphone via 1 x 3-pin XLR (M) mounting version, Output: microphone via 1 x 6.3 mm plug (unbal.)
  • Switch: On/off switch
  • Material: Metal
  • Color: Black
  • Housing design: Desktop console housing, (19) 48.3 cm rack installation possible 1 U
  • Dimensions: Width: 20 cm, Depth: 26 cm, Height: 4.4 cm
  • Weight: 1.95 kg
  • Parallel mode: Max. 9 transmitter
  • Weight: 0.21 kg
  • Type: Bodypack with microphone
  • Power supply: 3V DC
  • Power connection: Battery/battery pack
  • Battery: 2 x Mignon (AA) (not included)
  • Gain: 0 dB, -6 dB, -12 dB
  • Range: Range up to 80m
  • Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
  • Switching bandwidth: 11 MHz
  • RF power output: UHF 823 - 832 MHz: 10 mW (LO); 40 mW (HI); UHF 863 - 865 MHz: 5 mW (LO); 10 mW (HI)
  • Modulation: FM
  • Frequency selection: 90 switchable frequencies, In 10 groups with up to 10 preset frequencies each
  • Display type: OLED display
  • Control elements: Transmitter power switch (high-low)
  • Connections: Output: Mini XLR (M) 4-pin mounting version
  • Switch: On/off/mute switch
  • Material: Aluminum
  • Color: Black
  • Dimensions: Width: 6.6 cm, Depth: 2.3 cm, Height: 8.4 cm
  • Weight: 0.174 kg
  • Type: Headset microphone
  • Power supply: 2-10V DC
  • Cable length: 1.2 m
  • Capsule type: Condenser, Size: Ø 5 mm x 6 mm
  • Polar pattern: Omnidirectional
  • Frequency range: 50 - 18000 Hz
  • Sensitivity: -47 dB
  • Impedance: 1800 Ohm
  • Connector type: Mini XLR (F) 4-pin
  • Color: Skin-colored
  • Weight: 0.028 kg
