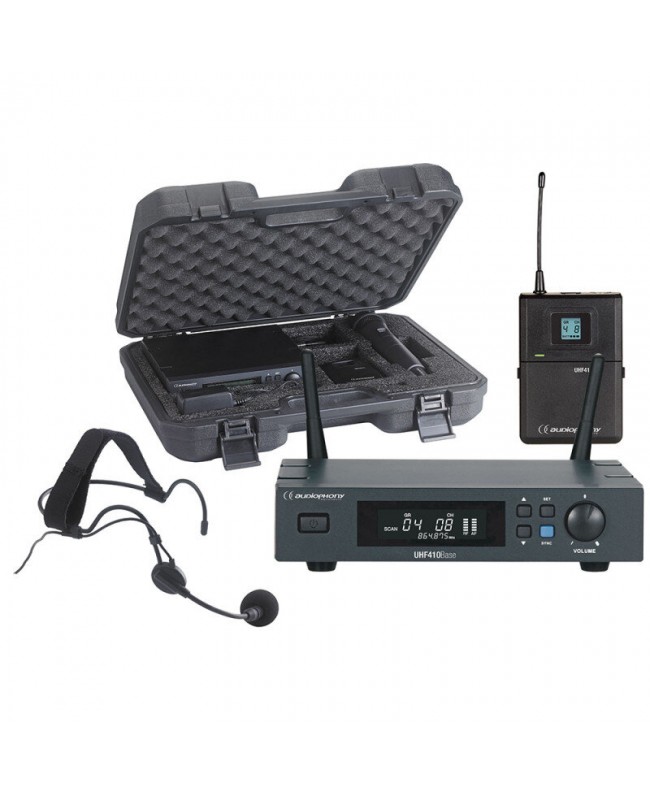

Audiophony PACK-UHF410-Head-F5

True Diversity receiver

• Frequency range: UHF 514 - 564 MHz
• Frequencies: 997 programmed with auto-scan function
• Channel presets: 8 groups, 16 compatible channels in each group
• Channel selection mode: manual, tact switch, auto-scan, sync
• LCD display: frequency, group, channel, RF and AF
• Audio outputs: XLR3-M balanced and 6.35 TS-F jack
• Output levels: line or microphone
• Oscillator: PLL
• Frequency stability: +-0.005%
• Modulation mode: FM
• Frequency response: 80 Hz to 18 kHz
• Volume control: rotary knob
• Squelch adjustment: rear knob
• Power supply: 12 VDC (adapter supplied)
• Current consumption: 260 mA +-10 mA
• Dimensions: 20 x 4.2 x 18.3 cm (rackable 19 in pairs)

Bodypack transimitter

• Frequency ranges: UHF 514 - 564 MHz
• Max power: 35 mW (max.)
• Frequencies: 997, with auto-scan function
• LCD display: channel, battery level
• Mic input: mini XLR3-F
• Gain level: -20 / -10 /0 dB
• Power supply: 2 x AA type 1.5 V batteries (not supplied)

Headworn microphone

• Microphone type: electret condenser
• Sensitivity: -47 +-4 dB
• Directivity: cardioid
• Frequency response: 100 Hz - 10 kHz
• Max current: 10 V
• Standard current: 1.5 V
• Power consumption: 0.5 mA max.
• S/N ratio: more than 60 dB
• Supplied accessory: windshield
