Definitive Audio DA UHF PT 200


€283.00
Tax included

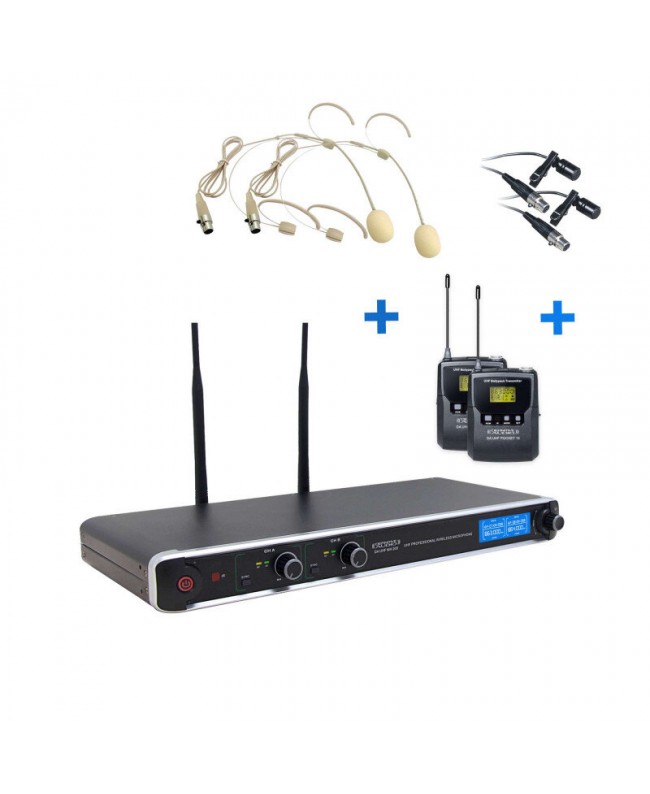

Two channels wireless microphone system: 2 lavalier + 2 headworn + 2 bodypack + 2 CH receiver


Out of Stock

Free shipping


wishlist

Definitive Audio DA UHF PT 200

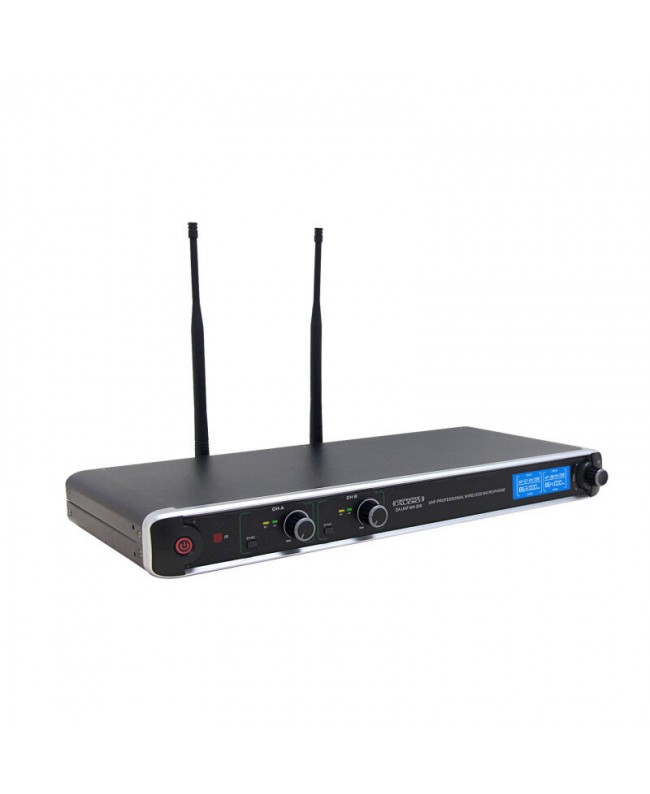

Definitive Audio introduces a new wireless series of headset and lavalier radio microphones: DA UHF PT. The DA UHF PT 200 is a two-channel model while the DA UHF PT 100 is the single-channel model. They are designed for standard 1U racks, with LCD displays and control buttons for management and necessary settings. PLL wireless technology allows simple and efficient use in all circumstances.

The remarkable quality construction does not preclude an extraordinary quality/price ratio. The DA UHF MH series will bring you quality, audio performance, clear and precise sound.

  • Main features
  • UHF band, PLL Phase Locked Loop circuit, stable characteristics, low harmonic radiation
  • Up to 50 MHz bandwidth for up to 2000 frequencies (depending on region)
  • Frequency group design, multiple preset groups are compatible with the frequency in use
  • 2 Separate antennas with metal frame for better reception
  • Frequency band: 630 - 668 MHz
  • Large LCD type screen

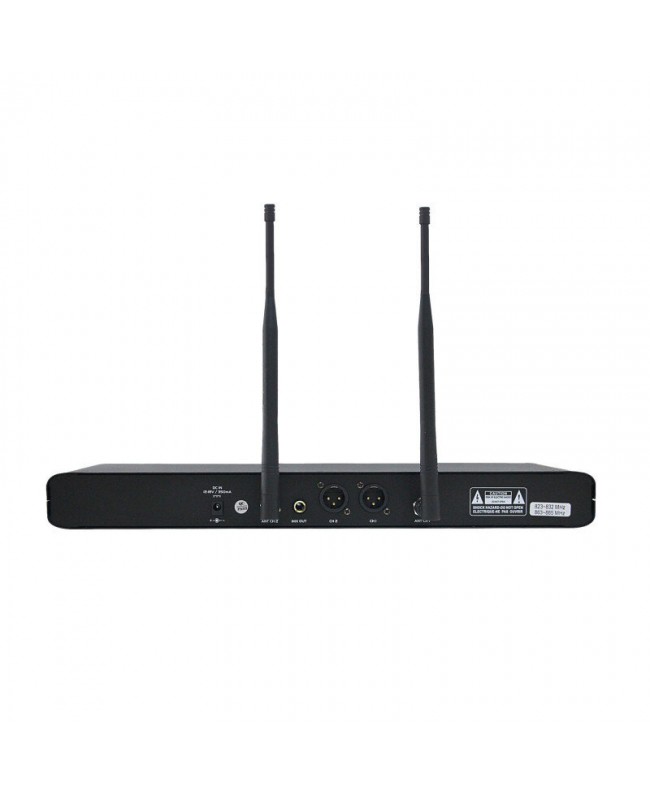

  • Balanced independent XLR outputs
  • Balanced jack mix out and nbsp;
  • ACT function: wireless synchronization of the transmitter via infrared interface
  • Frequency response: flat from 50 Hz to 16 k. Hz
  • 1U chassis with rack mount kit

Dual channel

  • Oscillation mode: PLL Phase Locked Loop frequency synthesis
  • Modulation mode: FM
  • RF sensitivity: 6 dB V, S/N 80 dB
  • Working range: 60 m as the crow flies. Caution: real range depends on RF signal absorption, reflections and interferences and the aboutment in which the microphone is used
  • Silent control mode: audio code and noise lock
  • Frequency response: 50 Hz - 18 kHz (+-3 dB)
  • THD: 0.5% at 1 kHz
  • Panel display: LCD + LED
  • Dimensions (mm): 420 (W) x 44 (H) x 181 (D)
  • Weight: 1.6 kg

Can be used with transmitter

  • Sensor gain: adjustable gain
  • Transmitting power: up to 30 mW, depending on region
  • Current consumption: 130 mA

LCD type screen

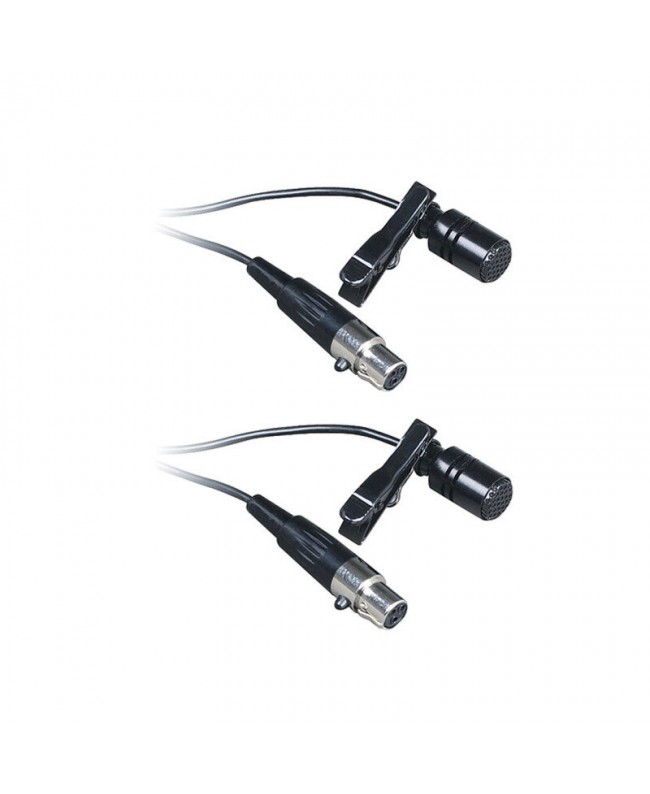

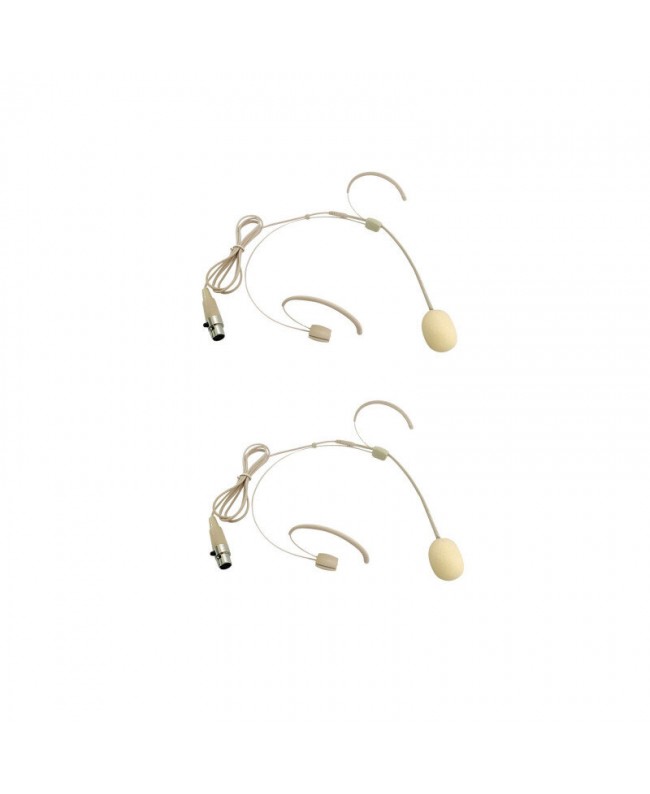

  • Type of microphone included: lavalier and headset
