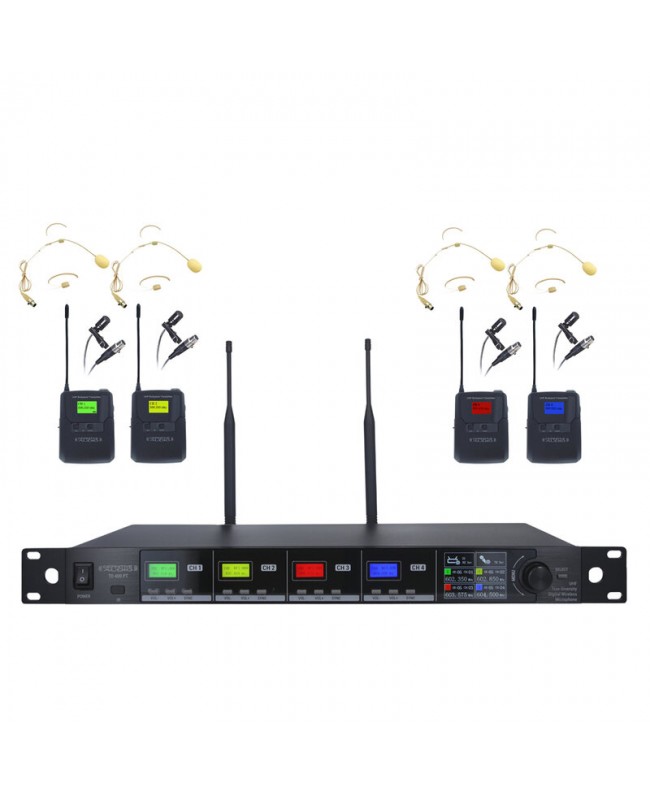

The TD 400 PT is a UHF microphone system featuring four bodypack transmitters with matching headband and lavalier microphones and a four-channel True Diversity receiver, designed to ensure stable and reliable reception even in challenging RF conditions.

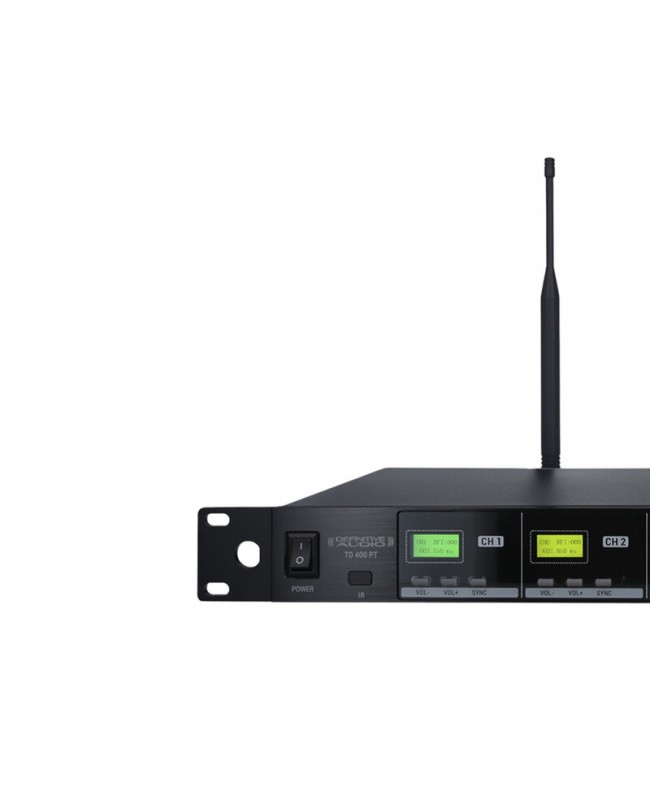

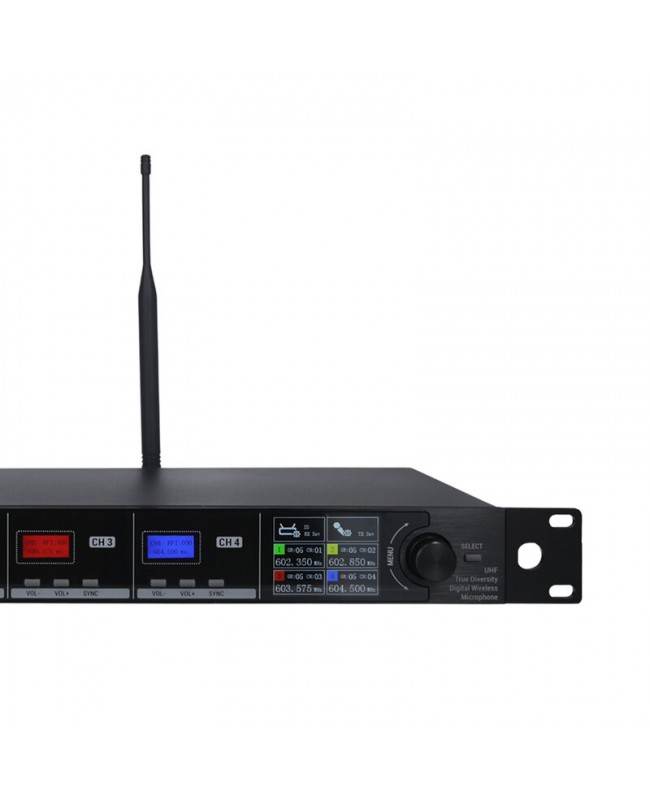

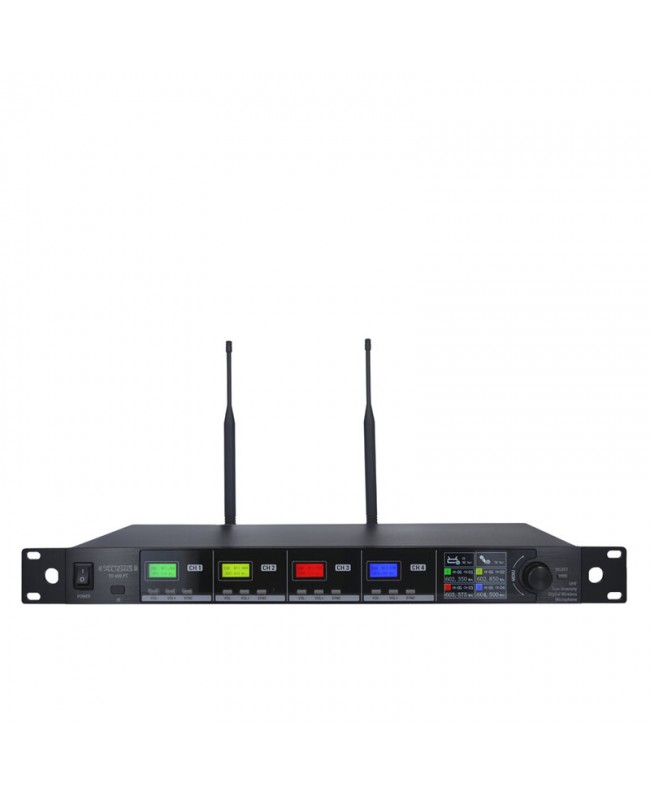

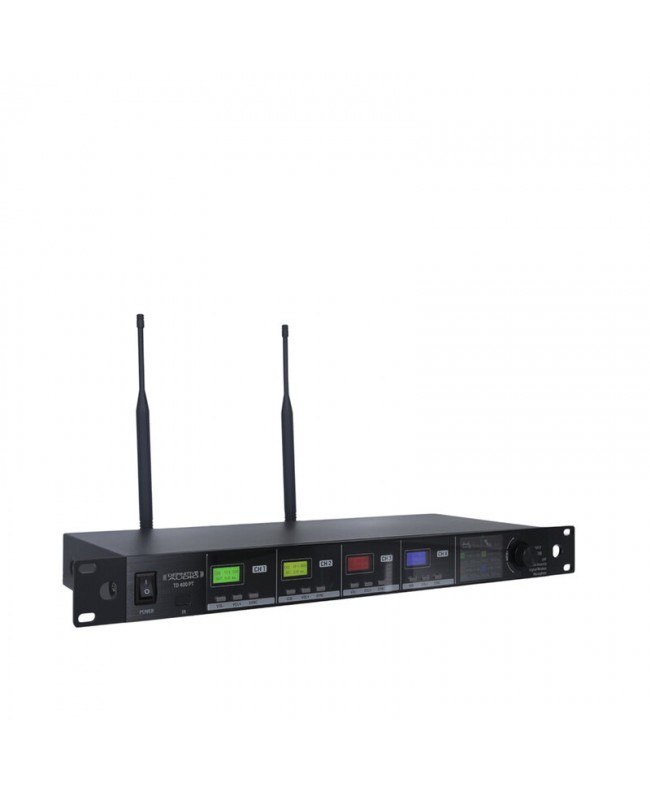

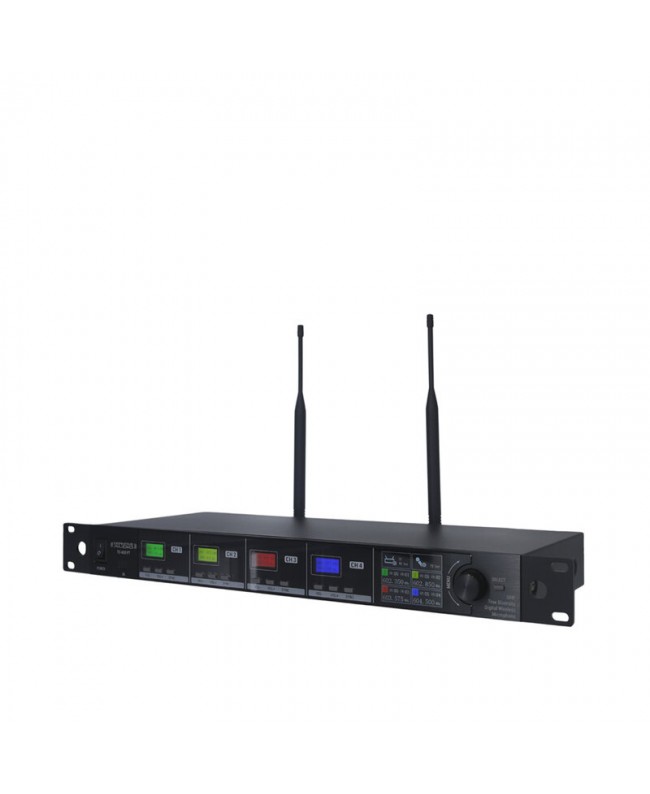

The 1U receiver features four color LCD displays and dedicated controls for parameter management, allowing for simple and immediate use even in professional settings. The system uses a PLL circuit to ensure frequency stability and reliable operation in any situation.
High build quality combines with a competitive price/performance ratio.
User benefits
Stable reception thanks to True Diversity technology
Audio quality even in congested radio environments
7-Band equalization to optimize voice performance
Four color LCD displays for instant parameter management
Quick synchronization via infrared ACT function
Areas of use
Live events
Conferences and corporate meeting
Places of worship
Theaters, auditoriums, and multipurpose rooms
Service
Rental companies
Technical characteristics
Bodypack transmitters
Oscillation mode: PLL phase locked loop frequency synthesis
Gain: adjustable
Transmission power: up to 30 mW (depending on region)
Current consumption: 130 mA
Display: color LCD
Microphone type included: lavalier and headworn
Microphone capsule: cardioid
Receiver
Reception channel: four channels
Oscillation mode: PLL phase locked loop frequency synthesis
Modulation mode: FM modulation
RF sensitivity: input 6 dBμV, S/N 80 dB
Working range: 60 m linear distance (actual range depends on RF absorption, reflection and interference)
Silent control mode: audio code and noise lock
Frequency response: 50 Hz - 18 kHz (+- 3 dB)
THD: 0.5% at 1 kHz
Panel display: LCD + LED
Dimensions (receiver): 48.3 x 4.6 x 16.2 cm
Weight: 4.10 kg
System features
UHF frequency range: 580 - 608 MHz
Equalization: 7-band adjustable EQ
Max. transmission power: 13 dBm (depending on region)
Antenna distribution system: integrated, reduces mutual radiation interference
Frequency group design: multiple predefined groups compatible with usage frequencies
Tuning bandwidth: up to 50 MHz for up to 2000 switchable frequencies (depending on region)
Displays: 4 color LCD screens
Sub-display background color: adjustable, transmitter display color can match receiver
Main and sub-channels: 1 main control + 4 sub-channels with color LCD
Rack format: 1U half-rack
Rack ears: included
Antenna bases: 2
Antenna type: 2 separate antennas for improved reception

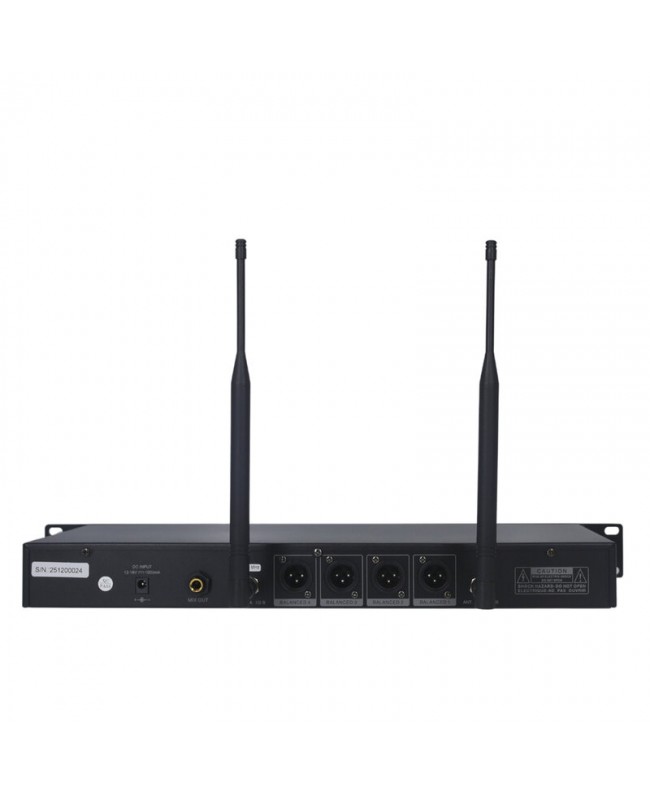

Outputs: 4 balanced XLR output
Mix output: balanced jack Mix Out
ACT function: wireless transmitter synchronization via infrared interface
Frequency response: 50 Hz - 16 kHz (flat response)
