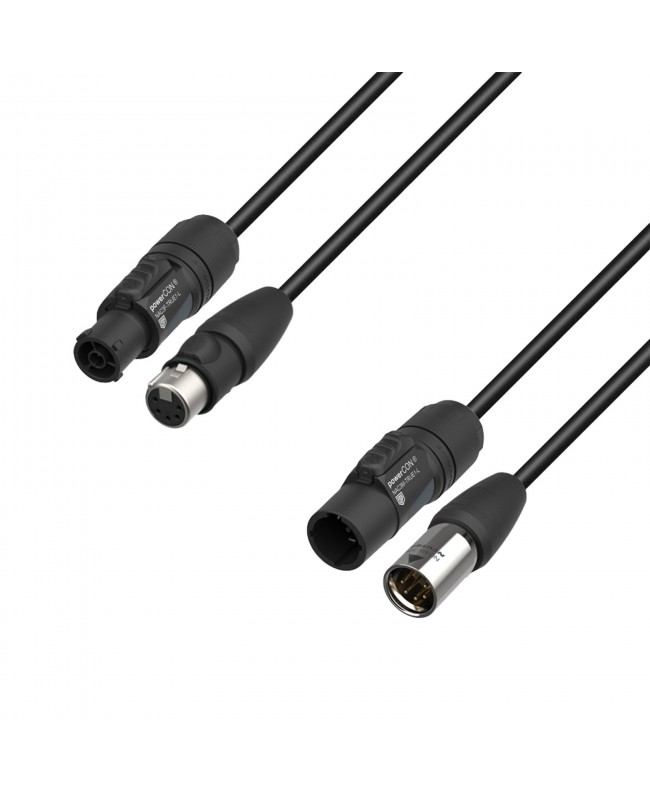

Adam Hall Cables 5 STAR H TCON 5D 1000 IP65
  • -40%
  • New

Adam Hall Cables 5 STAR H TCON 5D 1000 IP65


€218.00
€132.00 -40%
Tax included
Lowest price within the last 30 days: €132.00

Hybrid Cable | Power and DMX | Neutrik XLR 5-pole IP65 x TRUE1 | 10 m


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 12/08/2026? Order within 12 hours and 39 minutes

Free shipping


wishlist

Adam Hall Cables 5 STAR H TCON 5D 1000 IP65



Elevate your lighting setup with our cutting-edge Hybrid DMX and Power cable from our 5 STAR SERIES. Designed for professional lighting engineers, this versatile cable allows for simultaneous transmission of DMX signals and power, streamlining your rig and ensures a seamless performance.

Efficient and clutter free setups require this smart cable, which is perfect for connecting two Cameo OTOS H5 f.e. Fitted with original Neutrik premium connectors, renowned for their durability and superior signal transmission values, minimizing signal loss and power drop.

Whether you are setting up for a concert, theater production, or any event requiring sophisticated lighting control, our Hybrid DMX and Power transmission cable is the ultimate solution for efficiency and reliability. Trust in its European craftmanship and quality to keep your show running smoothly.

  • This Hybrid Cable from our 5 STAR SERIES is manufactured in the EU
  • For this cable we only use original Neutrik connectors. For a long-life plugging-cycle and superior transmission quality we use the IP rated XLR plugs for the DMX line and the power will be provided by the NeutrikTRUE1 connectors
  • The XLR connectors such as the TRUE1 connectors are IP65 rated. The TRUE1 is pluggable under load. Furthermore, they are compliant to the highest standards
  • The line with 0.34 mm² DMX and 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables crew in Germany and is made in the EU
  • It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
  • The product comes with a cable tie and two transparent, loose heat-shrinks for labeling
  • Cable length: 10 m
  • Split end length: 40 cm
  • Cable jacket: PVC (Polyvinyl chloride)
  • Cable diameter: 17 mm
  • Cable colour: Black
  • Connector type plug 1: XLR 5-pole female
  • Model name plug 1: Neutrik NC5FX-TOP
  • Contact material plug 1: Silver plated
  • Connector type plug 2: XLR 5-pole male
  • Model name plug 2: Neutrik NC5MX-TOP
  • Contact material plug 2: Silver plated
  • Conductor material: OFC (Oxygen-free copper)
  • Conductor cross-section: 2 x 0,34 mm²
  • AWG: 22
  • Capacity/m: 55 pF
  • Conductor impedance/km: 85 Ohm
  • Wave impedance: 120 Ω
  • Shielding: Braided copper shielding
  • Cable jacket: PVC (Polyvinyl chloride)
  • Cable diameter: 5 mm
  • Plug type connector 1: Mains plug device outdoor female and TRUE1
  • Model name connector 1: Neutrik NAC3F-TRUE1
  • Plug type connector 2: Mains plug device outdoor male and TRUE1
  • Model name connector 2: Neutrik NAC3M-TRUE1
  • Conductor material: OFC (Oxygen-free copper)
  • Conductor cross-section: 3 x 2,5 mm²
  • AWG: 13
  • Cable jacket: PVC (Polyvinyl chloride)
  • Cable diameter: 10 mm
  • Protection class: IP65
  • Ambient temperature: -20 - 70 °C
  • Weight: 1.4 kg

8101PSDP51000NIP65

Data sheet

Length
10.00 m
Miscellaneous
Suitable for outdoor use
