Adam Hall Cables 5 STAR H PCON D 1000
  • -40%
  • New

Adam Hall Cables 5 STAR H PCON D 1000


€164.00
€99.00 -40%
Tax included
Lowest price within the last 30 days: €99.00

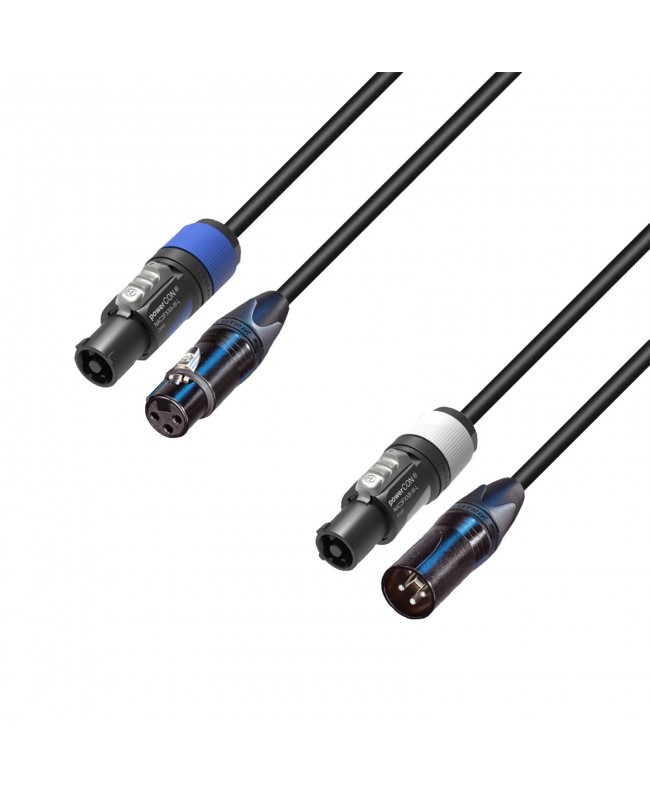

Hybrid Cable | DMX Neutrik 3-pole XLR x powerCON | 10 m


Out of Stock



wishlist

Adam Hall Cables 5 STAR H PCON D 1000



Elevate your lighting setup with our cutting-edge Hybrid DMX and Power cable from our 5 STAR SERIES. Designed for professional lighting engineers, this versatile cable allows for simultaneous transmission of DMX signals and power, streamlining your rig and ensures a seamless performance.

Efficient and clutter free setups require this smart cable, fitted with original Neutrik premium connectors, renowned for their durability and superior signal transmission values, minimizing signal loss and power drop.

Whether you are setting up for a concert, theater production, or any event requiring sophisticated lighting control, our Hybrid DMX and Power transmission cable is the ultimate solution for efficiency and reliability. Trust in its European craftmanship and quality to keep your show running smoothly.

  • This Hybrid Cable for simultaneous transmission of power and DMX signals from our 5 STAR SERIES is manufactured in the EU
  • For this cable we only use original Neutrik connectors. For a long-life plugging-cycle and superior transmission quality we use XLR with silver-plated contacts for the DMX line, and the power line will be provided by the Neutrik powerCON connectors
  • The powerCON plugs are pluggable under load, and therefore compliant to the highest standards for the event industry
  • The line with 0.22 mm² DMX and 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables crew in Germany
  • It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
  • The product comes with a velcro cable tie and two transparent, loose heat-shrinks for labeling
  • Cable length: 10 m
  • Split end length: 40 cm
  • Cable jacket: PVC (Polyvinyl chloride)
  • Cable diameter: 17 mm
  • Cable colour: Black
  • Connector type plug 1: XLR 3-pole female
  • Model name plug 1: Neutrik NC3FXX-BAG
  • Contact material plug 1: Silver plated
  • Connector type plug 2: XLR 3-pole male
  • Model name plug 2: Neutrik NC3MXX-BAG
  • Contact material plug 2: Silver plated
  • Conductor material: OFC (Oxygen-free copper)
  • Conductor cross-section: 2 x 0,22 mm²
  • AWG: 24
  • Capacity/m: 55 pF
  • Conductor impedance/km: 85 Ohm
  • Wave impedance: 110 Ω
  • Shielding: Spiral copper shielding
  • Cable jacket: PVC (Polyvinyl chloride)
  • Cable diameter: 5 mm
  • Plug type connector 1: Mains plug indoor power in female and powerCON
  • Model name connector 1: Neutrik NAC3FXXA-W-L
  • Plug type connector 2: Mains plug indoor power out female and powerCON
  • Model name connector 2: Neutrik NAC3FXXB-W-L
  • Conductor material: OFC (Oxygen-free copper)
  • Conductor cross-section: 3 x 2,5 mm²
  • AWG: 13
  • Cable jacket: PVC (Polyvinyl chloride)
  • Cable diameter: 10 mm
  • Weight: 3.01 kg

K5HPCOND1000
