DAP FP06 - Schuko/XLR M - powerCON/XLR F - DMX / Power - 10 m Hybrid Cables Power & DMX Signal

DAP FP06 - Schuko/XLR M - powerCON/XLR F - DMX / Power - 10 m

€52.50
Tax included

10 m, Blue jacket

Qty

In Stock

Delivery

Do You want Your order by Thursday, 04/12/2025? Order within 4 hours and 25 minutes

Compare

wishlist

DAP FP06 - Schuko/XLR M - powerCON/XLR F - DMX / Power - 10 m

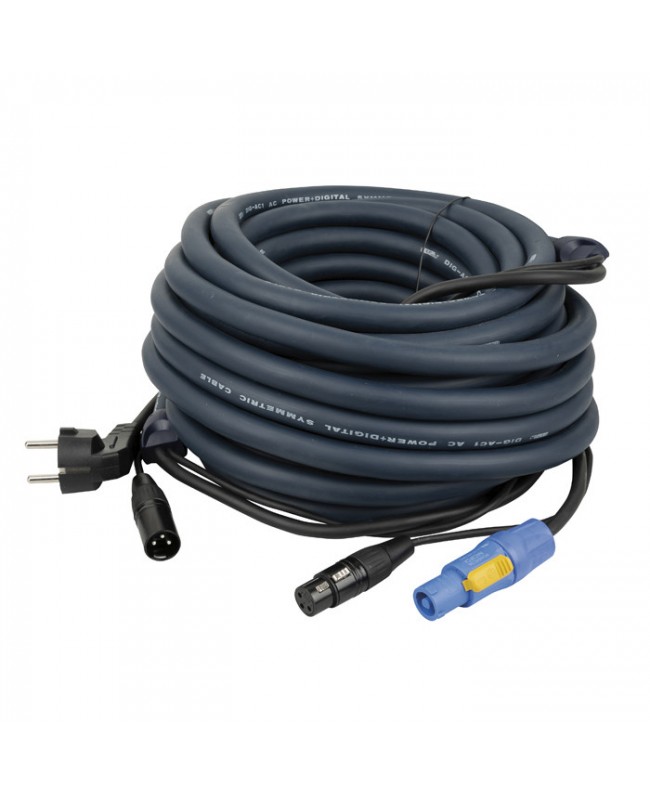

Blue power/DMX cable with male and female 3P XLR connector, male schuko connector and Neutrik powerCON.

  • Electrical Specifications and Connections
  • Flashover Voltage 30 V
  • Impedance 110 Ω
  • Connector 1 Schuko Plug
  • Connector 2 powerCON Blue
  • DMX Connector in XLR 3P
  • DMX Connector out XLR 3P
  • Cable Length 10 m
  • Pins 6
  • Conductor Resistance 80 Ω/km
  • Conductor Capacitance 60 pF/m
  • Capacity Inner conduct. Shield/Inner conduct. 78 pF/m
  • Outer Cable Diameter 15 mm
  • Outer Isolation Type PVC
  • Mechanical Specifications
  • Weight 2.72 kg
  • IP Rating IP20 (indoor use only)
  • Material PVC
  • Colour Blue
  • Product Properties
  • Contact Type Copper
  • 1st Shield Twisted
  • Shield Resistance 30 Ω/km
  • Filler Material Paper
  • Conductors 6
  • Thermal Specifications
  • Maximum Ambient Temperature 60 °C
  • Minimum Ambient Temperature -20 °C

FP0610

Data sheet

Length
10.00 m
