DAP Cavo Hybrid FP18 - PowerCON & 5-pin XLR - 10 m Hybrid Cables Power & DMX Signal
  • New

DAP Cavo Hybrid FP18 - PowerCON & 5-pin XLR - 10 m

€73.00
Tax included

10 m

Qty

In Stock

Delivery

Do You want Your order by Thursday, 26/02/2026? Order within 6 hours and 25 minutes

Compare

wishlist

DAP Cavo Hybrid FP18 - PowerCON & 5-pin XLR - 10 m

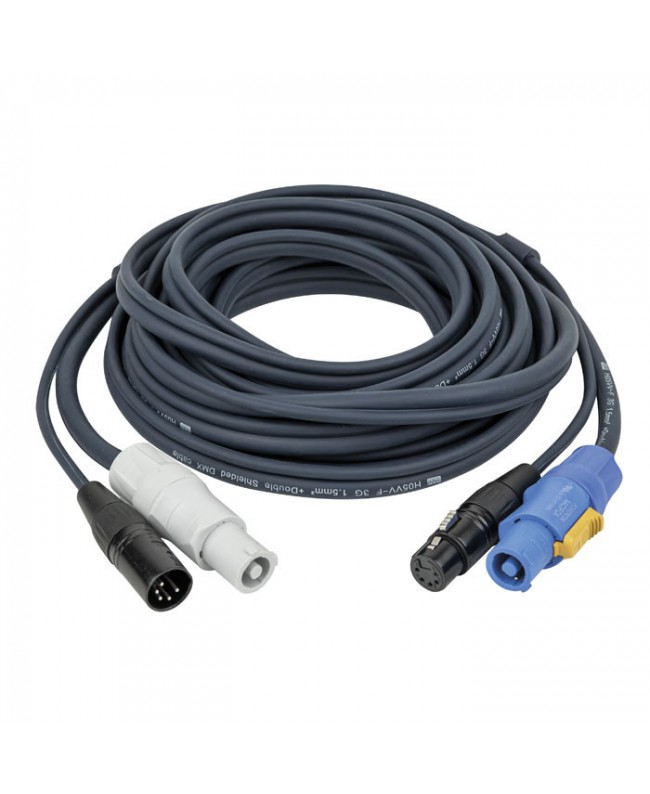

The DAP FP18 is a two-in-one cable for attaching your lighting fixtures to both your DMX control and the main power supply. It has both a powerCON (male/female) and a 5-pin XLR cable connector (male/female).

The FP18 is called a hybrid cable because it has a double connection. One for power and the other for DMX communication. Please note that they cannot be connected and disconnected under load.

This hybrid powerCON cable is available in sizes 0.75 m, 1.5 m, 3 m, 6 m and 10 m.

  • 2-In-1 combi cable
  • Suitable for lighting fixtures
  • 5-Pin XLR connectors
  • PowerCON connectors
  • Available in different lengths
  • Electrical Specifications and Connections
  • Rated Current (A) 16 A
  • Flashover Voltage 30 V
  • Impedance 110 Ω
  • Connector 1 powerCON Blue
  • Connector 2 powerCON Grey
  • DMX Connector in XLR 5P
  • DMX Connector out XLR 5P
  • Brand Connector 1 Neutrik
  • Cable Length Pins 3
  • Outer Cable Diameter 11 mm
  • Outer Isolation Type PVC
  • Mechanical Specifications
  • Weight 0.227 kg
  • IP Rating IP20 (indoor use only)
  • Material Copper
  • Colour Blue
  • Product Properties
  • Contact Type Silver plated
  • Filler Material Cotton, Paper
  • Conductors 6

93004

Data sheet

Length
10.00 m
Giorni di elaborazione
3
