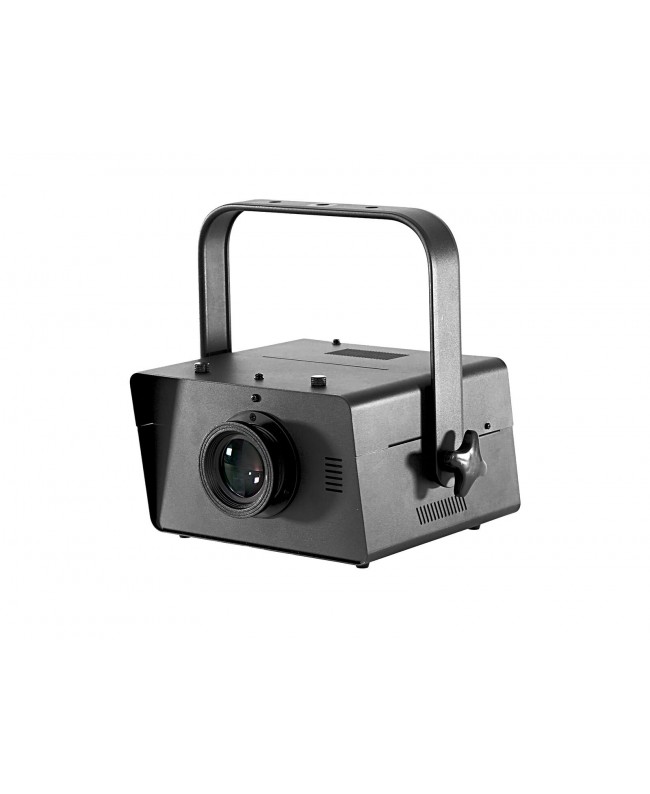

EUROLITE LED EVO-120 QCL Multi Effect Projector Image Projectors
  • -23%

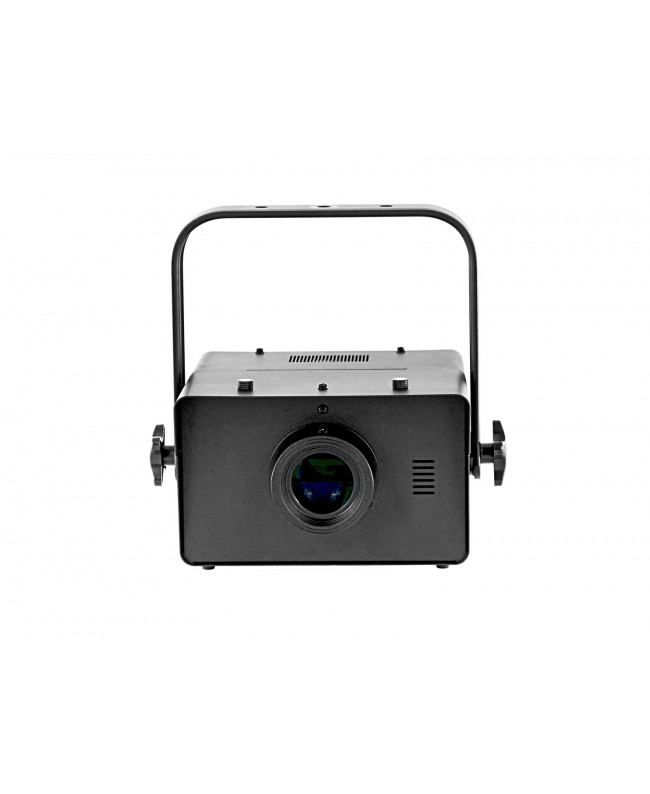

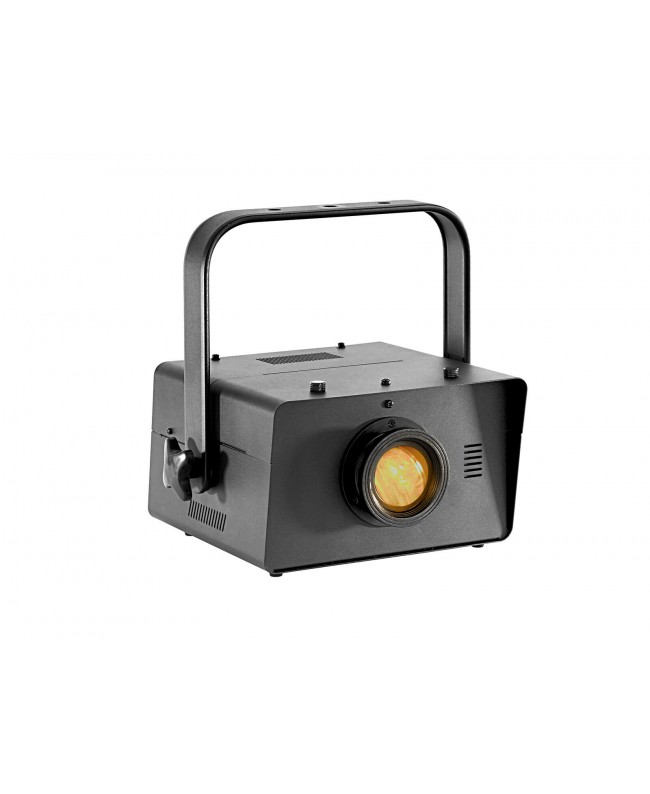

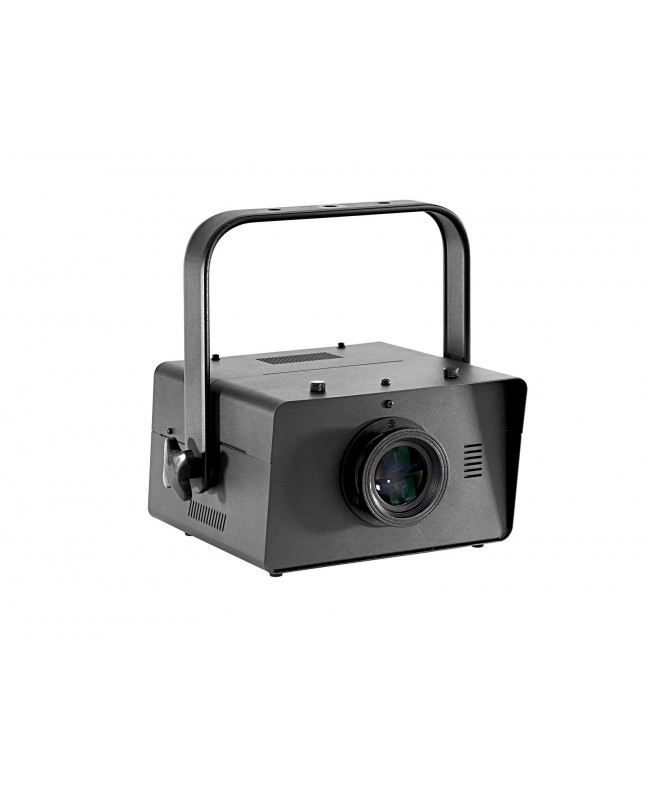

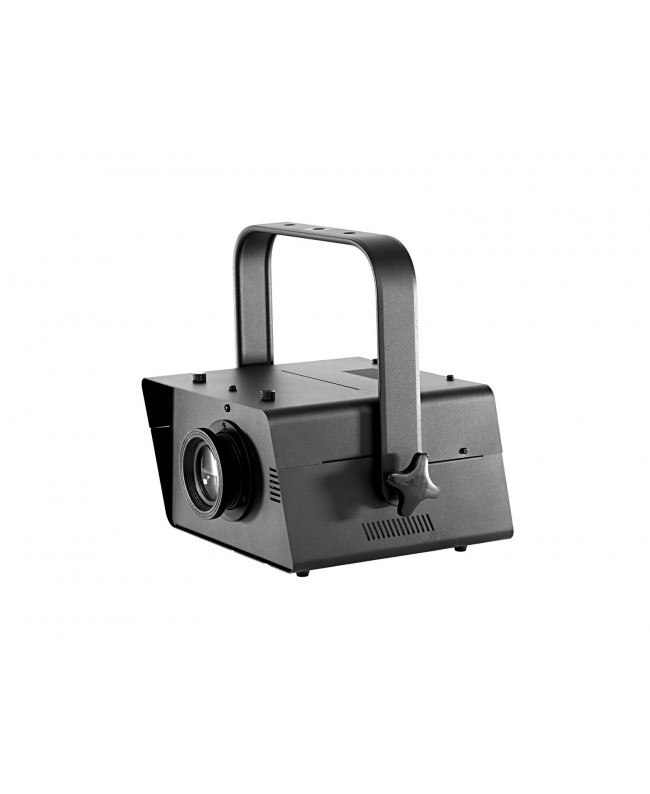

EUROLITE LED EVO-120 QCL Multi Effect Projector

€486.00
€375.00 -23%
Tax included
Lowest price within the last 30 days: €375.00

Innovative projection effect with magnetically interchangeable effect wheels

Qty

In Stock

Delivery

Do You want Your order by Thursday, 25/06/2026? Order within 5 hours and 20 minutes

Free shipping

Compare

wishlist

EUROLITE LED EVO-120 QCL Multi Effect Projector

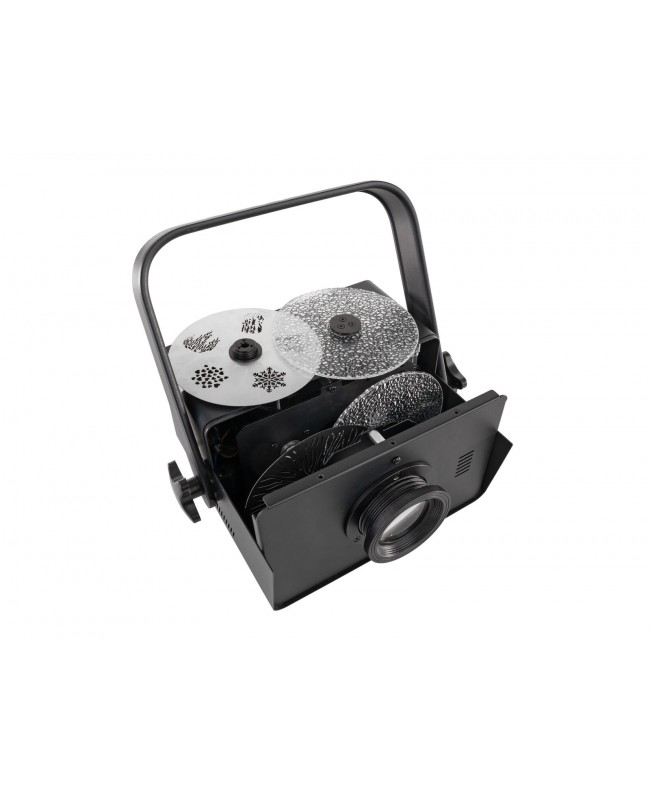

  • 2 structure wheels, 1 animation wheel and 1 gobo wheel with 5 depictions included in the delivery
  • Up to 2 wheels can be easily inserted via magnetic attachment systems
  • Depending on the wheel combination, the sharpness setting and color choice, the effect produced is completely different
  • 1 LED 120 W COB (chip-on-board) 4in1 QCL RGBW
  • Exact 16 bit resolution at Dimmer, color, gobo rotation
  • Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
  • Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response); pulse-width modulation adjustable; Rotation speed adjustable; Rotation direction adjustable; color fade adjustable

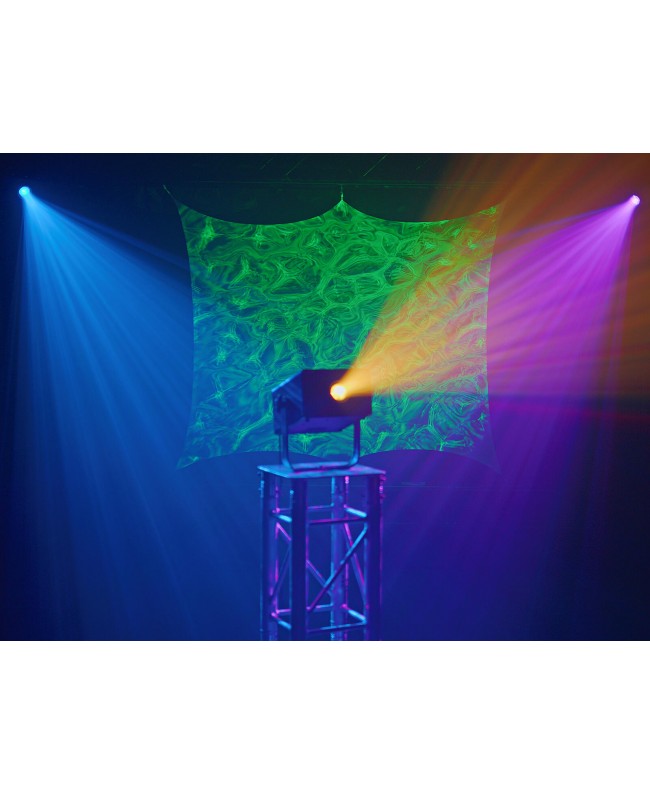

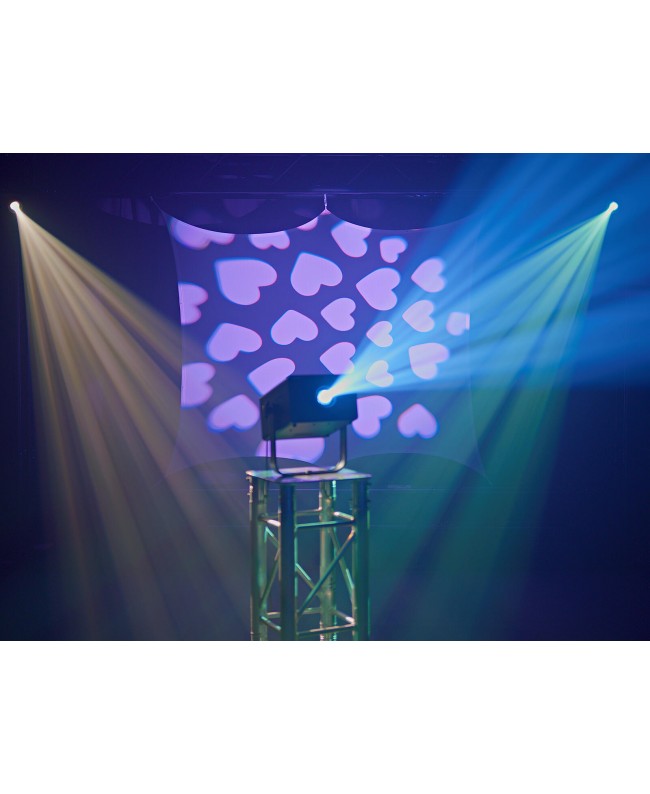

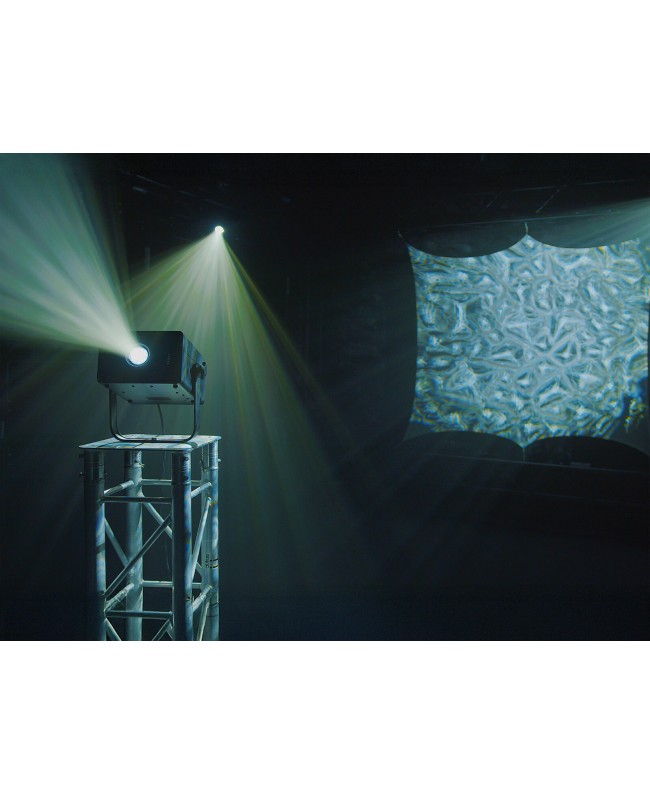

  • Water effect; gobo effect; crystal effect
  • Gobo wheel with static gobos, 5 gobos
  • The device is cooled by temperature-controlled fan
  • Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
  • Flicker-free
  • DMX fail mode (blackout; hold)
  • With a beam angle of 35°
  • With mounting bracket
  • Monochrome OLED display
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
  • Very quiet working noise
  • Application possibility: Suspended; on stand; wall mounting
  • Preprogrammed in Light Captain

Scope of delivery

  • 1 x light effect
  • 1 x power cord
  • 1 x user manual
  • 4 x effect wheel
  • Power supply: : 100-240 V AC, 50/60 Hz
  • Power consumption: : 120 W
  • IP classification: : IP20
  • Protection class: : Protection class I
  • Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug
  • Cable construction: : 3 X 1.5 mm² H05VV-F
  • Power output: : P-Con (gray), mounting version
  • Fuse: : 5 X 20 mm, T 2 A
  • Lamp type: : LED lamp
  • LED type: : 1 X 120 W COB (chip-on-board) 4in1 QCL RGBW
  • Flash rate: : 1 - 37 Hz
  • Equipment: : Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
  • Gobos: : Gobo wheel with static gobos, 5 gobos
  • DMX channels: : 6; 10; 17; 20

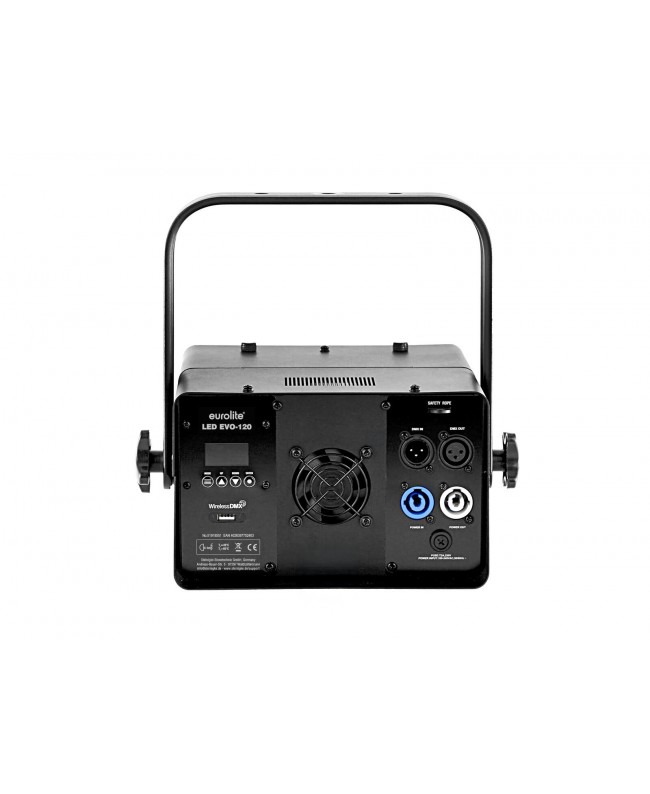

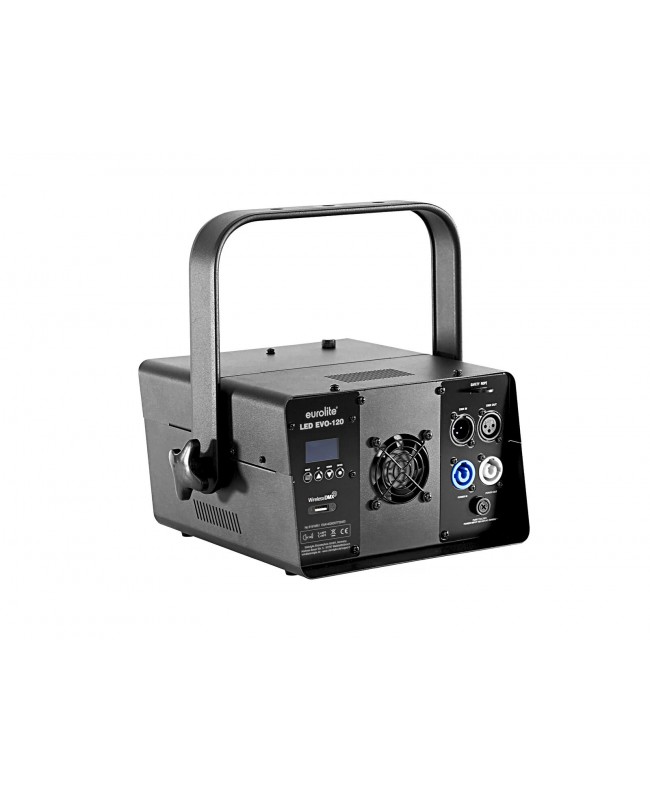

  • DMX input: : 3-Pin XLR (M) mounting version
  • DMX output: : 3-Pin XLR (F) mounting version
  • Cooling: : 1 X temperature-controlled fan
  • Control: : DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
  • Preprogrammed in: : Light Captain
  • Projection: : Flicker-free
  • DMX fail mode: : Blackout; hold
  • Beam angle: : 35°
  • Beam angle (1/2 peak): : 35°
  • Beam angle (1/10 peak): : 35°
  • Housing color: : Black
  • Attachment system: : Mounting bracket
  • Display type: : Monochrome OLED display
  • USB port: : 1 X type A
  • Diameter mounting holes: : 3 X Ø10 mm
  • Use of brands: : Built with SEETRONIC connector
  • Material: : Steel
  • Dimensions: : Length: 25.2 cm
  • Width: 30.0 cm
  • Height: 27.3 cm
  • Weight: : 4.90 Kg
  • Noise classification: : Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used
  • Special product: : Not designed for household room illumination
  • Intended use: : Show effect lighting

51918551

Data sheet

Color
Multi Color
