Audiophony PA MX82 Installation Mixers
  • -22%
  • New

Audiophony PA MX82

€608.00
€473.00 -22%
Tax included
Lowest price within the last 30 days: €473.00

8 IN 2 OUT stereo mixer with priority, remote MIC, 1U rack

Out of Stock

Free shipping

Compare

wishlist

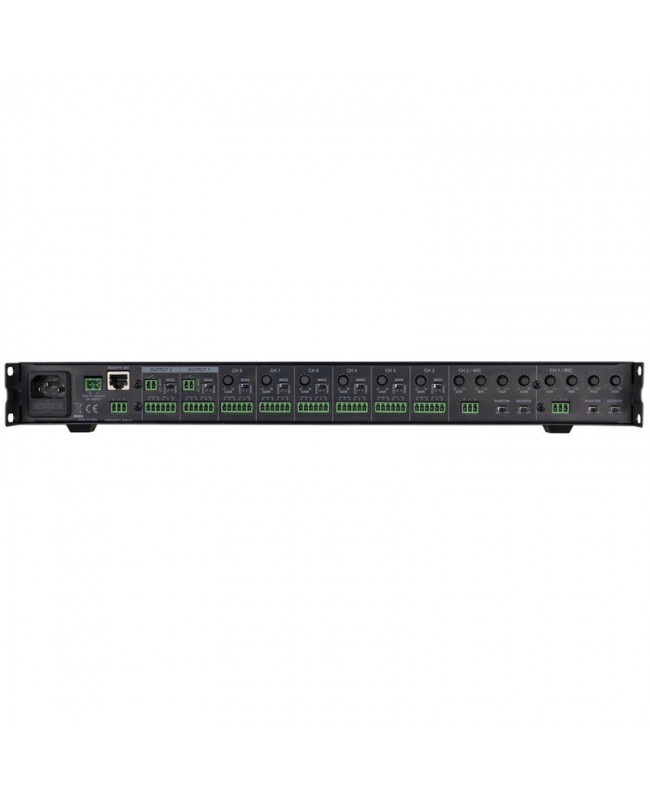

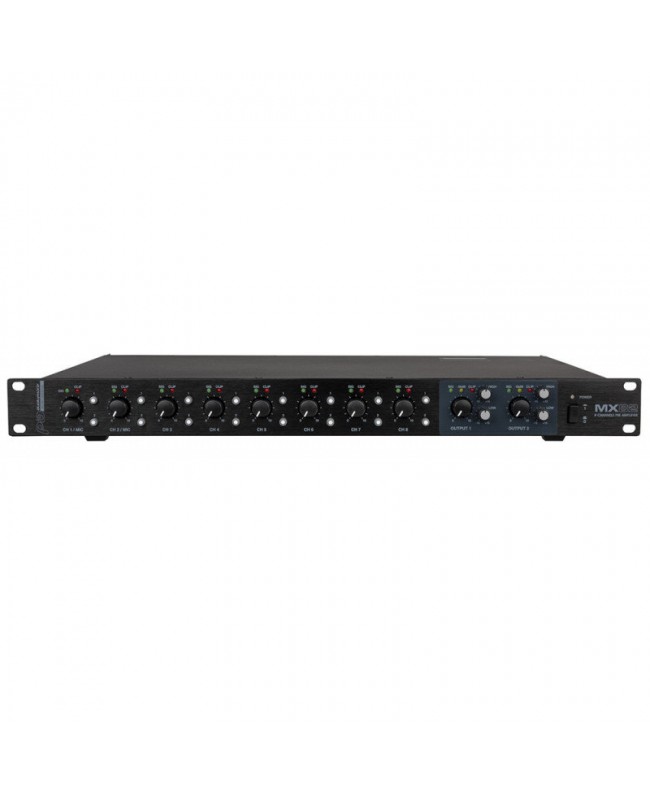

Audiophony PA MX82



Resolutely focused on professional installations, the MIX82 mixer / preamp offers 2 mono MIC / line inputs and 6 stereo inputs.

Each input can be independently routed to one of two zones, or both zones simultaneously, thus offering high verstility. The outputs are provided. With a 2-band equaliser and independent level setting.

  • The unit is compatible. With MIC-DESK4.
  • Technical characteristics
  • Rated output level / impedance: 0 dB / 600 ohm balanced

Input sensivity / impedance

  • Microphone inputs (CH1 - 2): -50 dB - 16 dB / 20 kohm
  • Line input (CH1 - 6): - 20 dB - 4 dB / 20 kohm
  • Frequency response 20 Hz - 20 kHz +-1 dB
  • T.H.D: 0.1%
  • Crosstalk: more than 70 dB

Equalization

  • MIC input: high: 12 kHz +-15 dB / mid: 2.5 kHz +-15 dB / low: 80 Hz +-15 dB
  • Output: high: 10 kHz +-15 dB / low: 100 Hz +-15 dB
  • Hum and Noise: 90 dB
  • Power source: 220 - 240 VAC 50 - 60 Hz or +24 VDC
  • Power consumption: 20 W
  • Dimensions: 48.2 x 4.4 x 32 cm
  • Weight: 9 kg

HIT-H10926
