Rondson PM 10P Installation Mixers
  • -32%

Rondson PM 10P

€835.00
€566.00 -32%
Tax included
Lowest price within the last 30 days: €566.00

10 MIC inputs preamplifier with selectable priorities + 2 AUX, 19 1U

Qty

In Stock

Delivery

Do You want Your order by Friday, 14/08/2026? Order within 10 hours and 24 minutes

Free shipping

Compare

wishlist

Rondson PM 10P



Professional 10-channel preamplifier / mixer with selectable priorities for public address systems.

Its versatility allows for basic use as a preamplifier, but it also accepts the JS-90C microphone station for conferences.

  • Main features

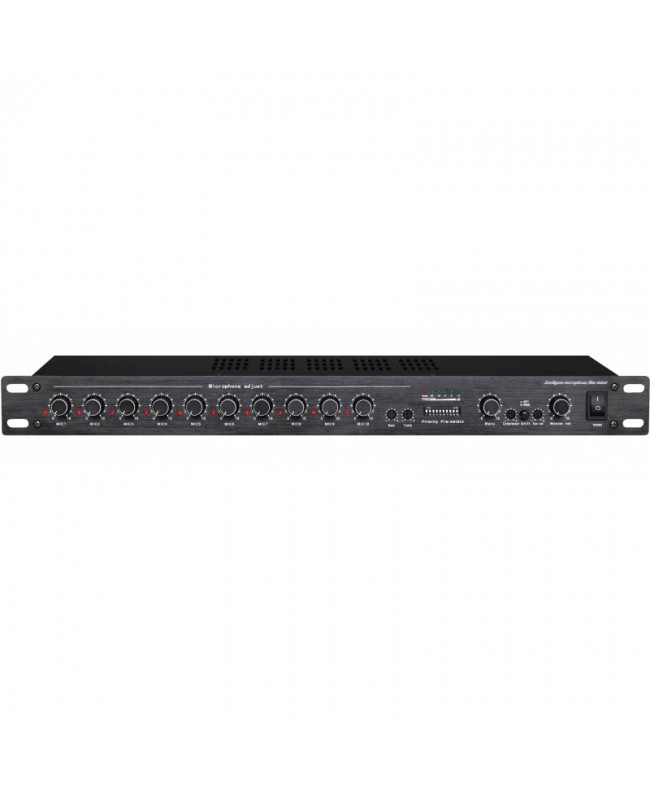

  • Adjustable master volume on the front panel
  • Output level adjustment on the front panel
  • 10 Inputs with individual volume control48 V Phantom power on each MIC input (CH 1 to 10)
  • General Bass / Treble controls
  • SHIFT or BYPASS function
  • Each channel can be configured with voice priority, the other channels will be attenuated by 20 or 40 d. B by means of a dip switch
  • RCA LINK socket - 1 input / 1 output
  • Signal LED
  • RCA AUX IN - 2 IN
  • Balanced MASTER XLR and unbalanced RCA output1 RS-232 socket
  • Technical characteristics
  • Professional pre-amplifier
  • 10 Channels mixer
  • Input sensitivity: MIC -50 dBu 5 kohm, Line 0 dBu 5 kohm, AUX -10 dBu 15 kohm
  • Output sensitivity: +4 dBu
  • Output level: +8 dBu
  • Distortion: and lt0.5%
  • Frequency response: 20 - 20,000 Hz
  • S/N ratio: MIC 75 dB, line 85 dB

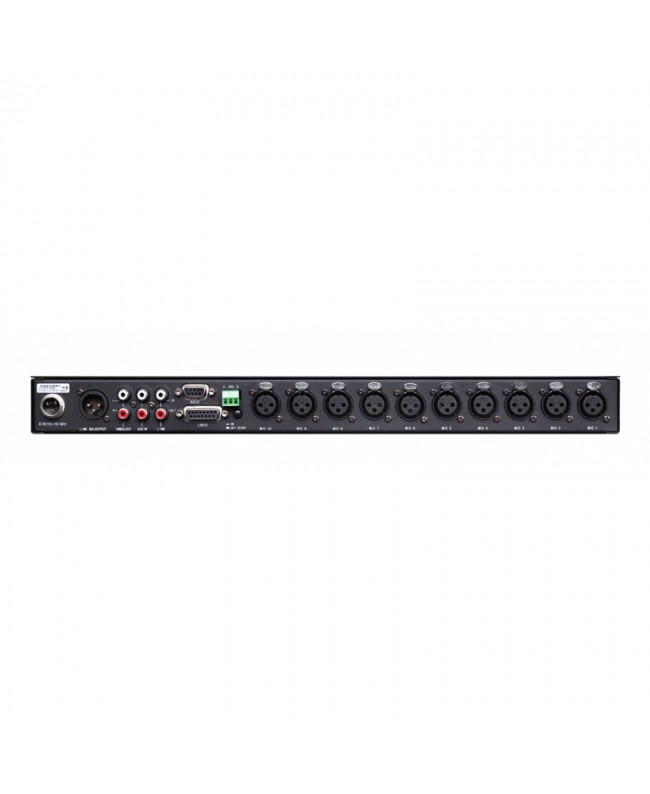

  • Input connectors: 10 x XLR-3F
  • Output connectors: 1 x XLR-3M, 1 x RCA
  • AUX IN/link connectors: RCA
  • RS232 connector: DB9
  • Logic connector: DB15
  • Priority pre-selected: 10 x deep switch
  • Phantom power P 48 V
  • Power supply: 220 VAC 50/60 Hz
  • Consumption: 4.8 W
  • Dimensions: 430 x 221 x 44mm
  • Weight: 3.2 kg

RON-02501
