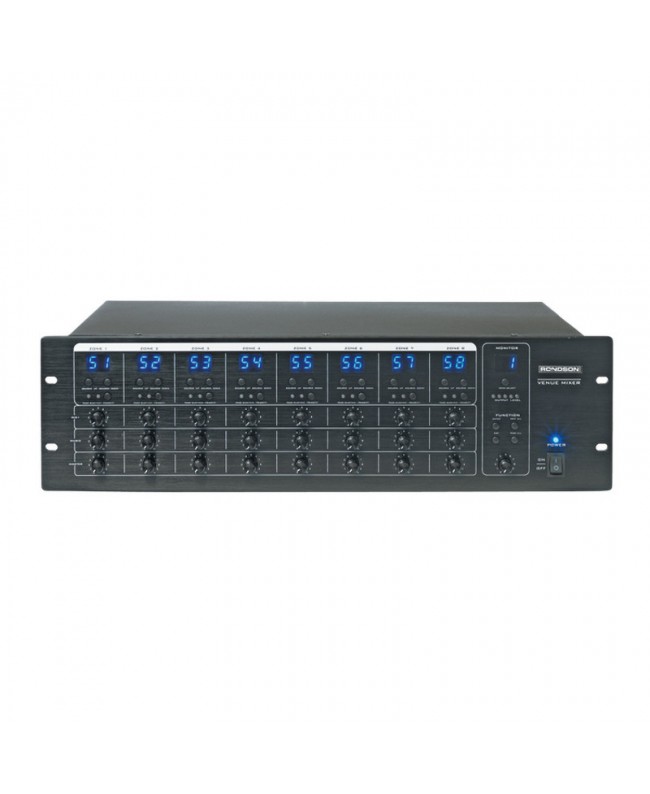

Rondson T-8000

8-Channel analog audio matrix designed for multi-zone calls and multi-source selection system. It offers a complete solution for multi-zone audio systems used in entertainment venues, large hotels, sports centers and gyms, supermarkets and airports, etc. Main features

T-8000 allows direct connection of 8 music audio source inputs, 8 remote control panels, 2 call stations and 1 microphone, and all these inputs can be routed to 8 different output zones simultaneously.

1 To 4 line inputs on RCA only.

LCD digital display of program/local input selection and control selection, LED display for output level monitoring, microphone priority display and operation display

Each channel features individual microphone, audio input and master volume control; each line input and call station is equipped with gain control, the microphone input is also with gain control and bass and treble tone control. A listening volume control is also provided

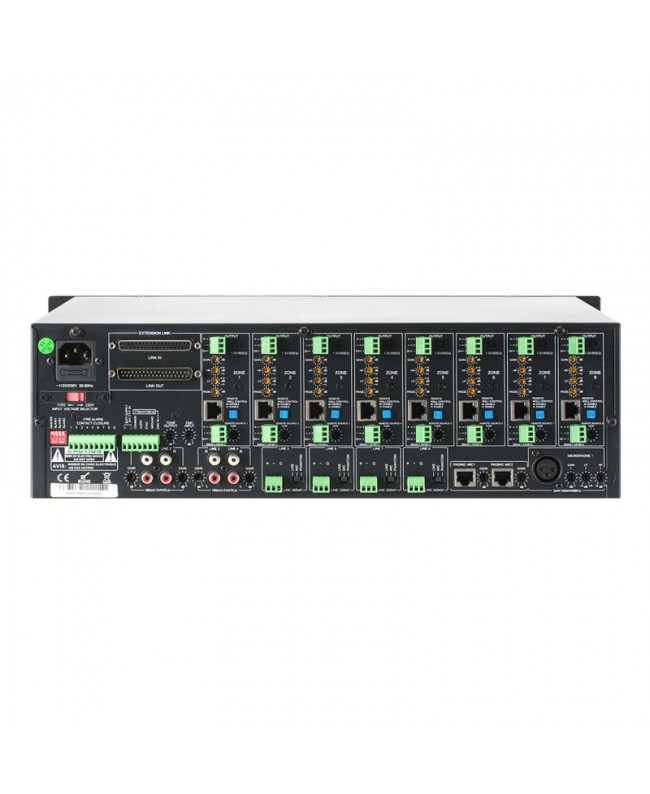

• 5 To 8 balanced inputs + microphone or line phantom power on terminal block
• A call station and 3 remote control panels are available when remote setup, zone calling and multi-source routing is required
• The matrix is also expandable to 40 zones by simply connecting 5 matrix units in cascade via cable (5 x 8 = 40)
• Each output channel has individual gain and bass and treble adjustment, also gain adjustment for each channel adjustment preamp board
• 8 Priority contacts in the event of a fire alarm allow you to silence music during evacuation calls
• 3 Pre-recorded warning, evacuation and EMC ringtones with adjustable volume
• Connections for call station and preamplifier panels via standard CAT5 cable
• 4 Quick sockets for direct BGM on all channels and access to calls
• Power supply 120 - 220 VAC with selector and 24 VDC power supply
• 5 Priority levels from highest to lowest: microphone 1, fire alarm, call station, preamplifier panel and background music
