Ecler ARQIS SB6TiBK Installation Subwoofers

Ecler ARQIS SB6TiBK

€511.00
Tax included

Wooden subwoofer featuring a 16" LF driver

Qty

In Stock

Delivery

Do You want Your order by Friday, 25/04/2025? Order within 3 hours and 4 minutes

Free shipping

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

Ecler ARQIS SB6TiBK

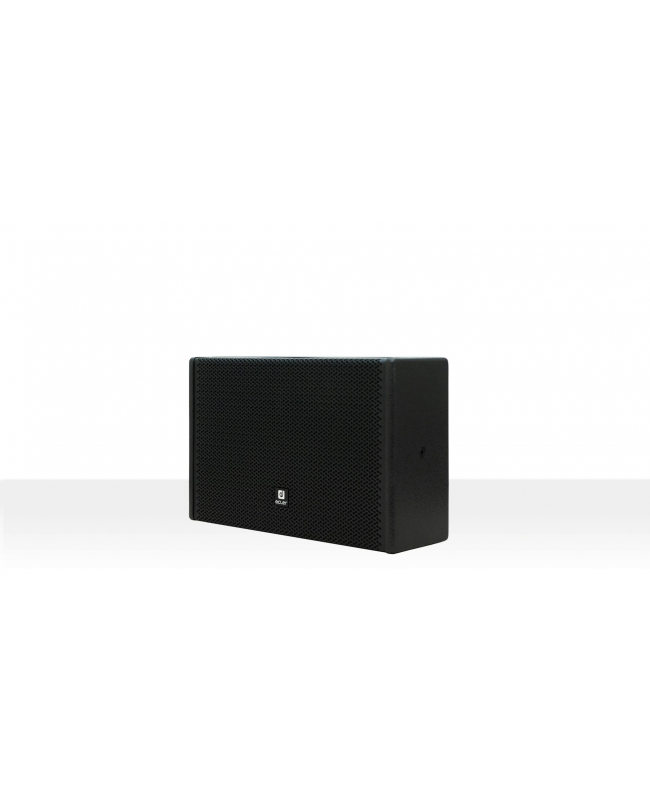

ARQISSB6Ti is a wooden wall-mount subwoofer reinforcement cabinet with a slim and compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring a 6.5" driver and a passive 6.5" radiator. 120 WRMS power @ 8 Ω and integrated 70/100V line transformer with 60 and 120W taps. Internal LPF with OFF, 120HZ and 150 HZ cut-off frequency selections. Installation U-bracket included. Available in white and black finish. ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Features

  • 6,5" subwoofer + 6,5" passive radiator
  • Ready for 70/100V installations: power selector 60/120W & 8 Ω
  • Euroblock connector and spring-loaded input terminals
  • LPF cut-off frequency selection: OFF/ 120Hz / 150Hz
  • U Wall-mount hardware included
  • Available in black (RAL 9005) and white (RAL9003) colour
  • EASE files available

Applications

  • Retai
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Hospitality

Specs

SYSTEM

  • Effective Freq. Range 50 Hz–1,5 kHz (-10dB)
  • Power handling120 W RMS / 480 W Peak
  • Sensitivity 86 dB (1W/1m)
  • Maximum SPL 107 dB RMS / 113 dB peak
  • Power options (Hi Z Multi-tap) 70V/100V line transformer: 120W / 60W / 8Ω
  • Recommended amplifier power 250 W RMS

TRANSDUCERS

  • Ways 1-way subwoofer
  • Driver 6,5" subwoofer + 6,5" passive radiator
  • Nominal impedance 8Ω

FILTERS

  • Low-Pass filter selector OFF/ 120Hz / 150Hz
  • Recommended High-Pass protection filter 55 Hz with minimum 12 dB / octave filter

PHYSICAL

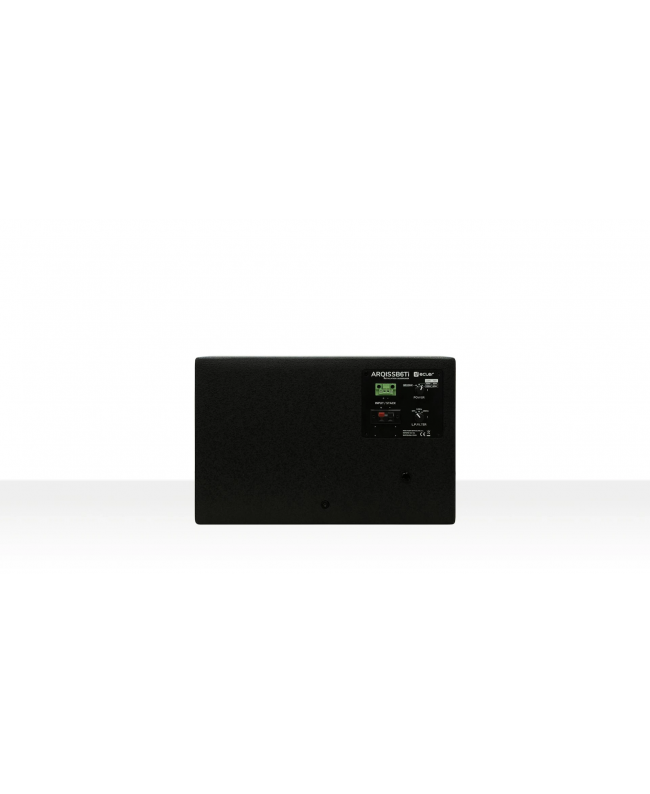

  • Connection type Euroblock + spring loaded input terminals
  • Power type selector TBC
  • Installation options Surface, wall, desktop
  • Environmental IP31
  • Enclosure material MDF
  • Grille material Steel
  • Grille fixing system Screw fixation
  • Flying points 2 x M8
  • Operating temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% HR
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% HR
  • Included accessories
  • U Bracket / 5mm Allen Key / 6mm Allen Key
  • Finished colour White (RAL 9003) or Black (RAL 9005)
  • Dimensions 390 x 250 x 130 mm / 15.35 x 9.84 x 5.12 in. (WxHxD)
  • Weight 8.2 kg / 18.07 lb

CARQISSB6TIB

Data sheet

Woofer inch
16
Giorni di elaborazione
2
