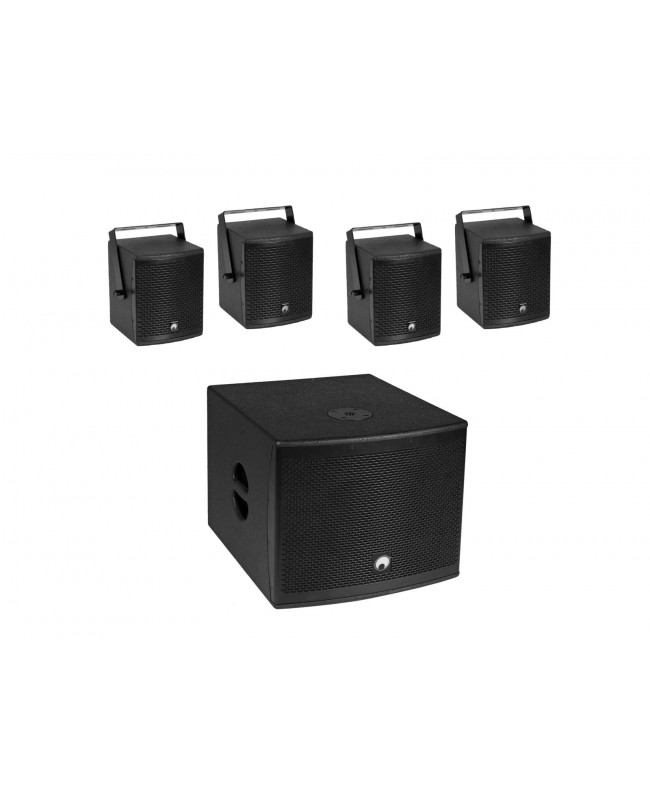

Omnitronic Set MOLLY-12A

Scope of delivery

1 x OMNITRONIC MOLLY-12A Subwoofer active black

• 1 x bass
• 1 x power cord
• 2 x speaker cable
• 1 x user manual
• 1 x declaration of conformity

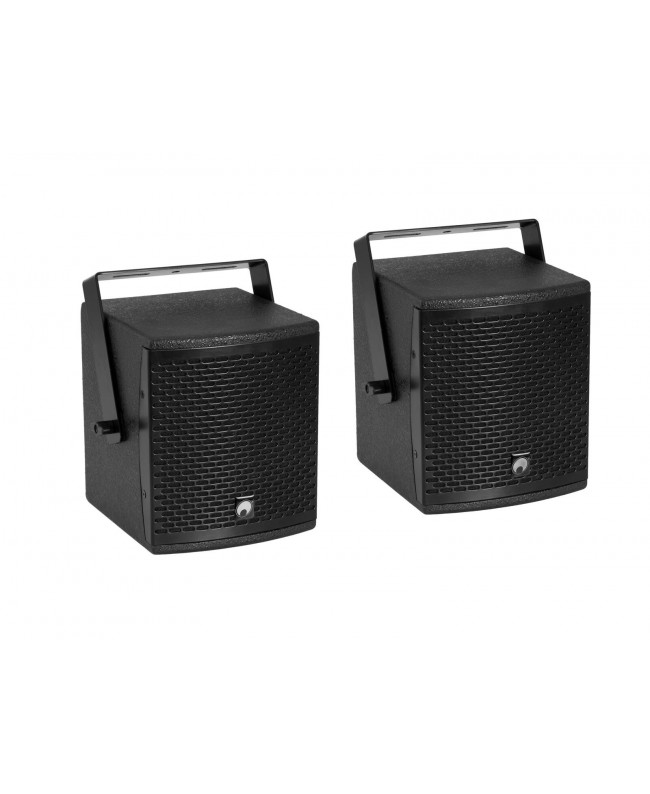

2 x OMNITRONIC MOLLY-6 Top black 2x

• 2 x top
• 2 x mounting bracket
• 4 x knurled screw
• 2 x screw plug-in terminal

• Weight: 39.90 kg
• Power supply: 230 V AC, 50 Hz
• Power consumption: 1000 W
• Protection class: Protection class I
• Output power: 1 x 500 W RMS, 2 x 100 W RMS (8 ohms), 2 x 200 W RMS (4 ohms)
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 5 A fuse replaceable
• Frequency range: 40 - 160 Hz
• Sensitivity: 103 dB
• Max. SPL: 128 dB
• DSP: Digital signal processor
• DSP presets: FLAT; DJ; LIVE; VOICE
• Cooling: Temperature-controlled fan
• Control: Bluetooth
• Bluetooth device name: Omnitronic
• Range: Range up to 10m
• Attachment system: Flange: M20 thread
• Circuitry: Class D
• Control elements: Phase reversal switch, level control per channel, power switch, connect
• Controls: Softstart; short-circuit; limiter; Overvoltage; overheat
• Status LED: Signal, power, limit, fault, DSP presets
• Connections: Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x 3.5 mm jack (stereo) mounting version, Input: line via 1 x stereo RCA, Output: line via 2 x 3-pin XLR, Output: top via 2 x speaker built-in socket (F)
• Input channels: 1 x stereo via combination socket or RCA or Bluetooth, channel control via rotary dial
• Speaker: 1 x woofer 12, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 3
• Type of speaker: Subwoofer
• Type of construction: Vented
• Carrying handle: 2 pc/pcs
• Material: Birch multiplex
• Color: Black, textured coating, painted
• Dimensions: Width: 47 cm, Depth: 57 cm, Height: 40 cm
• Weight: 22.10 kg
• Cable length: 3 m
• Power: Program: 260W, Rated: 130W RMS
• Frequency range: 150 - 20000 Hz
• Sensitivity: 95 dB (1W/1m)
• Max. SPL: 119 dB
• Impedance: 8 ohms
• Attachment system: 2x mounting bracket
• Flying points: 2 x M8 thread
• Connections: 1 x speaker built-in socket (F), 1 x screw plug-in terminal
• Speaker: 1 x woofer 6.5, Basket material: steel, Voice coil lows 1, 1 x tweeter 1
• Type of speaker: On ceiling/on wall speaker; coaxial speaker
• Material: MDF (medium density fiberboard)
• Color: Black, textured coating, painted
• Dimensions: Width: 18.3 cm, Depth: 21.4 cm, Height: 23 cm
• Weight: 8.90 kg
