Audiophony iLINEsub12 A


€904.00
Tax included

12 Active subwoofer, 700 W + 700 W, with built-in DSP


Out of Stock

Free shipping


wishlist

Audiophony iLINEsub12 A



The i. LINEsub12A is a 700W and #43; 700 WRMS 12 and #34; active subwoofer with integrated DSP from the i. Line series. It is constructed from Finnish birch plywood, finished with a durable black polyurea resin, and protected by a full-length metal grille.

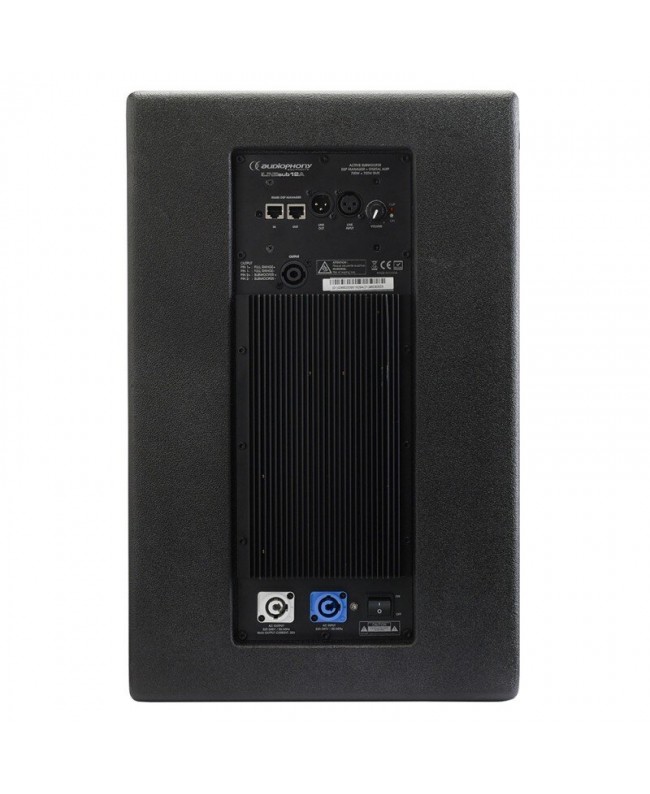

Regarding connectivity, the subwoofer has a balanced XLR line-level input and amplified speak. ON outputs with 1 and #43;/1- and 2 and #43;/2- configurations for low frequencies. Power is supplied via power. CON input and output connectors. There is also a dedicated RJ45 port for DSP management, which can be configured using the software provided with the i. LINEbox interface. The control panel allows you to adjust the system and #039;s overall volume and access the DSP.

The cabinet features two 35 mm flanges with built-in connectors, designed for mounting i. Line series columns, making the subwoofer perfectly compatible with modules such as the i. LINE83B and dedicated accessories such as the i. LINEcov cover and the i. LINEbox interface. i. LINEbox.

Technical characteristics

  • Power: 700 W at 4 ohm + 700 W at 4 ohm
  • Frequency response: 50 Hz - 200 Hz
  • Axial sensitivity: 96 dB/W/m
  • Max SPL: 124 dB
  • Nominal impedance: 8 ohm
  • Driver: 12

Connectors

  • Input: balanced line-level XLR
  • Outputs: amplified speakON bass / treble: 1+/1-: wideband output - 2+/2-: bass output
  • Power supply: IN/OUT on powerCON: 220- 240 VAC 50/60 Hz 20 A

Amplification

  • Wideband outputs: 700 WRMS at 4 ohm
  • Bass outputs: 350 WRMS at 8 ohm + 350 WRMS at 8 ohm internal

Settings

  • Volume: general system level
  • DSP: 28/56 bit, 50 MIPS
  • Materials: finnish birch plywood, black polyurea resin, integral metal grid
  • Floorstanding speaker connection systems: two 35 mm headers with integrated connector

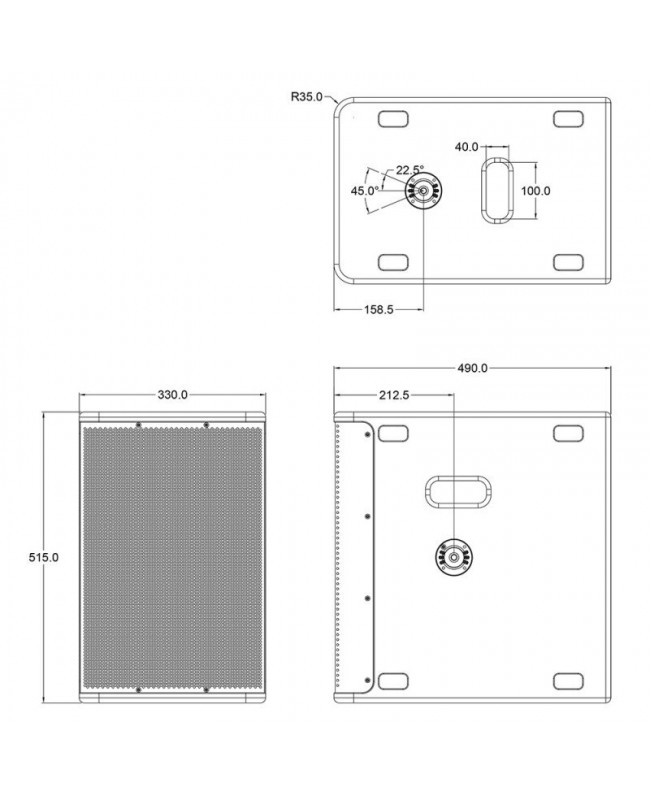

  • Dimensions: 35 x 51.5 x 49 cm
  • Net weight: 23.5 kg
