• New

Outline AS6black


€1,279.00
Tax included

Subwoofer system, black. 1 x 6 + 1 x 6 passive radiator


Out of Stock

Free shipping


wishlist

Outline AS6black



AS6 and nbsp;subwoofer system has been specifically designed to extend the architectural series low-end. Featuring high-grade components and the same research for detail and design that distinguishes this series, the AS6 ensures equal tonal balance and voicing and delivers deep and agile, pristine bass-end whether used in as home cinema or a stereo system.

Its design features a and nbsp;6 high-power woofer and nbsp;and a and nbsp;passive radiator and nbsp;(114 d. B max SPL down to 42 Hz), offering the advantage of being able to faithfully reproduce the lowest frequencies while keeping an ultra-low-profile dimension to match any architectural need. The subwoofer can be used either floor standing or suspended with a dedicated bracket (sold separately), providing the AS6 with an even more versatile installation option.

Made of and nbsp;HCDF and nbsp;(Hydrophobic Compact Density Fiber), by default it is coated with black or white textured polyurethane paint that ensures toughest places operation and a very stylish and discreet look. While the grill, made of galvanised steel, features an epoxy powder coating to protect the front of the loudspeaker.

Bars and nbsp;/ Restaurants and amp; Cafes / and nbsp;Hotels and amp; Resorts and nbsp;/ Retail industry / and nbsp;Yachts and nbsp;/ Shopping malls / and nbsp;Supermarkets and nbsp;/ Storefronts and amp; Boutiques / and nbsp;Hospitality and nbsp;/ Residential / and nbsp;Cruise Lines and nbsp;/ Educational / and nbsp;School Facilities and nbsp;/ Theme Parks /Corporate Offices / Banks / and nbsp;Houses of Worship and nbsp;/ Museums / and nbsp;Fitness Studios

  • Additionally, custom RAL color options are available for perfect and seamless integration with any venue layout.
  • Endless applications
  • Frequency response (-10dB): 55 Hz - 160 Hz
  • Nominal Dispersion: Quasi-omnidirectional
  • Impedance (Nom/Min): 8 ohm / 8.6 ohm
  • W AES (Continuous/Peak): 160 W / 640 W
  • Maximum SPL Output *: 122 dB

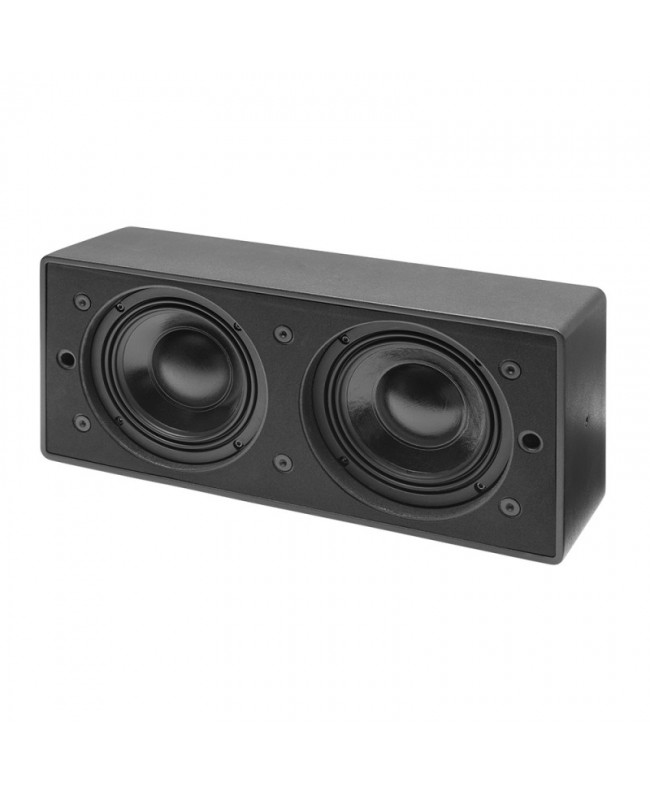

  • Components: 6 woofer + 6 passive radiator

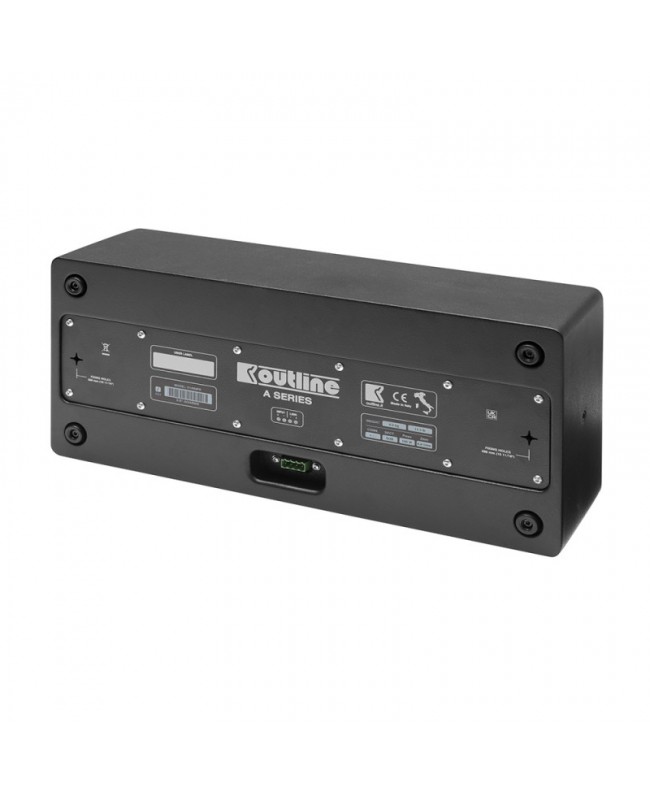

  • Connectors: 4-pin Euroblock
  • Cabinet Material: HCDF (Hydrophobic Compact Density Fiber)
  • Cabinet Finish: Black textured polyurethane paint (overpainted RAL colors on request)

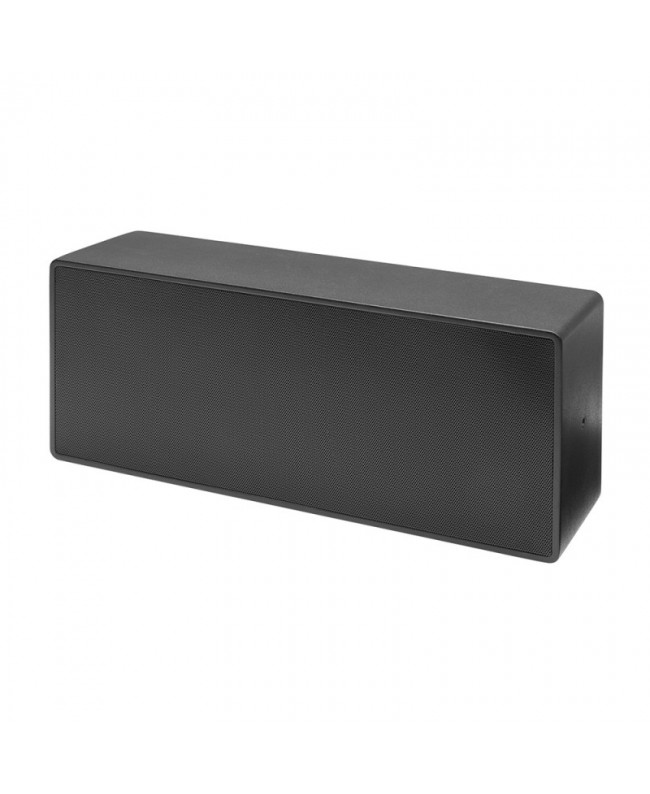

  • Grill: Epoxy Powder coated
  • Installation points: 2 through holes diam. 4.5 mm on front + 2 x M6 on side
  • W x H x D: 450 mm - 17 6/8 x 200 mm - 7 7/8 x 120 mm - 4 6/8
  • Weight: 6.5 kg - 14.3 lb

OUT-O1AS6PR
