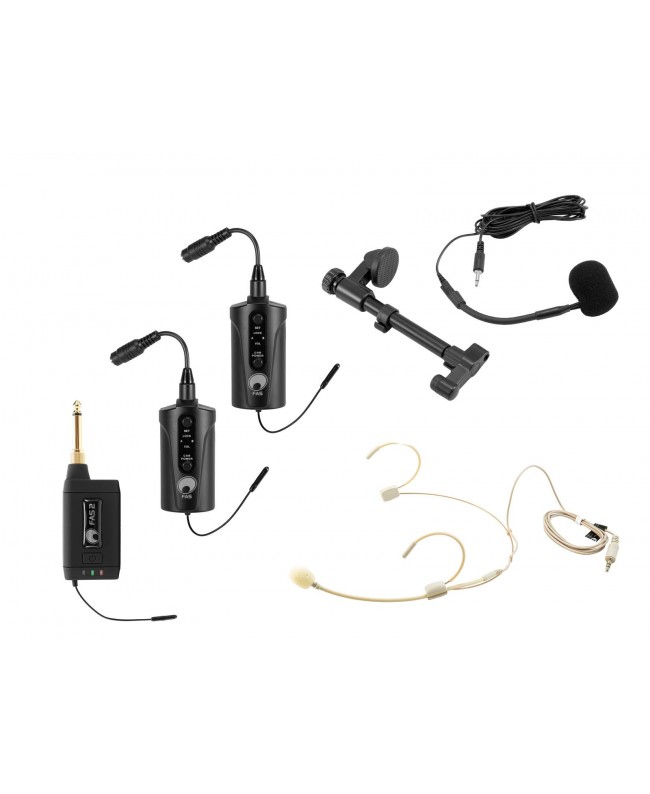

Omnitronic Set FAS TWO + 2x BP + Headset + Acoustic Guitar Microphone 660-690MHz

Scope of delivery

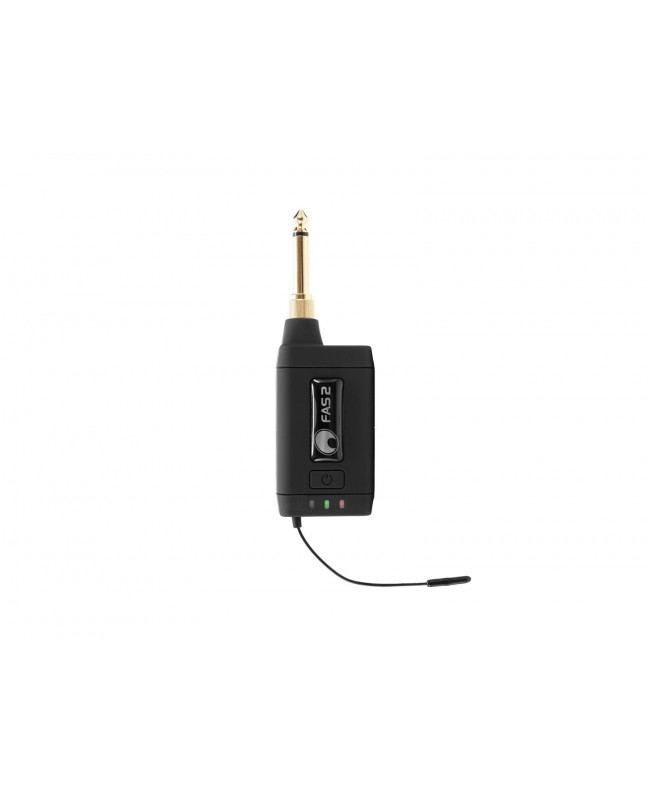

1 x OMNITRONIC FAS TWO 2-channel Wireless Receiver 660-690MHz

• 1 x receiver
• 1 x adapter
• 1 x external mains adapter
• 1 x USB cable
• 1 x user manual
• 1 x declaration of conformity

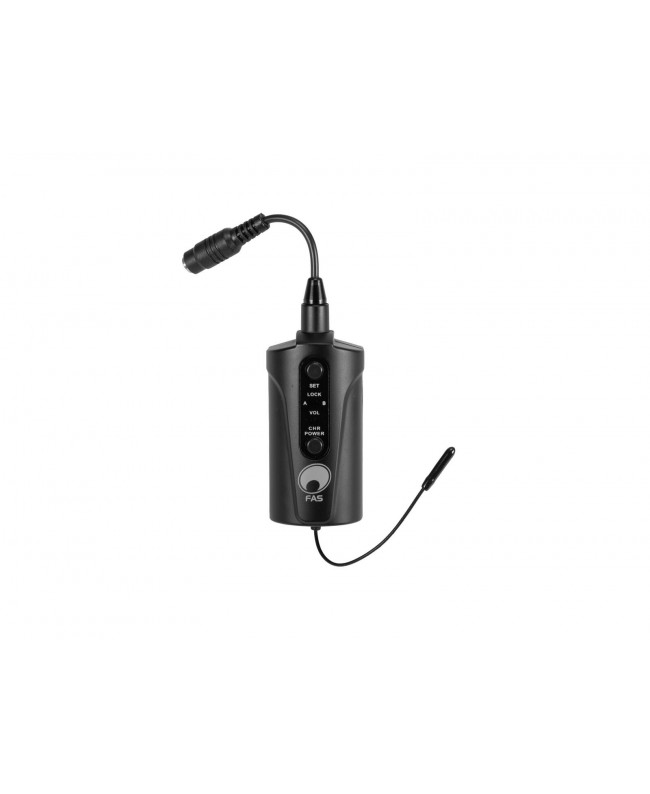

2 x OMNITRONIC FAS Bodypack 660-690MHz

• 1 x transmitter
• 1 x user manual
• 1 x declaration of conformity

1 x OMNITRONIC FAS Headset for Bodypack

• 1 x microphone
• 1 x windshield
• 1 x user manual

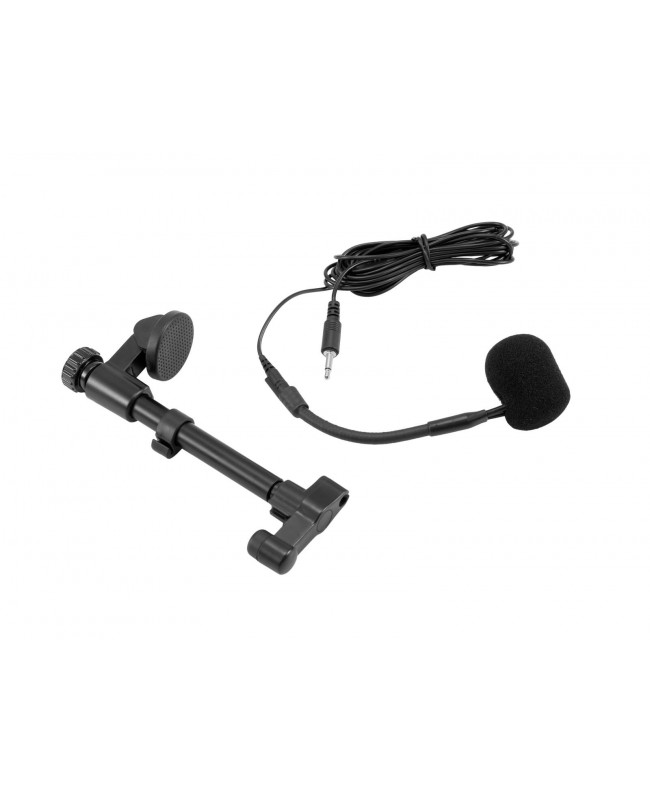

1 x OMNITRONIC FAS Acoustic Guitar Microphone for Bodypack

• 1 x microphone
• 1 x windshield
• 1 x bag
• 1 x user manual

• Weight: 0.39 kg
• Type: Receiver
• Power supply: 100-240 V AC, 50/60 Hz, 5V DC 1000 mA
• Power connection: Mains input via USB C (W) mounting version power supply cord with AC adapter included
• Number of channels: 2
• Frequency range: 60 - 15000 Hz
• S/N ratio: 92 dB
• THD: 0.8 % at 1 kHz
• Range: Range up to 30m with line-of-sight
• Frequency band: UHF 660 - 690 MHz
• Modulation: Pi/4 DQPSK
• Frequency selection: 40, In 2 groups, Frequencies automatically scannable, Switchable frequencies
• Sample rate: 48 kHz
• Status LED: Power, chanal source
• Connections: Output: mic/line via 1 x 3.5 mm jack (mono)
• Channels: Microphon chanal: 2 x mono
• Max. level: Output: mic/line -1.90 dBu, unbal.
• Color: Black
• Weight: 0.14 kg
• Material: Metal
• Dimensions: Length: 17 cm, Width: 3.6 cm, Height: 2.2 cm
• Weight: 0.05 kg
• Power connection: Battery/battery pack built-in
• Battery pack type: 1 x lithium ion 3.7 V, 800 mAh, 3.96 Wh
• Battery pack: Battery operation up to 5h
• Type: Pocket transmitter
• Power supply: 5V DC 1000 mA
• Power connection: Mains input via USB C (W) mounting version, Battery/battery pack built-in
• Battery pack type: 1 x lithium ion 3.7 V, 600 mAh, 2.2 Wh
• Battery pack: Battery operation up to 5h
• Number of channels: 1
• Range: Range up to 30m with line-of-sight
• Frequency band: UHF 660 - 690 MHz
• RF power output: 10 mW
• Modulation: Pi/4 DQPSK
• Frequency selection: 40, In 2 groups, Frequencies automatically scannable, Switchable frequencies
• Status LED: Power
• Connections: Input: mic/line via 1 x 3.5 mm jack (stereo) mounting version
• Max. level: Input: mono -1.5 dBu, unbal.
• Material: Plastic
• Color: Black
• Dimensions: Length: 21 cm, Width: 3.05 cm, Height: 2.9 cm
• Weight: 0.034 kg
• Type: Headset microphone
• Power supply: 2-10V DC
• Power connection: Mains input via 3.5 mm jack (stereo)
• Cable length: 1.0 m
• Capsule type: Condenser, Size: Ø 3 mm x 1.5 mm
• Polar pattern: Omnidirectional
• Frequency range: 20 - 18000 Hz
• S/N ratio: 63 dB
• Sensitivity: -47 dB
• Impedance: 680 Ohm
• Connections: 3.5 mm jack (stereo)
• Material: Metal
• Color: Skin-colored
• Weight: 0.02 kg
• Type: Microphone for instruments
• Power supply: 2-10V DC
• Power connection: Mains input via 3.5 mm jack (mono)
• Cable length: 2.72 m
• Capsule type: Condenser, Size: Ø 14 mm x 6.4 mm
• Polar pattern: Hyper cardoid
• Frequency range: 40 - 18000 Hz
• S/N ratio: 60 dB
• Sensitivity: -47 dB
• Impedance: 680 Ohm
• Clamp area: 90 - 132 mm
• Connections: 3.5 mm jack (mono)
• Material: Metal; plastic
• Color: Black
• Weight: 0.14 kg
