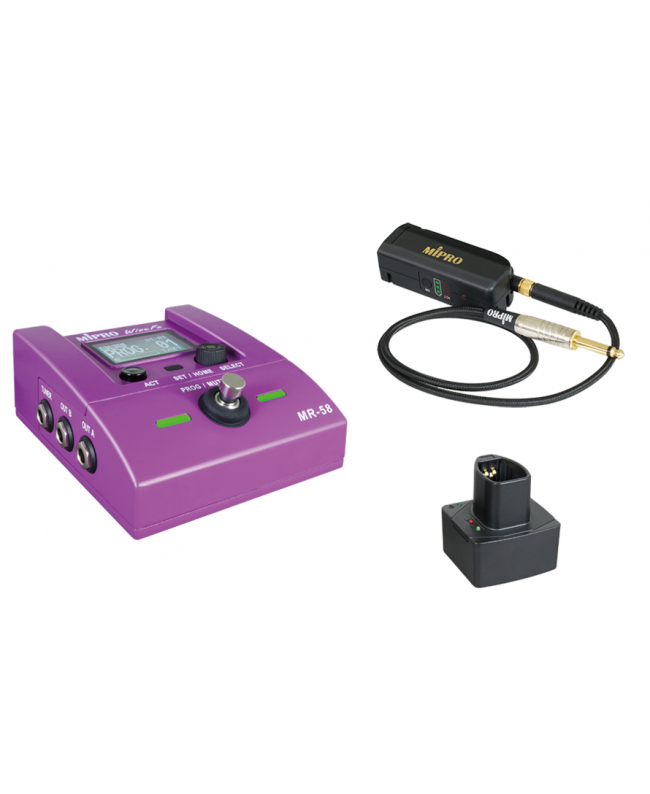

The MR-58GE wireless electric guitar/bass set includes the MR-58 wireless foot switch receiver and the MT-58GE transmitter set (MT-58 + MP-24).

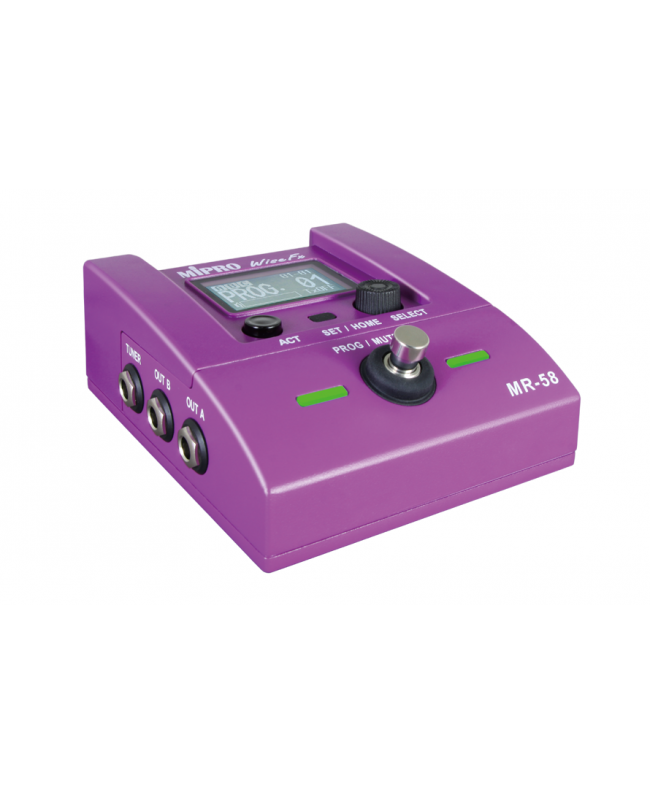

MR-58
Unique housing, display panel, and color design. The advanced circuit design of the 5 GHz ISM frequency band effectively eliminates interference from the 2.4 GHz and UHF bands, providing more reliable and longer-range transmission and more compatible channels.
The true digital wireless system completely solves the inferior audio quality of analog systems and ensures natural sound reproduction.
Sturdy metal construction with unique color, large graphic LCD screen, and easy-to-use foot switch.
Built-in high-sensitivity antenna with a specific structure designed to prevent accidental breakage.
9 V DC power supply and automatic polarity detection allow easy parallel connection with other effects machine power supplies.
A balanced output jack with ground lift switch can eliminate electrical noise when connecting to other audio equipment on stage.
MicroSD slot for user programming and firmware updates.
Circuit design and features are fully compatible with the MIPRO ACT-5800 series.

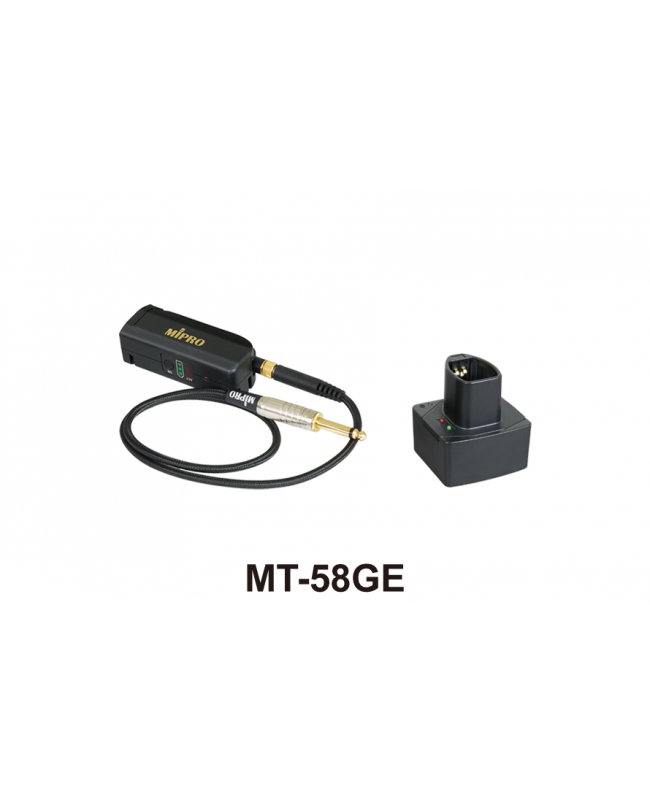

MT-58GE
Lightweight and compact transmitter, perfect for attaching to a guitar strap.
Rechargeable lithium-ion battery. Long battery life.
4-level charge indicator with LED display.
Exclusive charging station included.
MR-58 Specifications
Name: 5 GHz digital wireless foot switch receiver
Frequency band ISM 5.8 GHz
Frequency response 18 Hz – 23 kHz
Latency < 1.7 ms
S/N ratio > 120 dBA
THD 0.04 % @ 1 kHz
Sensitivity -95 dBm
Channel setting ACT™ synchronization
Sampling frequency 48 kHz / 24 bit
Modulation Digital modulation
Reception mode True diversity
Graphic LCD display, 2 color LEDs
Audio output 3 × 6.3 mm TRS, 1 × XLR
Interface MicroSD slot
Power supply DC 9 V – 12 V / 0.3 A
Dimensions 110 × 50 × 130 mm (W × H × D)
Weight Approx. 840 g
MT-58GE specifications
Name Electric guitar/electric bass transmitter set
Frequency range ISM 5.8 GHz (5.725~5.850 MHz)
RF output power 20 mW (depending on country)
Max. audio input 6.5 dBV
Battery indicator 4-level green/red LED display
Impedance Approx. 1 MΩ
Transmitter dimensions 84 × 35 × 29 mm (W × H × D)
