Professional 2 M/E hardware panel with 40 input buttons on each row and 2 independent system control LCDs, one for each row. Get 8 LCDs for custom labels and each row includes a separate select bus.
Massive 4 M/E Ultra HD live production switcher with 40 standards converted 12G-SDI inputs, 24 12G-SDI aux outputs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for a total of 12 DVEs.
The largest 120x120 model features zero latency, 12G-SDI, full SDI re-clocking, plus any combination of SD, HD and Ultra HD. You also get a built in control panel and external control via Ethernet.
Flexible programming: free and area-based programming, variable playback mode (by day, by week, cyclic, customized). -
Centralized management: remote control of one or more screens (scheduled or quick power on/off, scheduled brightness/volume adjustment, screen preview, remote content release and local updates via USB). - Organizational permission management: 5 levels for materials, programs, terminals and users. Supports creation of custom users with assignable permissions and permission templates. -
Advanced protection: 3-level verification of materials, programs and schedules to prevent erroneous publications, data encryption to prevent tampering, no default passwords (user sets initial one for added security).

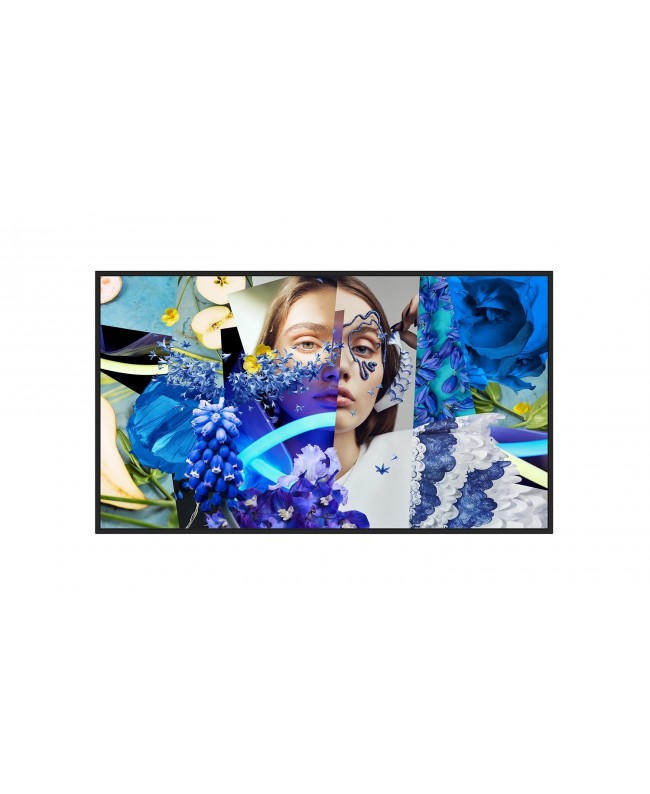

DS-D6043UH-DP DISPLAY Size: 43
Resolution: 3840 x 2160
Active area: 941.184 mm x 529.416 mm
Pitch: 0.2451 mm x 0.2451 mm
E-LED Viewing angle: 178° (H)/178° (V)
Brightness: 700 cd/m²
Contrast: 4000:1
Color depth: 10 bits (8 bits +
FRC) Response time: 8 ms
Color gamut: 85%
NTSC Reliability: 7 x 24 h
Frequency: 60 Hz
Haze: 25%
INTEGRATED SYSTEM Operating system: Android 13
Processor: Cortex-A55, 4 cores, 1.92 GHz
RAM: 4
GB Storage: 32
GB EMMC INTERFACES Inputs: HDMI x 3, DP x 1
Outputs: LINE OUT x 1, speaker (6Ω 10 W) x 2
Network: RJ45 x 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) x 1 RS232 in x 1, RS232 out x 1 USB 2.0 x 1, USB 3.0 x 1, BT 5.0 x 1
POWER SUPPLY Input voltage: 100-240 VAC, 50/60 Hz
Standby power consumption: max. 0.5 W
Typical consumption: 65 W
Maximum consumption: 130 W
Operating humidity: 10% ~ 80% RH (condensing)
Storage temperature: -20 °C ~ 60 °C (-4 ℉ ~ 140 ℉)
Storage humidity: 10% ~ 90% RH (condensation)
GENERAL Supported formats: DAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG Mounting: wall mount (horizontal or vertical) Dimensions (without bracket): 967.4 mm x 555.9 mm x 40 mm Dimensions (with bracket): 967.4 mm x 555.9 mm x 70 mm
Packaging dimensions: 1075 mm x 652 mm x 144 mm
Net weight: 9.1 kg
Gross weight: 12.5 kg PACKAGE CONTENTS 1 x Digital signage 1 x Wall bracket (with screw pack) 1 x EU power cable 1 x RS232 cable 1 x Remote control 1 x User's manual 1 x Quick guide 1 x Regulatory and safety documentation 1 x Logo sticker 1 x Energy efficiency label
High-speed solution for simultaneous acquisition and playback of 8 Ultra HD video channels via 100G Ethernet. For total redundancy, it features 2 100G Ethernet QSFP ports.
