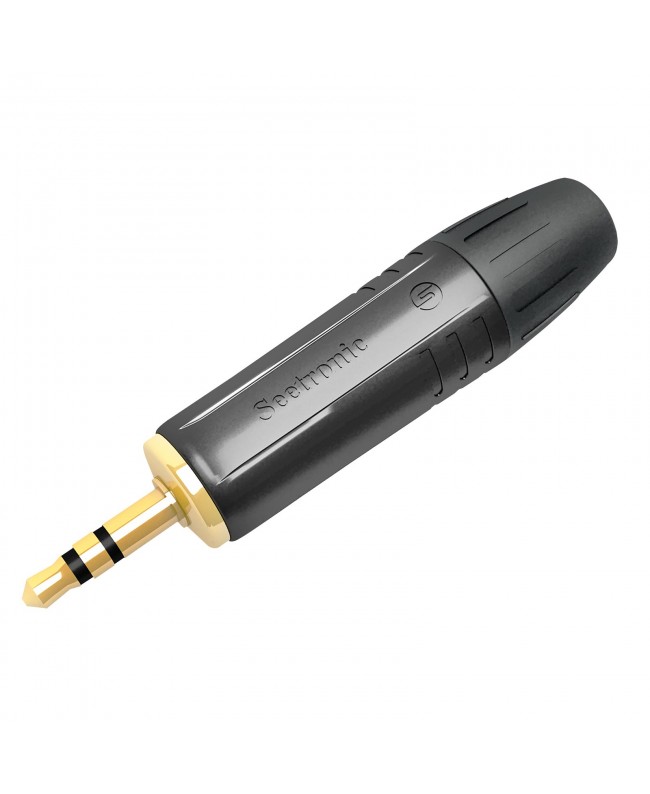

SEETRONIC Jack Plug 3.5 mm Stereo Gold contacts - black housing - black end cap

SEETRONIC Jack Plug 3.5 mm Stereo Gold contacts - black housing - black end cap


€2.30
Tax included

Gold contacts - black housing - black end cap


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 05/08/2026? Order within 6 hours and 57 minutes



wishlist

SEETRONIC Jack Plug 3.5 mm Stereo Gold contacts - black housing - black end cap



This 3.5 mm stereo jack plug has an all-metal, slim design with gold-plated contacts and chuck type strain relief. It is suitable for cables with a diameter from 2 to 4.5 mm, tailored for professional headphones.

  • Rugged zinc diecast shell
  • Gold-plated contacts
  • Suitable for cables with an outer diameter between 2 and 4.5 mm
  • Flashover Voltage: 1000 V
  • Impedance: 100000 Ω
  • Pins: 3
  • Wire Connection: 0.2 mm²
  • Maximum Wire Size: 0.2 mm²
  • Maximum Wire Size AWG: 24 AWG
  • Outer Cable Diameter: 4.5 mm
  • Length (mm): 49.6 mm
  • Height (mm): 9.75 mm
  • Width (mm): 9.75 mm
  • Diameter: 3.5 mm
  • Weight: 0.01 kg
  • IP Rating: IP20 (indoor use only)
  • Material: Polyamide
  • Housing: Zinc
  • Colour: Black
  • Bushing Colour: Black
  • Contact Resistance: 5 mΩ
  • Pin Connection: Solder
  • Locking Device: No lock
  • Contact Type: Brass
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

M2TP3CBG

Data sheet

Color
Black
Giorni di elaborazione
3
