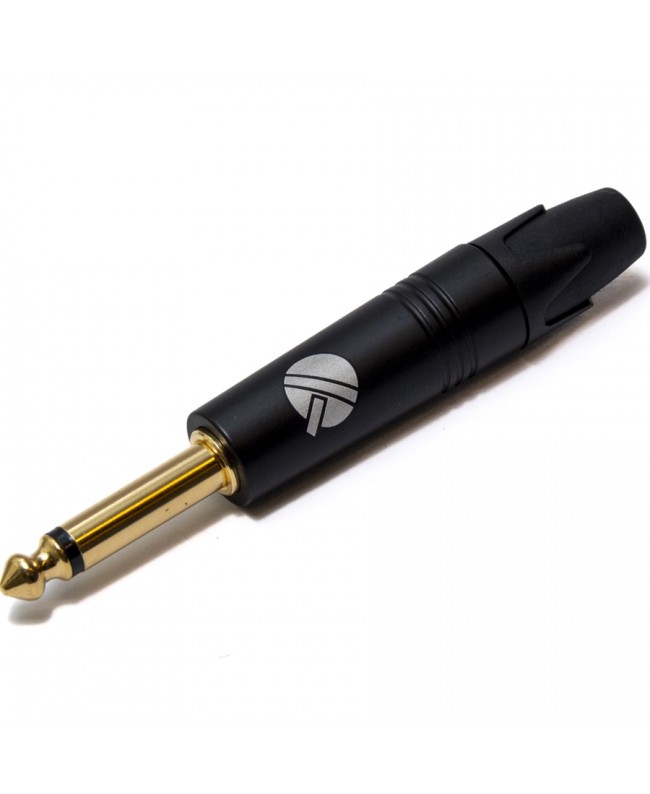

Quik Lok G/110 Jack TS Mono 6.3 Black

Quik Lok G/110

Jack Connector

6.3 mm Mono Jack Connector

Metal body with plastic cover/cable clip

Gold-plated plug

Black finish

The G/110 connector is used in models from the Quik Lok ITALIAN STANDARD B (ITST B) series:

- 6.3 mm mono jack instrument cable <-> 6.3 mm mono jack

- XLR Male to <-> 6.3 Mono Jack microphone cable

- XLR Female to <-> 6.3 Mono Jack microphone cable

The Jack Connector

The jack connector (jack plug or simply "jack") is an electrical connector commonly used to transmit very low-voltage signals, mostly analog audio signals. It was invented in the 19th century for use in telephone switchboards and is one of the oldest electrical connector standards still in use today.

Versions

The different versions of jack connectors, based on the number of contacts, are:

TS Jack: 2 contacts, used in audio applications for unbalanced signals

TRS jack: 3 pins, used in audio applications for balanced stereo or mono signals (also known as a stereo jack)

TRRS jack: 4 contacts, used for stereo signals plus a microphone or video channels, switches, etc.

TRRRS jack: 5 pins, used in some portable devices with dual microphones or balanced stereo output, etc.

Diameters

Sub-Mini Jack: 2.5 mm, used for headphones, smartphones, game consoles, camcorders, etc.

Mini Jack: 3.5 mm (1/8 in, Anglo-American standard), used for headphones, smartphones, MP3 players, sound cards, etc.

Jack: 6.3 mm (1/4 in, Anglo-American standard), used for musical instruments, headphones, amplifiers, etc.

NATO Plug: 7.13 mm, used primarily in specialized fields such as military applications, aviation headsets, etc.

Shapes

Straight: The connector's output extends in the same direction as the cable

90° Angled: Also known as "pipe jacks" or "L-shaped jacks," used for space-saving purposes or to prevent impact, often in combination with the flat style
