Adam Hall Hardware 1670 Latches
  • New

Adam Hall Hardware 1670

€30.50
Tax included

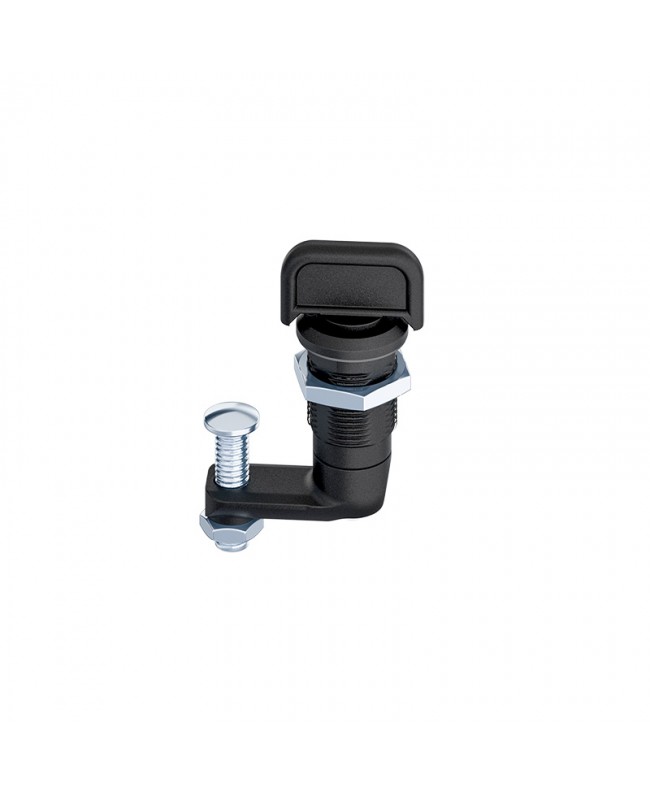

Compression Latch with Wing Knob

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 28/04/2026? Order within 3 hours and 3 minutes

Compare

wishlist

Adam Hall Hardware 1670



Features

  • 4.5mm compression.
  • The closing process is always clockwise.
  • By turning the insert 90° the cam is first put into closed position.
  • By turning an additional 90°, the cam will be pulled towards the frame.
  • The H-dimension can be easily adjusted by the adjusting screw.
  • Vibration-proof according to DIN EN 61373.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • A pre-assembled quarter-turn can be fitted through the cutout.

Materials

  • Housing, insert shaft and cam: zinc die, black
  • T-handle: PA, black
  • Adjusting screw and nut: steel, zinc plated
  • Product type: Catches
  • Type: Compression Latch
  • Material: Zinc die-cast
  • Surface: Powder coated
  • Color: Black
  • Mounting hole diameter: 16.3 mm
  • Lockable: No
  • Weight: 0,047 kg
  • Other features: Catches
  • Other features: Operated by wing knob

1670

Data sheet

Color
Black
Giorni di elaborazione
4
