Adam Hall Hardware SPLIT-LID


€67.00
€44.00 -35%
Tax included
Lowest price within the last 30 days: €44.00

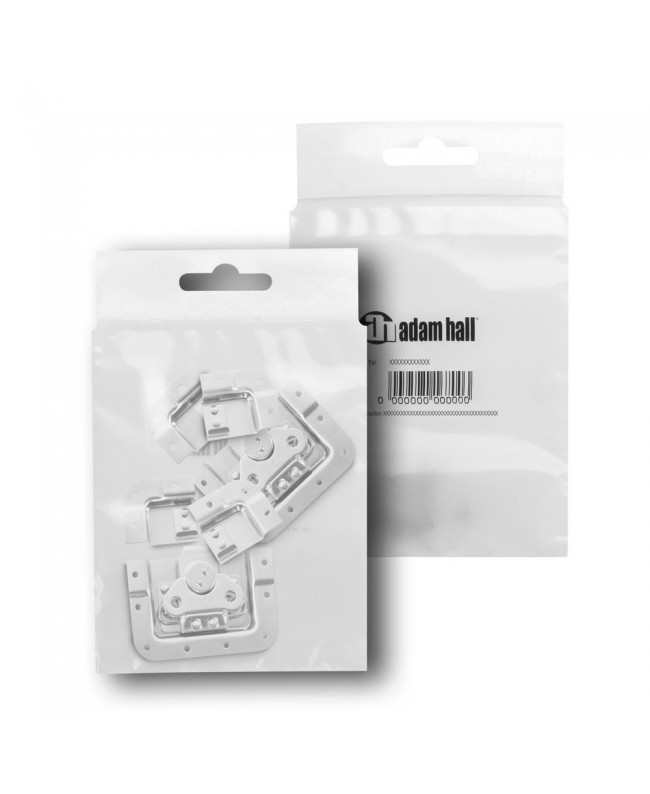

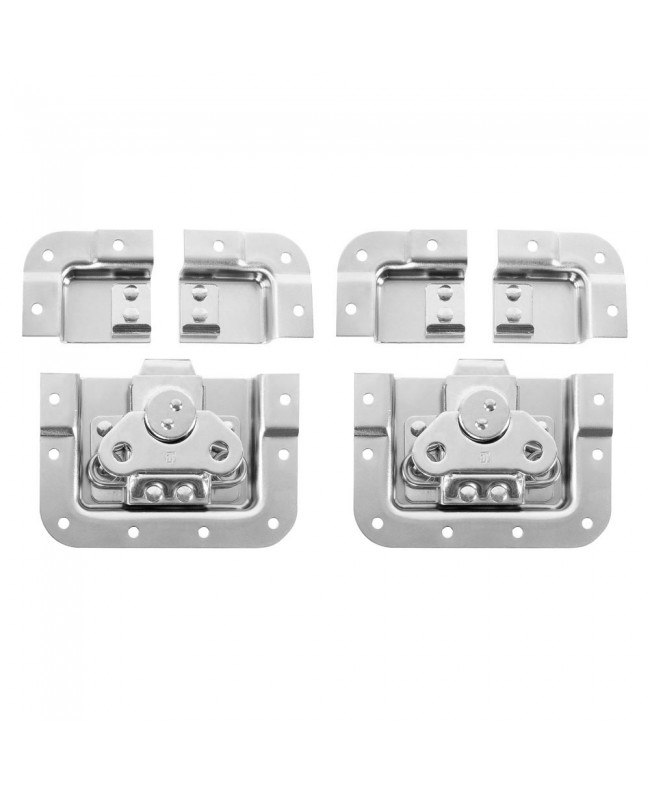

Bag of 2 Butterfly Latch short Cranked 14 mm deep with Split Dish


Out of Stock



wishlist

Adam Hall Hardware SPLIT-LID

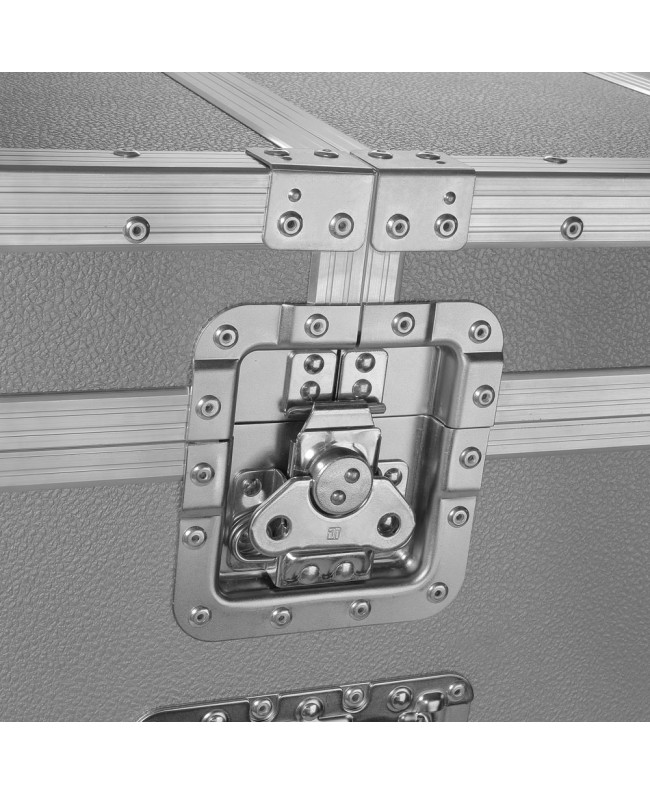

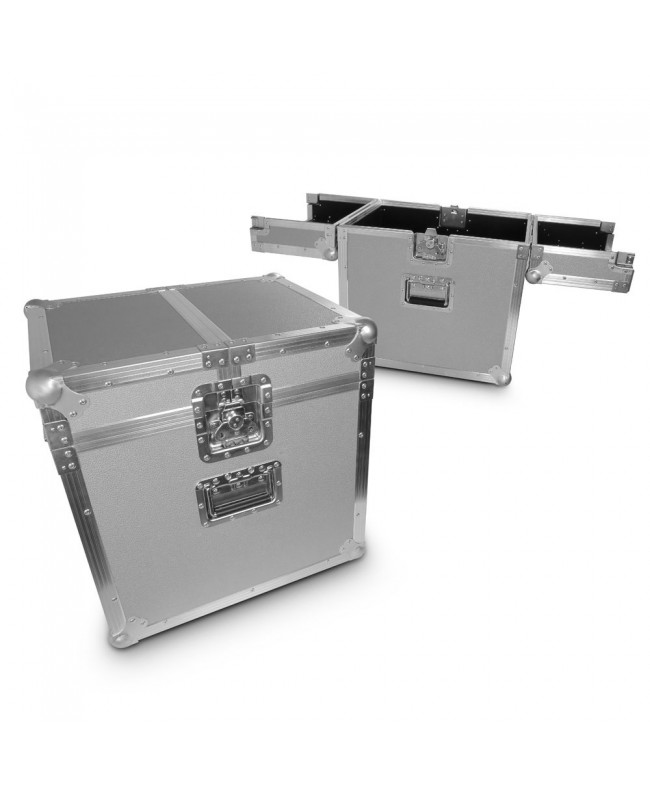

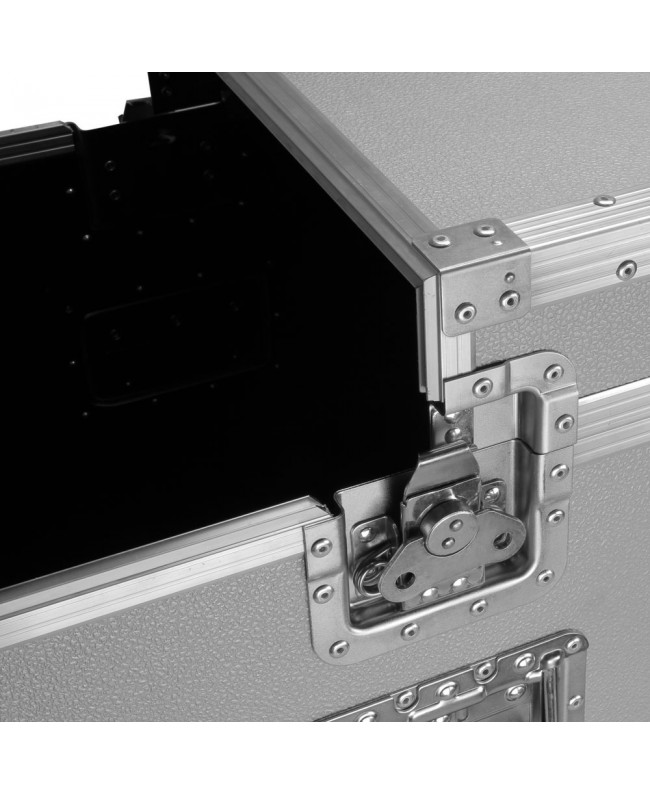

The Split-Lid -Butterfly from Adam Hall makes building flight cases with split lids or hoods really easy. For one, the number of required butterflies can in many cases be reduced from four to two; also, the elaborate lid location transition is eliminated at the corners. Last but not least, there are also handling benefits, since fewer closures need to be operated.

  • Material: Steel
  • Coating: Galvanised
  • Lockable: No
  • Push-out spring: No
  • Push Flat feature: Yes
  • Colour: Silver
  • Cranking: Cranked
  • Size: L
  • Diameter of mounting holes: 5.1 mm
  • Width: 127 mm
  • Height: 138.5 mm
  • Depth: 22.2 mm
  • Installation width: 98.2 mm
  • Installation height: 110.7 mm
  • Installation depth: 14 mm
  • Weight: 438 g

172535M2AH
