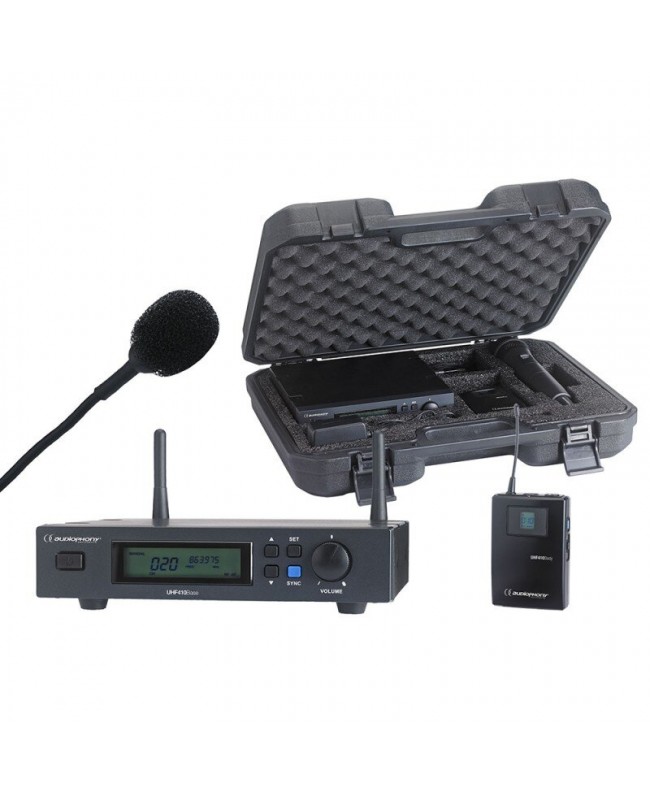

Audiophony PACK-UHF410-Lava

Lavalier microphone

• Sensitivity: -67 +-3 dB
• Directivity: omnidirectional
• Frequency response: 50 Hz to 10 kHz
• Max. current: 10 V
• Standard current: 1.5 V
• Power consumption: 0.5 mA max.
• S/N ratio: 58 dB
• Supplied accessory: windshield and clip
• Connector: mini XLR

Bodypack transmitter

• Frequency ranges: UHF 863 - 865 MHz
• Max power: 10 mW (max.)
• LCD display: channel, batterie level

MIC input via mini-XLR

• Gain level: -10 / 0 / +10 dB
• Power supply: 2 x AA type 1.5 V batteries (not supplied)

True Diversity receiver

• Frequency range: UHF 863 - 865 MHz
• Channels presets: 4 groups, 4 compatible channels per group
• Channels selection: Tact Switch, Auto-Scan, sync
• LCD display: frequencie, group, canal, RF and AF

Line or MIC level

• Oscillator: PLL Synthesiser
• Frequence stability: +-0,005%
• Modulation: FM
• Audio frequency response: 80 Hz - 18 kHz
• Power supply: 12 VDC (adapter supplied)
• Power consumption: 260 mA +-10 mA
