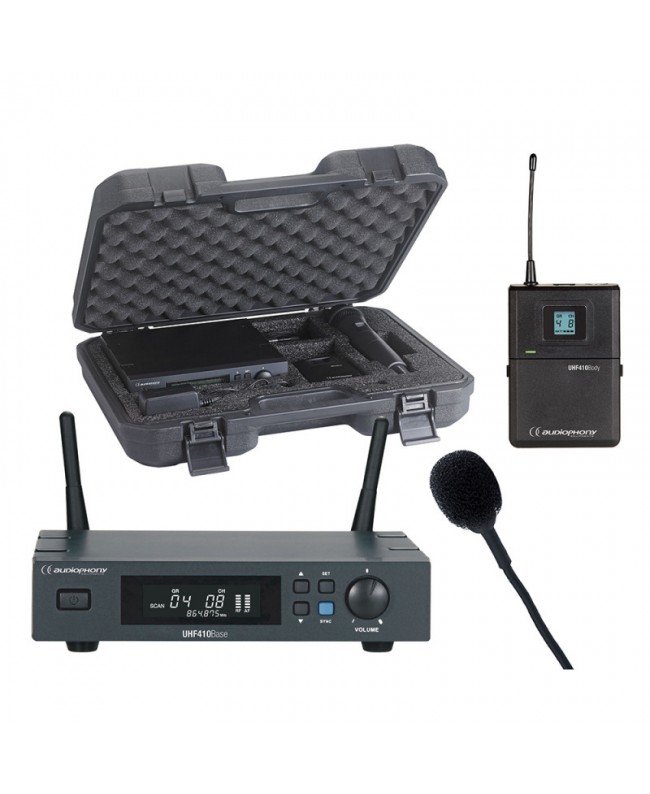

Audiophony PACK-UHF410-Lava-F5

• True Diversity Receiver

• • Frequency range: UHF 514~564 MHz
• • Frequencies: 997 programmed,With Auto-scan function
• • Channel presets: 8 groups, 16 compatible channels in each group
• • Channel Selection Mode: Manual, Tact Switch, Auto-Scan, SYNC
• • LCD display: frequency, group, channel, RF and AF
• • Audio outputs: XLR3-M balanced and 6.35 TS-F jack
• • Output levels: line or micro
• • Oscillator: PLL SyntheDimensionsr
• • Frequency stability: +- 0.005%.
• • Modulation mode: FM
• • Audio Frequency Response: 80 Hz to 18 kHz
• • Power supply: 12 VDC (adapter supplied)
• • Current consumption: 260mA +- 10mA
• • Dimensions: 200 x 42 x 183 mm (½U 19, rackable in pair)

• True Diversity transmitter

• • Frequency ranges: UHF 514~564 MHz
• • Max power: 35 m W (max.)
• • Frequencies: 997,With Auto-scan function
• • LCD display: channel, battery level
• • Mic input: mini XLR3-F
• • Gain level: -20/-10/0dB
• • Power supply: 2 x LR6/AA type 1,5V batteries (not supplied)

Lavalier microphone

• • Sensitivity: -67 +-3dB
• • Directivity: Omnidirectional
• • Frequency response: 50 Hz à 10 kHz
• • Max current: 10V
• • Standard current: 1.5V
• • Power consumption: 0.5 mA max.
• • S/N ratio: More than 58dB
• • Supplied accessory: Windshield and clip
• • Connector: mini-XLR3-M
