Rondson BE-5018/PT-10
  • New

Rondson BE-5018/PT-10

€380.00
Tax included

UHF diversity package, transmitter box + bodypack microphone + True Diversity UHF receiver, half-rack

Out of Stock

Free shipping

Compare

wishlist

Rondson BE-5018/PT-10

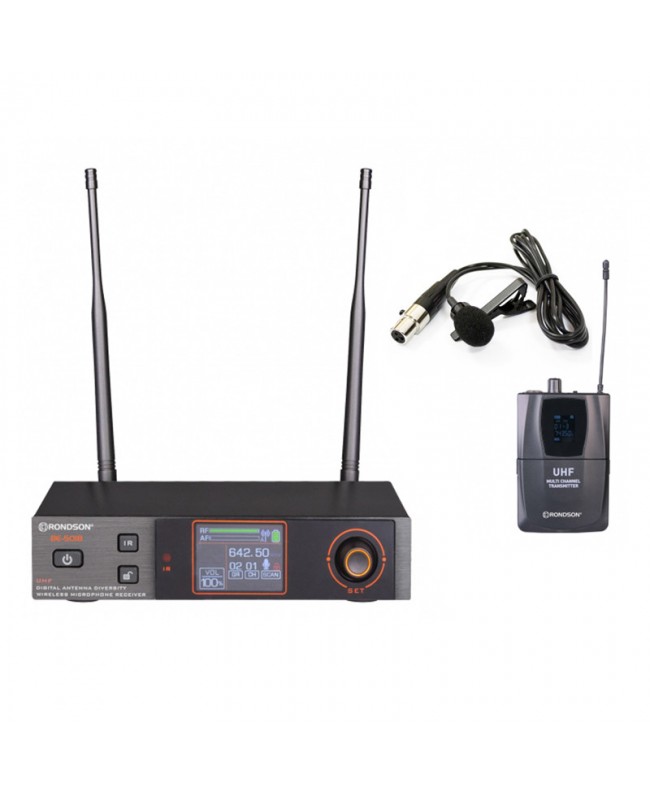

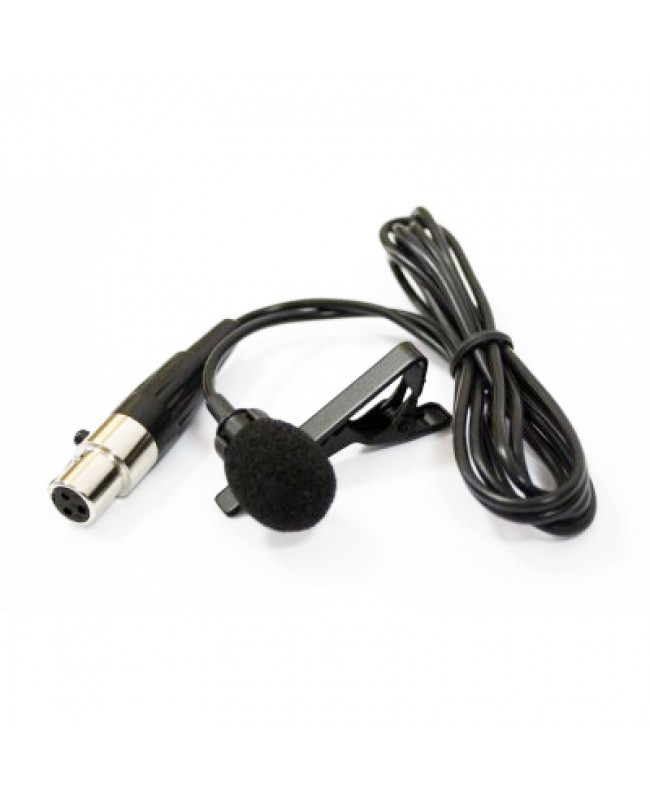

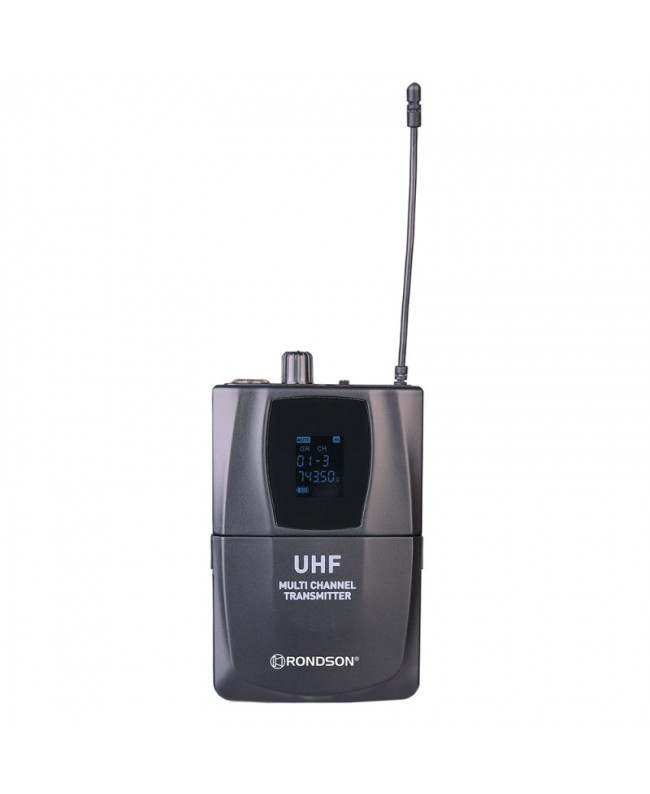

Bodypack + lavalier microphone with True Diversity UHF receiver, 10 m. W power, ideal for voice or professional audio applications. Kit consisting of a 10 m. W PT-10 bodypack transmitter with lavalier microphone CM-506 and BE-5018 PLL receiver. The desktop receiver has a pair of antennas and 20 PLL frequencies in the UHF band from 660 to 690 MHz. It is equipped with an anti-interference system for the simultaneous operation of different unit. With a range from 10 to 150 m, it has infrared sync to transmit the frequency to the transmitters. Balanced XLR audio output.

Technical characteristics

  • Reception method: True Diversity
  • System: synthesized PLL
  • Frequency stability: +-0.005
  • Image interfere rate: 80 dB
  • S/N ratio: 105 dB at 1 kHz
  • Sensitivity: - 107 dBm
  • Harmonic distortion: 0.5%
  • Frequency response: 15 - 20,000 Hz
  • Output impedance: 600 ohm
  • Audio output level: -12 dB
  • Display: LCD
  • Audio output socket: XLR symmetrical
  • Antenna sockets: 2 x BNC
  • Power supply: 12-18 VDC 500 mA -Adapter 230 V
  • Dimensions (W x D x H): 210 x 120 x 38 mm (1/2 rack 19)
  • Weight: 1 kg
  • Bodypack + lavalier microphone: PT-10/CM-506
  • Batteries: 2 x AA / 1.5 V (not delivered)

RON-02007
