Rondson BE-5038/2PT-10
  • New

Rondson BE-5038/2PT-10


€657.00
Tax included

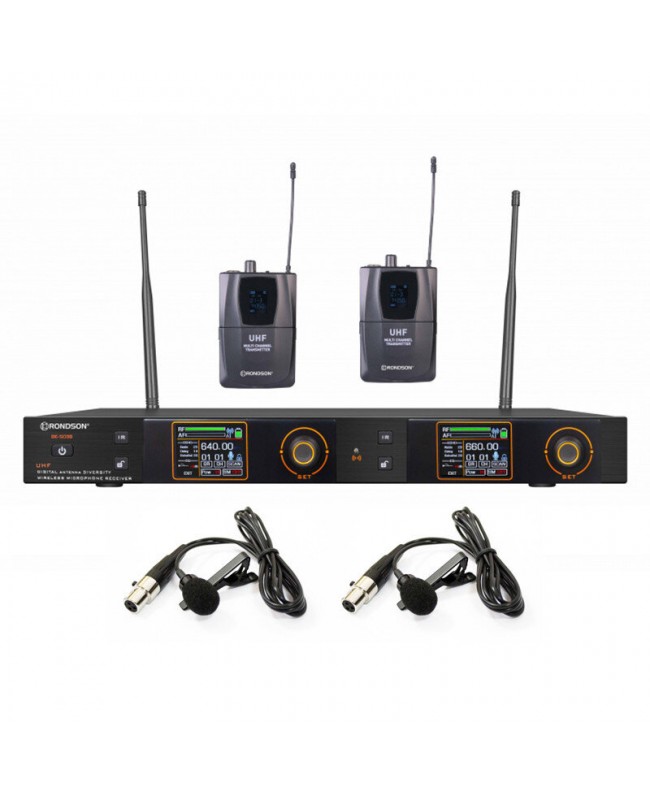

UHF dual diversity package, 2 lavalier microphones + 2 bodypack + dual UHF True Diversity receiver, 660 - 690 MHz


Out of Stock

Free shipping


wishlist

Rondson BE-5038/2PT-10



2 X bodypacks and #43; 2 x lavalier microphones with dual UHF True Diversity receiver, 10 m. W power, ideal for vocal or professional audio applications.

The desktop receiver, 19 and #34; rack standard mount (the brackets are supplied), has a pair of antennas and 20 PLL frequencies in the UHF band from 660 to 690 MHz. It is equipped with an anti-interference system for the simultaneous operation of different unit. With a range from 10 to 150 m, it has infrared and #34;sync and #34; to transmit the frequency to the transmitters. Jack audio output (mix) and 2 balanced XLRs.

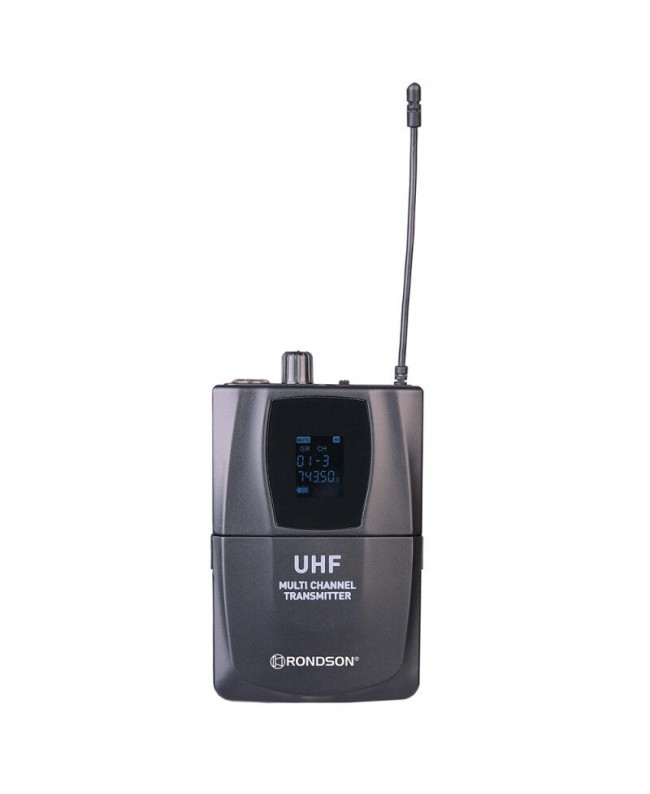

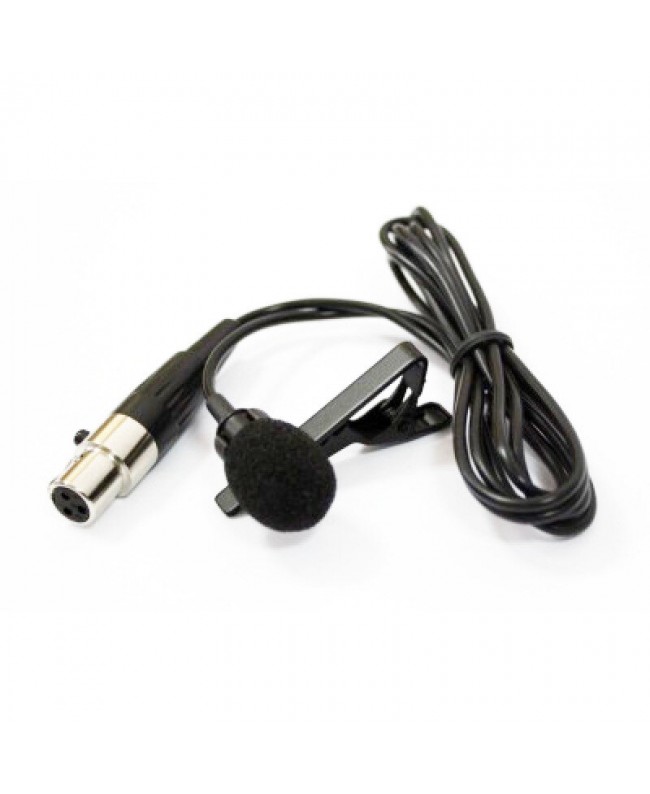

  • Two 10 m. W PT-10 bodypack transmitters with LCD display for function indication, two CM-506 lavalier microphones and one BE-5038 PLL dual receiver.

Technical characteristics

  • Reception method: True Diversity 2 channels
  • System: synthesized PLL
  • Frequency stability: +-0.005%
  • Image interferes rate: 80 dB
  • S/N ratio: 105 dB at 1 kHz
  • Sensitivity: - 107 dBm
  • Harmonic distortion: 0.5%
  • Frequency response: 15 Hz - 20 kHz
  • Output impedance: 600 ohm
  • Audio output level: -12 dB
  • Display: LCD
  • Audio output jack: XLR symmetrical
  • Antenna sockets: 4 x BNC
  • Power supply: 12 - 18 VDC 500 mA
  • Dimensions (W x D x H): 48.2 x 19 x 4.4 cm (19 1U)
  • Weight: 3 kg
  • Bodypack + lavalier microphone: PT-10/CM-506
  • Batteries: 2 x AA / 1.5 V (not delivered)

RON-02156
