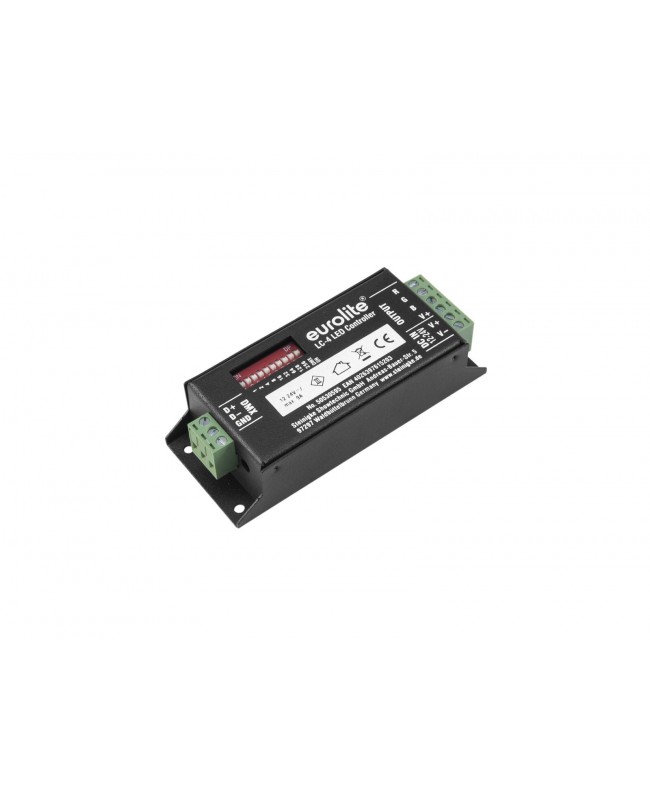

Eurolite LC-4 LED Strip RGB DMX Controller LED Driver
  • -15%

Eurolite LC-4 LED Strip RGB DMX Controller

€33.50
€28.50 -15%
Tax included
Lowest price within the last 30 days: €28.50

3-Channel LED controller with DMX interface for RGB LEDs 12-24 V

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 14/04/2026? Order within 5 hours and 9 minutes

Compare

wishlist

Eurolite LC-4 LED Strip RGB DMX Controller



  • Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
  • Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
  • 3 separate control channels for individual color mixing of red, green and blue LEDs
  • Plug-in screw terminals for connecting the LEDs and the power supply
  • Rugged black metal housing
  • Integrated show programs
  • The device is cooled by passive convection cooling
  • Control via DMX; stand-alone
  • For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
  • Silent operation

Scope of delivery

  • 1 x controller
  • 1 x user manual
  • Power supply: 12/24V DC
  • Power consumption: Max. 108 W 12 V DC, Max. 216 W 24 V DC, 36 W 12 V DC per channal, 72 W 24 V DC per channal
  • IP classification: IP20
  • Protection class: Protection class III
  • Output current: Max. 3 x 3 A per channal
  • Power connection: Via screw terminal
  • Power output: Screw terminal
  • DMX channels: 4
  • DMX input: Screw terminal
  • Cooling: Passive convection cooling
  • Control: DMX; stand-alone
  • Housing color: Black matte
  • Dimensions: Width: 4.5 cm, Depth: 10.9 cm, Height: 2.7 cm
  • Weight: 0.15 kg
  • Noise classification: Class 0 (no noise at all)

50530595

Data sheet

Channels
3 channels
Color
Black
Giorni di elaborazione
3
