Novastar VX1000 PRO

The Novastar VX1000 Pro is the successor of the VX1000 and provides an all-in-one solution for driving big LED screen(s). It drives up to 6,500,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels high, which is ideal for ultra-wide and ultra-high LED screen applications.

It features powerful front-end processing and eliminates the need of an external scaler. The VX1000 Pro allows you to switch seamlessly between several input sources and it is capable of displaying up to six layers, offers colour correction, and accepts the most commonly used image interfaces. The input can be selected easily with the direct access buttons on the front and the bright LCD display allows you to easily navigate through the intuitive menus. An internal media player allows you to play content from a USB device without the need for additional external hardware.

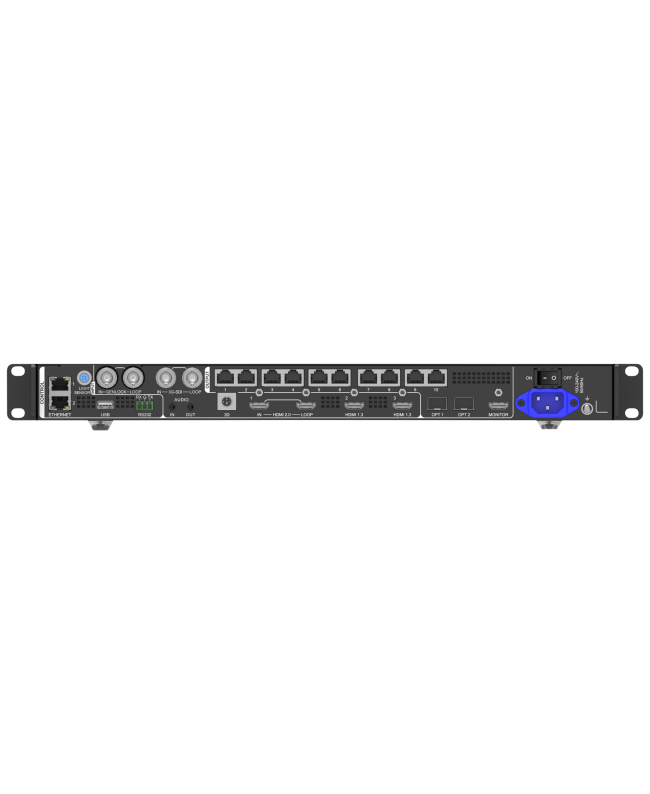

In addition to the 10 built-in outputs, two fibre-optic output ports are available to cover distances beyond the 100 metre Ethernet cable limit. When using the fibre optic outputs, an additional optical converter unit is required to drive your LED screens. This can either be one of the separately available Novastar CVT10-M or CVT10-S fibre converters, or a second VX1000 Pro in fibre converter mode. A light sensor input is available for direct connection of a light sensor, allowing for automatic brightness control.

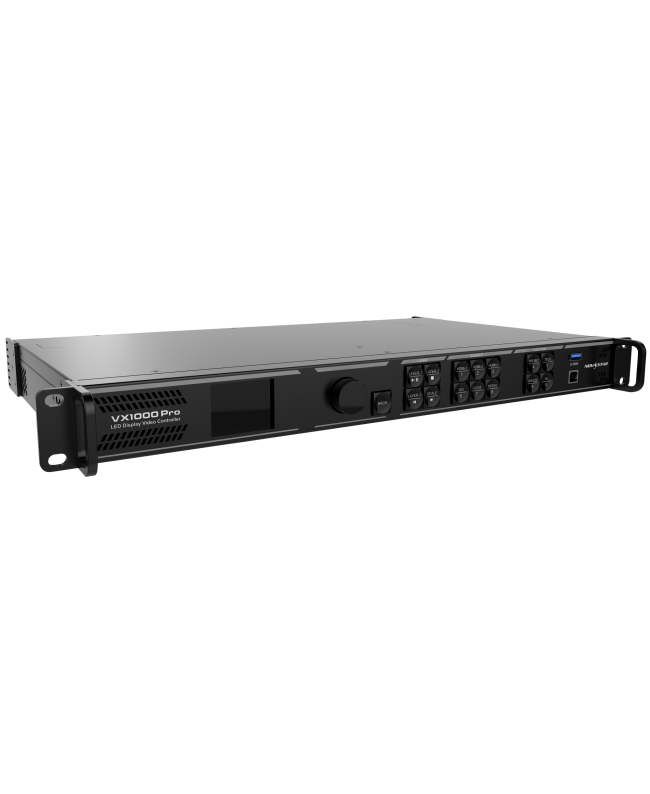

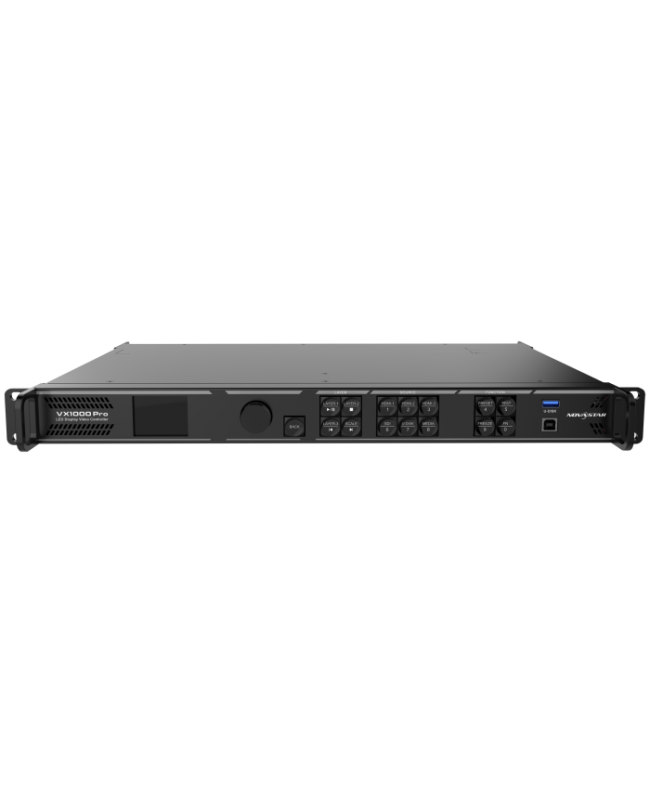

Screen configuration can be done via the front panel, NovaLCT, Unico web page and VICP app. The stylish 1U enclosure fits neatly into a 19” rack or case, making it ideal for rental companies and fixed installations.

• Internal scaling function
• Inputs: 1x 3G-SDI, 1x HDMI 2.0, 2x HDMI 1.3, 1x USB 3.0
• Outputs: 1x HDMI 1.3, 10x Ethernet, 2x optical, 1x 3D emitter output
• Internal media player
• 10 Ethernet output ports control up to 6,500,000 pixels
