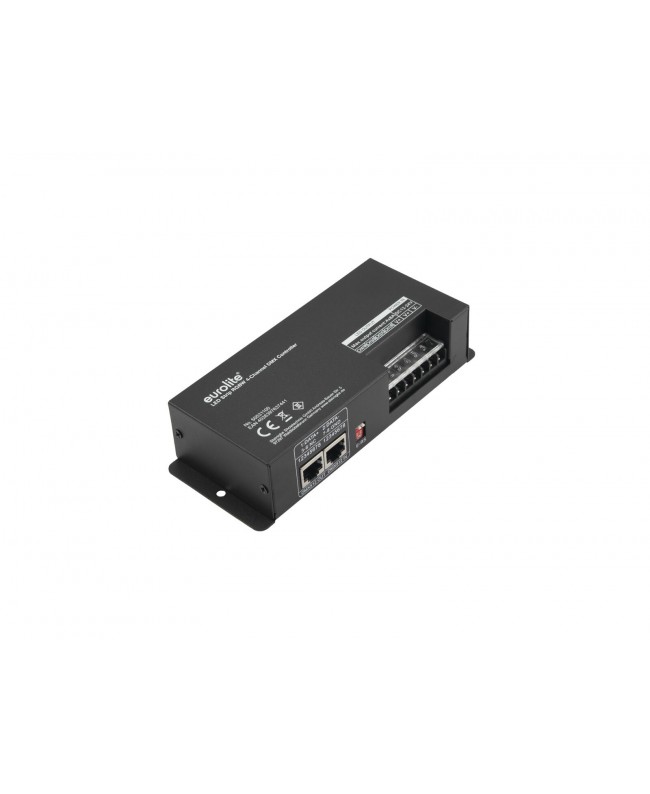

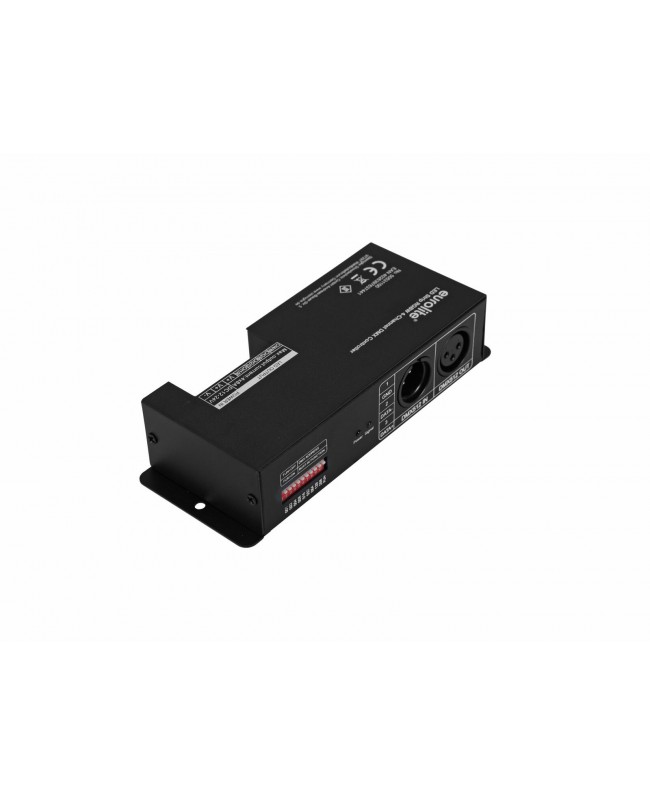

Eurolite LED Strip RGBW 4-channel DMX Controller LED Driver

Eurolite LED Strip RGBW 4-channel DMX Controller

€47.00
Tax included

4-Channel LED controller with DMX interface for RGB LEDs 12-24 V

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 14/04/2026? Order within 3 hours and 56 minutes

Compare

wishlist

Eurolite LED Strip RGBW 4-channel DMX Controller



  • Compact LED controller for controlling RGBW LEDs (12-24 V) via DMX
  • Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
  • 4 separate control channels for individual color mixing of red, green, blue and white LEDs
  • Switchable termination resistor
  • Plug-in screw terminals for connecting the LEDs and the power supply

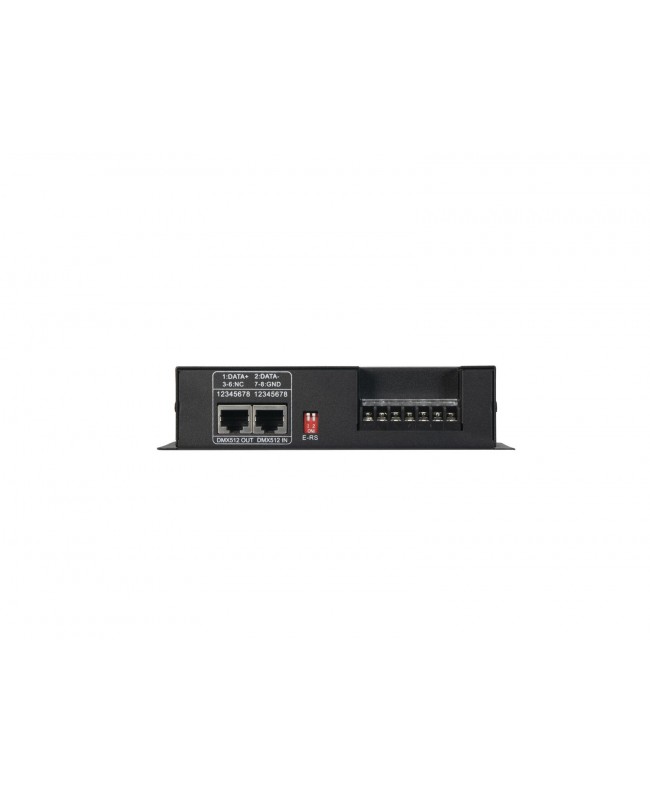

  • RJ45 jacks for serial connection
  • Rugged black metal housing
  • Integrated show programs
  • Control via stand-alone
  • For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
  • Silent operation

Scope of delivery

  • 1 x device
  • 1 x user manual
  • Power supply: 12/24V DC
  • Power consumption: Max. 384 W 12 V DC, Max. 768 W 24 V DC, Max. 96 W 12 V DC per channal, Max. 192 W 24 V DC per channal
  • Output current: Max. 4 x 8 A per channal
  • Power connection: Via screw terminal
  • Power output: Screw terminal
  • DMX channels: 4

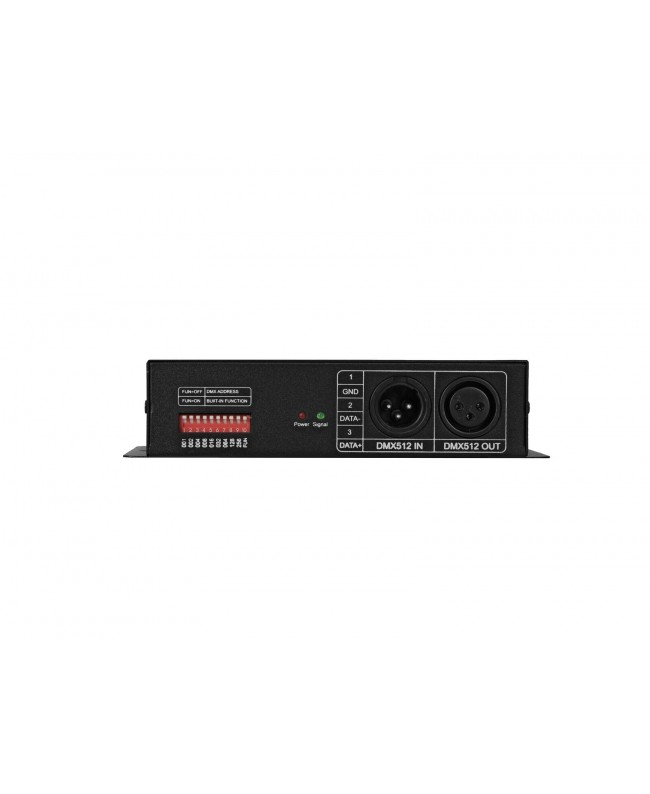

  • DMX input: 3-pin XLR (M) mounting version, 1 x RJ-45 (F) mounting version
  • DMX output: 3-pin XLR (F) mounting version, RJ-45 (F) mounting version
  • Control: Stand-alone
  • Dimensions: Length: 16.4 cm, Width: 6.6 cm, Height: 3.8 cm
  • Weight: 0.30 kg
  • Noise classification: Class 0 (no noise at all)

50531100

Data sheet

Channels
4 channels
