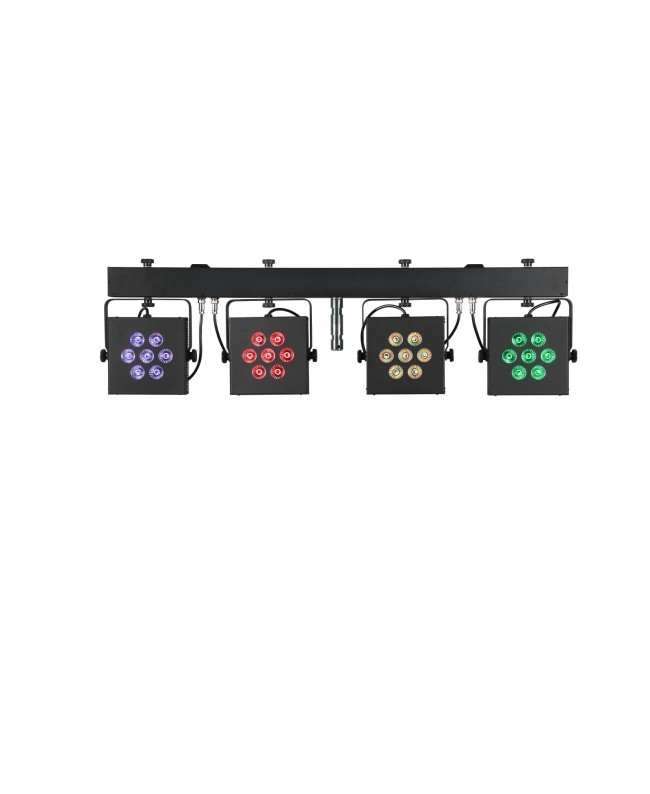

Crossbar with integrated DMX control unit and TV spigot for tripod installation
Integrated AirW radio transceiver for wireless master/slave operation
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
28 LEDs 12 W SMD 5050 6in1 HCL RGBWA/UV (homogenous color mix) 4 spots controlled separately
With a beam angle of 15°
Spot effect; UV effect; strobe effect
Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color selection; program selection; program speed adjustable; color macros
Direct color selection for 20 preset colors
20 integrated show programs
Control via stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
3 buttons on the remote control for saving your own settings
DMX fail mode (blackout; hold; full on; auto)
Flicker-free
Monochrome 4 digit 7-segment LED display
With omega bracket
Silent operation
The device is cooled by passive convection cooling
For application areas such as: Wedding/gala/events; clubs/dancing school; mobile djs / entertainer; restaurants, bars and hotels; rental
Application possibility: Suspended; on stand
Mains input and output for power linking up to 8 units
Wireless remote control: operating range up to 30m in the open air
AirW: operating range up to 70m with line-of-sight
Scope of delivery
1 x device
1 x user manual
1 x declaration of conformity
1 x power cord

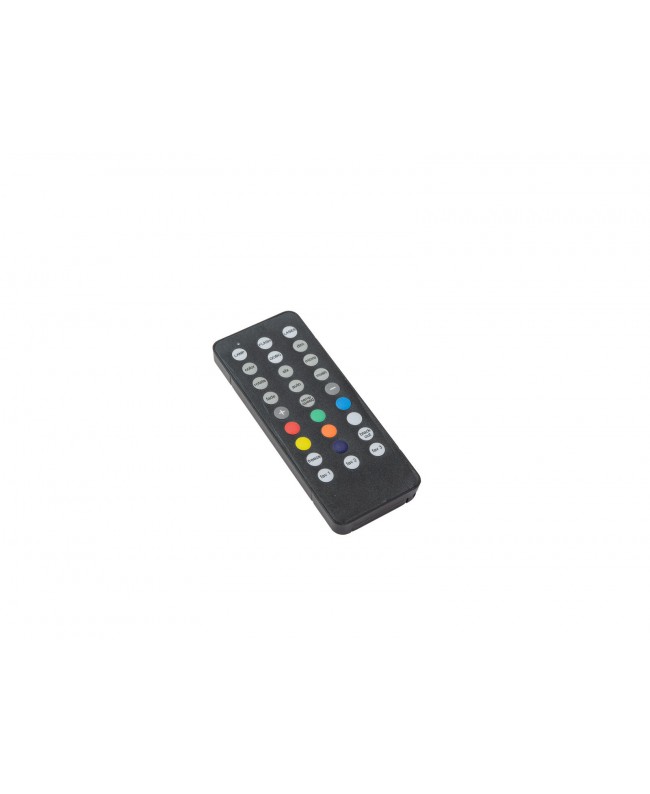

1 x remote control
1 x bag

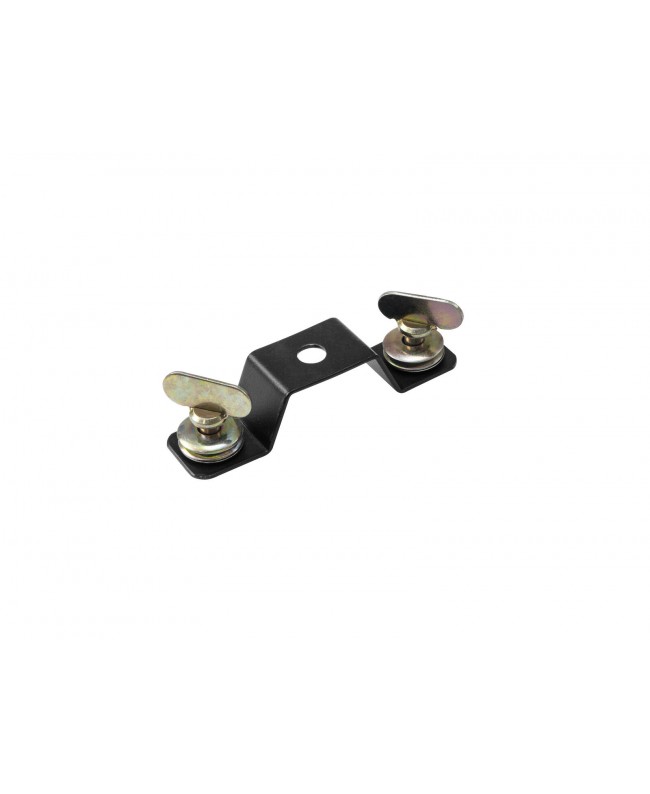

2 x omega bracket
4 x knurled screw
4 x washer
1 x battery
1 x terminating plug (power)
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 245 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction: 3 x 1.0 mm² H05VV-F
Cable length: 3 m
Power output: 1 x P-Con (gray), mounting version Bypass, 2 x IEC connector (F) mounting version fused
Device fuse: 5 x 20 mm, T 5 A fuse replaceable
Power output fuse per channel: 5 x 20 mm, T 5 A fuse replaceable
Lamp type: LED lamp
LED type: 28 x 12 W SMD 5050 6in1 HCL RGBWA/UV (homogenous color mix)
Flash rate: 0.3 - 20 Hz
DMX channels: 2; 4; 6; 10; 24; 28; 32; 34
DMX input: 1 x 3-pin XLR (M) mounting version, 1 x USB, type A
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
Projection: Flicker-free
Range: Wireless remote control: range up to 30m in the open air, AirW: range up to 70m with line-of-sight
