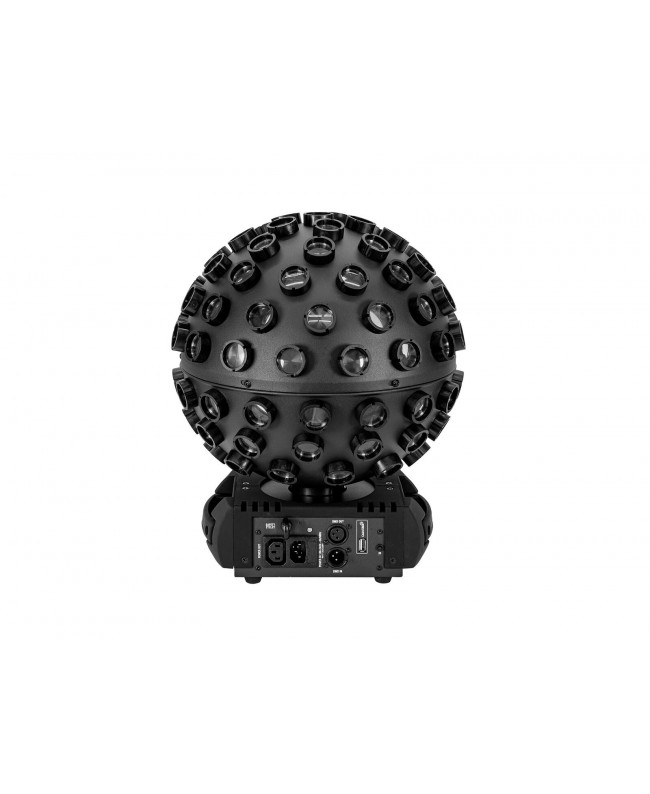

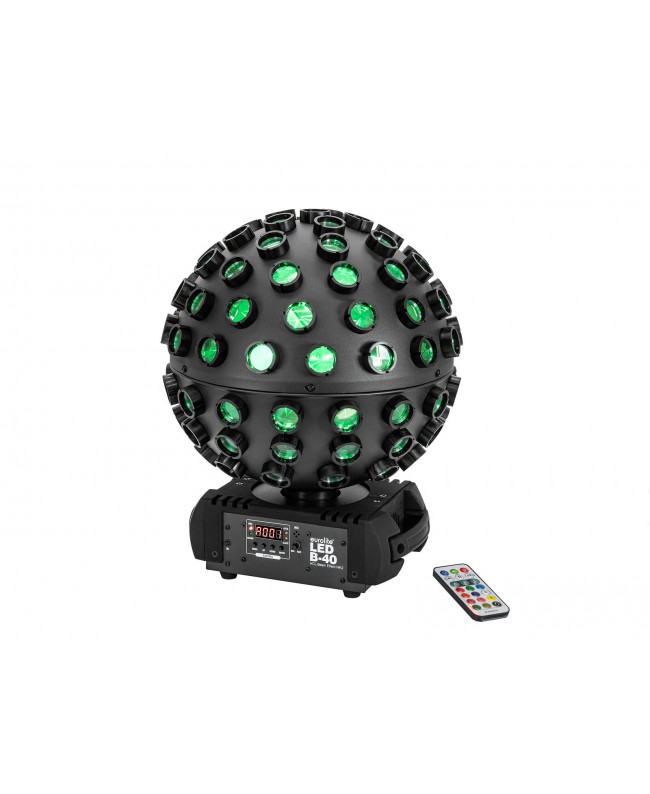

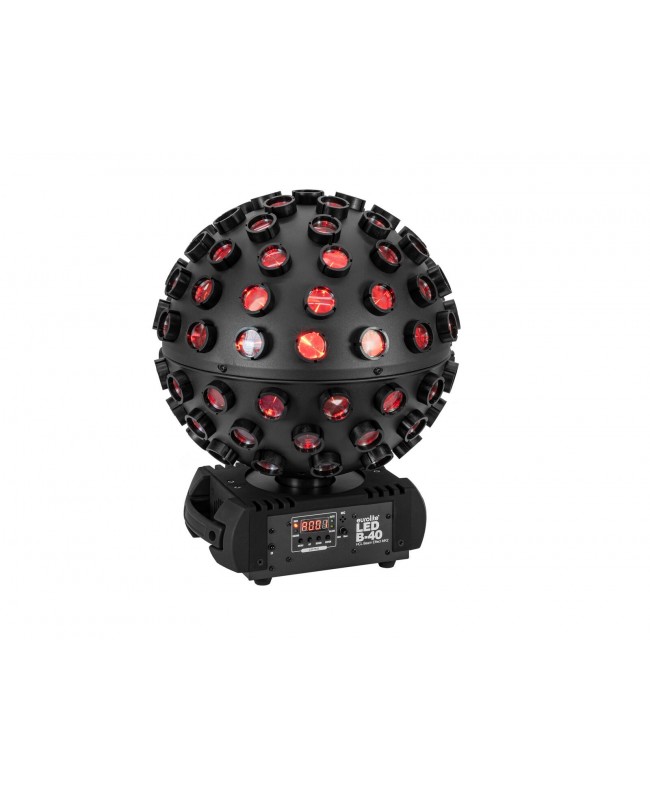

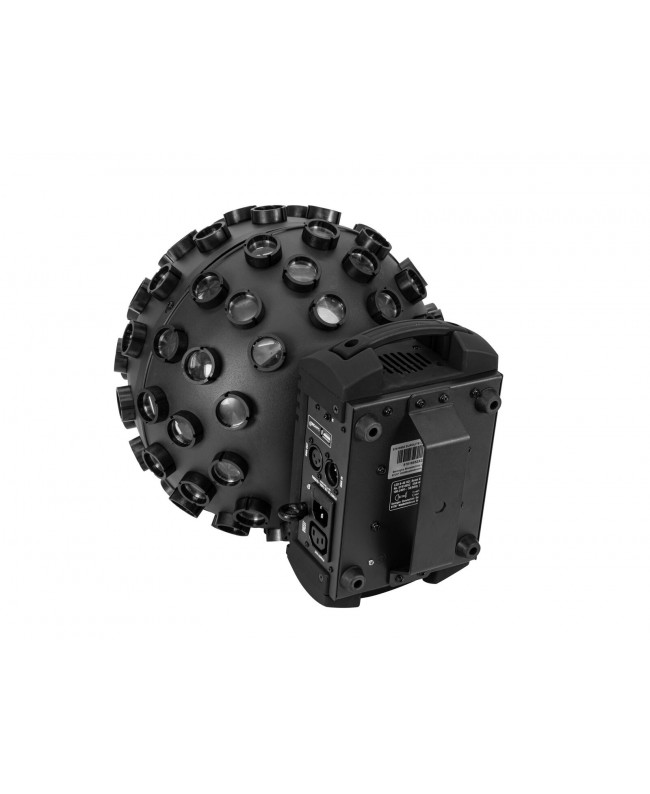

5 LEDs 10 W 6in1 HCL RGBWA/UV segments controlled separately
Rotation speed adjustable; Dimmer electronic; color blend stepless
Multi beam effect; strobe effect
8 integrated show programs
The device is cooled by passive convection cooling
Control via IR remote control; stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
Preprogrammed in Light'J; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief

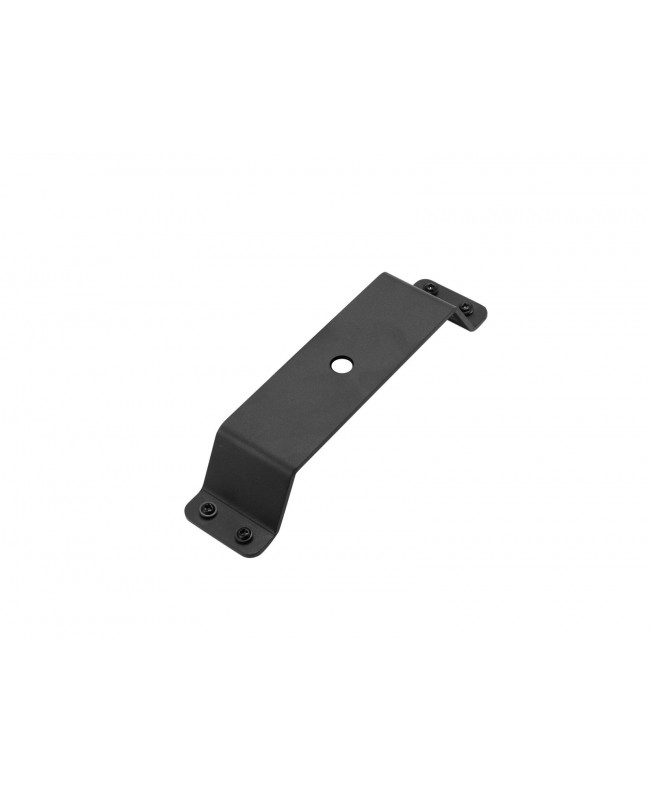

With omega bracket
Monochrome 4 digit 7-segment LED display
For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; advertisement/Shop window
Application possibility: Standing; suspended
Scope of delivery
1 x light effect
1 x power cord
1 x omega bracket
1 x remote control
4 x screw
4 x washer
1 x user manual
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 56 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output: IEC connector (F) mounting version
Fuse: T 1.6 A fuse replaceable
Lamp type: LED lamp
LED type: 5 x 10 W 6in1 HCL RGBWA/UV
Flash rate: 0 - 20 Hz
DMX channels: 3; 12; 23
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: IR remote control; stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
Preprogrammed in: Light'J; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Housing color: Black matte
Attachment system: Omega bracket
Display type: Monochrome 4 digit 7-segment LED display
Material: Metal; plastic
Dimensions: Length: 32.00 cm, Width: 32.00 cm, Height: 39.00 cm
Weight: 4.22 kg
Noise classification: Class 2 (slight noise)
Cable construction: 3 x 1.0 mm² H05VV-F
Cable length: Approx. 1.5 m
Diameter mounting holes: 1 x Ø13mm; 4 x Ø4mm
Material: Metal, 3 mm
Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
Special product: Not designed for household room illumination
