Eurolite LED TMH Bar B240 Moving Head Beam


€974.00
€775.00 -21%
Tax included
Lowest price within the last 30 days: €775.00

LED lighting system with 4 individually controllable 60 W moving heads


Qty

In Stock

Delivery

Do You want Your order by Monday, 17/08/2026? Order within 10 hours and 38 minutes

Free shipping


wishlist

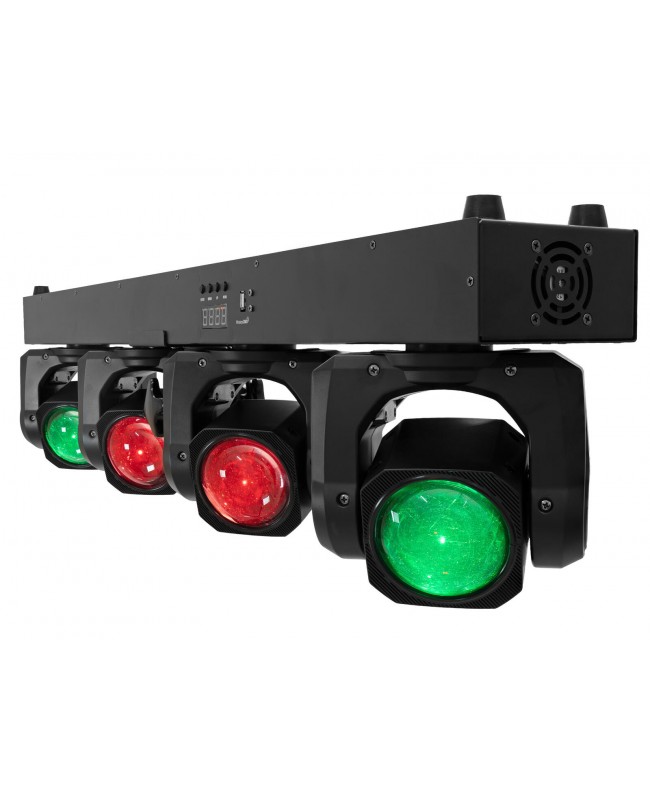

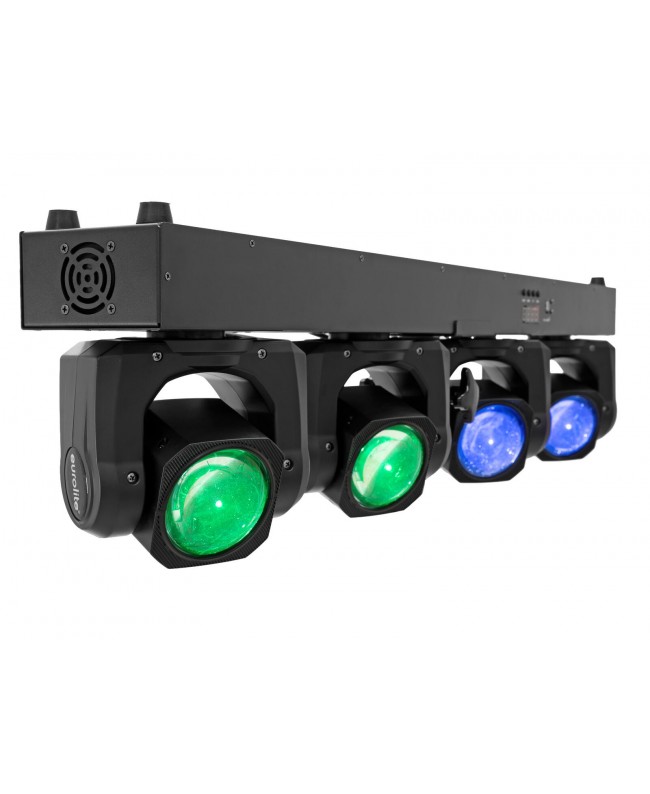

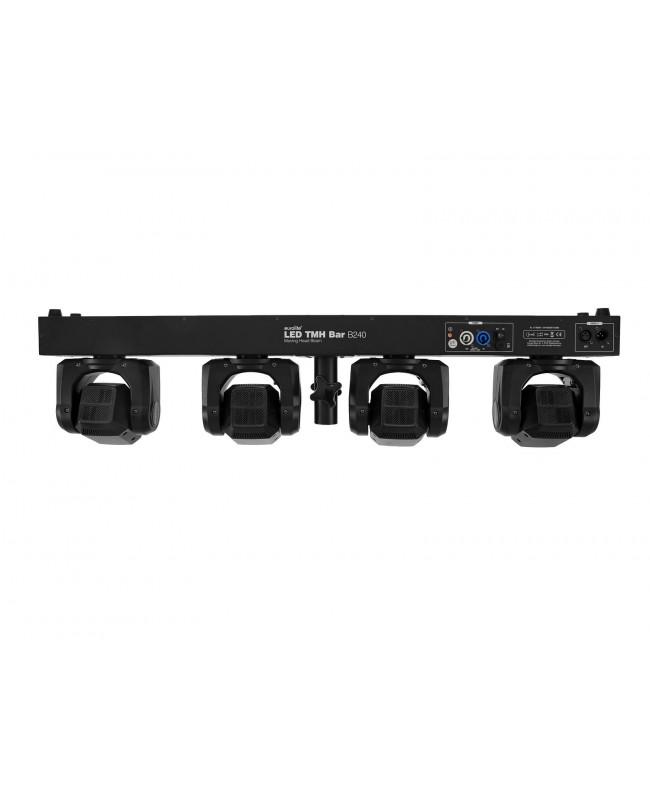

Eurolite LED TMH Bar B240 Moving Head Beam



This moving head bar is equipped with four beam moving heads, each producing a very bright and narrow beam based on the colors red, green, blue, and white.The bar can be used flexibly; mounted on a stand, placed on the floor, or suspended from a truss. Special attention has been given to ease of control, ensuring that even smaller DMX controllers can operate the bar without difficulty. Dedicated modes allow a variety of positions, movements, chases, and effects to be created using only a few DMX channels.A great example of a suitable controller is the Eurolite Color Chief, which works perfectly with this bar.

  • 4 LEDs 60 W SMD 6065 4in1 RGBW
    moving lights effects controlled separately
  • Positioning within 540° PAN, 180° TILT
  • Exact positioning (16 bit resolution)
  • Dimmer electronic; color selection; Motion macros adjustable; color macros adjustable
  • Beam effect
  • 22 integrated show programs
  • The device is cooled by cooling fan at the base; cooling fan at the head
  • Control via stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Fixtures available for Light'J; Light Captain; Colorchief
  • Flicker-free
  • DMX fail mode (hold; blackout)
  • With a beam angle of 2°
  • With omega bracket

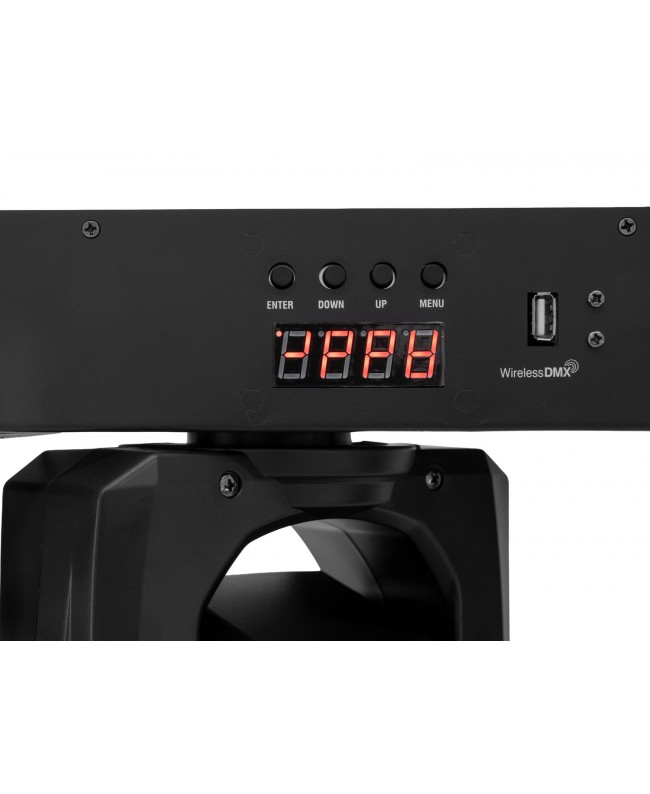

  • 4 digit 7-segment LED display
  • 4 x rubber feet
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile use; stage; mobile djs / entertainer; restaurants, bars and hotels
  • Application possibility: Standing; suspended; on stand

Scope of delivery

  • 1 x moving light
  • 1 x user manual
  • 1 x power cord
  • 2 x omega bracket
  • 2 x safety eyelet
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 230 W
  • Protection class: Protection class I

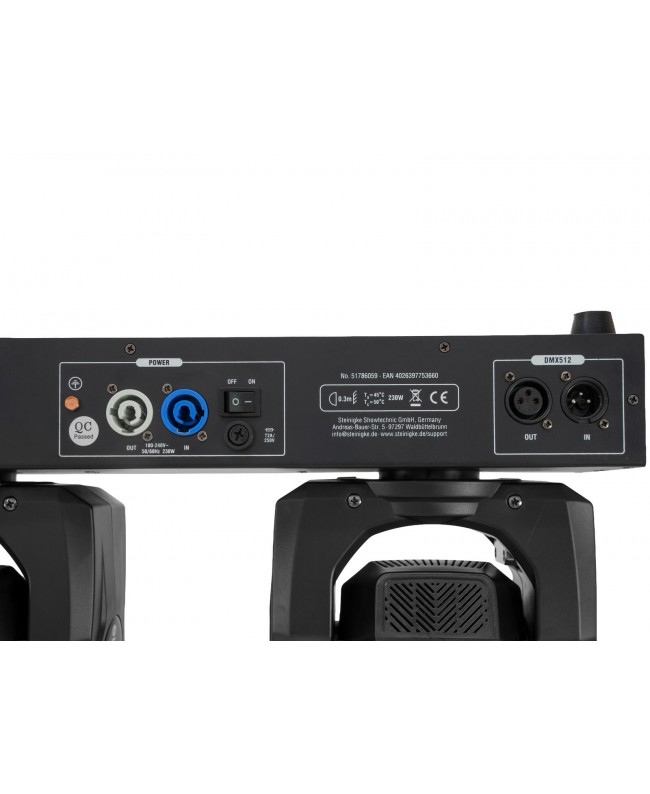

  • Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
  • Cable construction: 3 x 1.0 mm² H05VV-F
  • Power output: P-Con (gray), mounting version
  • Fuse: 5 x 20 mm, T 2 A
  • Lamp type: LED lamp
  • LED type: 4 x 60 W SMD 6065 4in1 RGBW
  • Max. TILT movement: 180° exact positioning (16 bit resolution)
  • Max. PAN movement: 540° exact positioning (16 bit resolution)
  • Flash rate: 2 - 15 Hz
  • DMX channels: 4; 8; 13; 15; 23; 27; 40; 48
  • DMX input: 3-pin XLR (M) mounting version
  • DMX output: 3-pin XLR (F) mounting version
  • Cooling: 2 x cooling fan at the base, 4 x cooling fan at the head
  • Control: Stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Fixtures available for: Light'J; Light Captain; Colorchief
  • Projection: Flicker-free
  • PWM frequency: 11000 Hz
  • DMX fail mode: Hold; blackout
  • Beam angle: 2°
  • Beam angle (1/2 peak): 2°
  • Beam angle (1/10 peak): 3°
  • Lamp life: 20000 h
  • Housing color: Black
  • Attachment system: Tube: Ø 35mm, 2x omega bracket
  • Display type: 4 digit 7-segment LED display
  • Control elements: Power switch
  • USB port: Type A
  • Transport aid: 4 x rubber feet
  • Diameter mounting holes: 2 x Ø10mm
  • Material: Steel
  • Dimensions: Width: 100.0 cm, Depth: 17.5 cm, Height: 25.5 cm
  • Weight: 12.55 kg
  • Noise classification: Class 2 (slight noise)
  • Special product: Not designed for household room illumination
  • Intended use: Show effect lighting
