Eurolite LSD-20 MK2 (H)2.56m x (W)1.28m LED Effects

Eurolite LSD-20 MK2 (H)2.56m x (W)1.28m

€3,239.00
Tax included

LED soft displays

Qty

In Stock

Delivery

Do You want Your order by Friday, 14/08/2026? Order within 0 hours and 39 minutes

Free shipping

Compare

wishlist

Eurolite LSD-20 MK2 (H)2.56m x (W)1.28m



  • Flexible displays with tricolor RGB LEDs (type SMD 5050) for bright and colorful projection of videos and graphics
  • Improved version with even brighter LEDs and new angled connectors
  • Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances

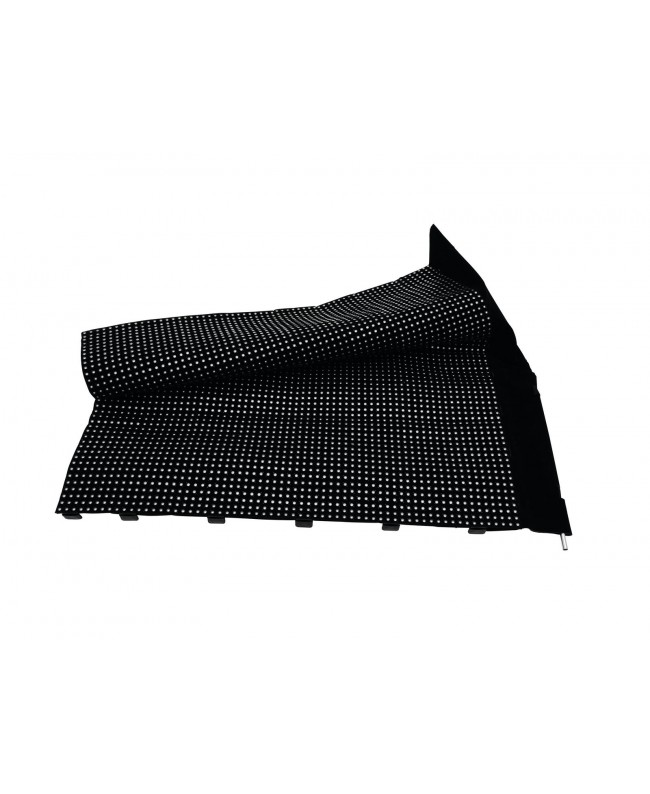

  • Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles

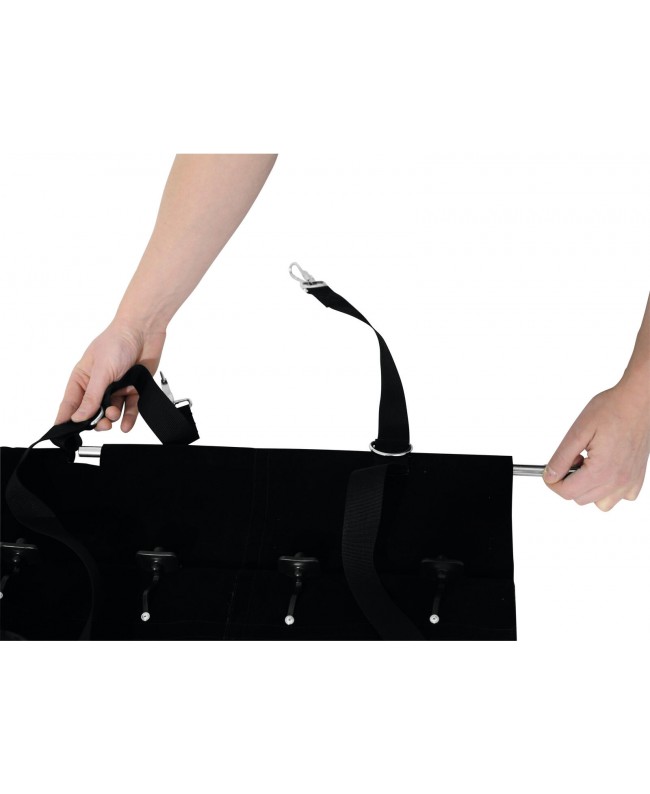

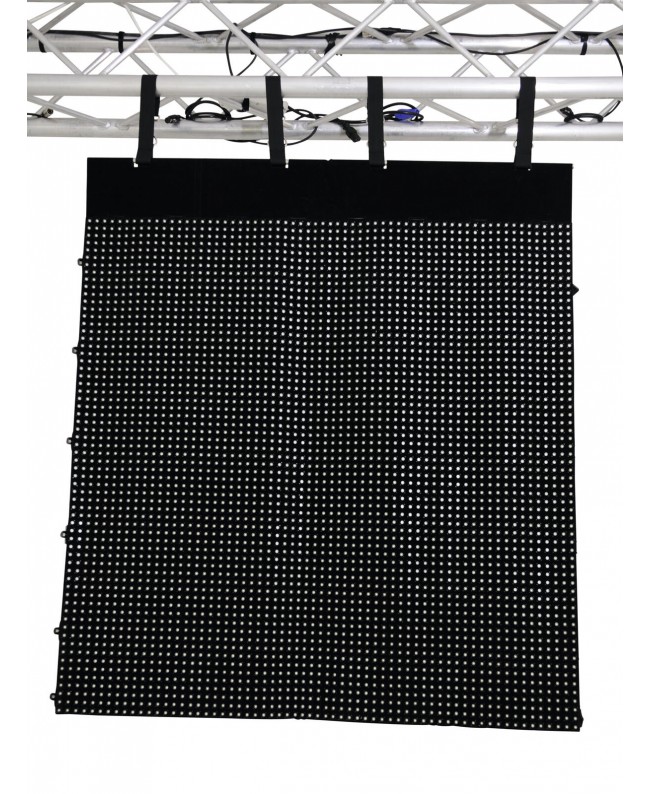

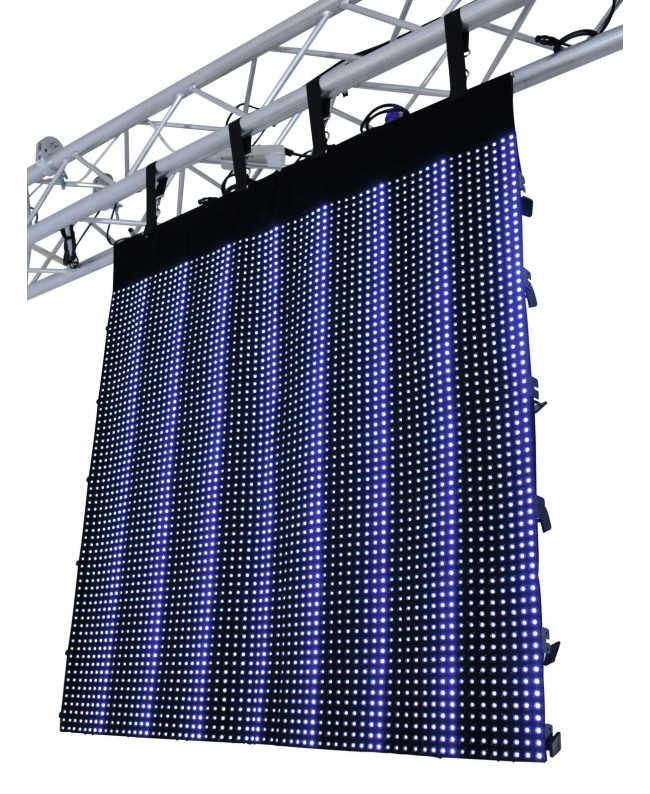

  • Truss suspension via built-in belts

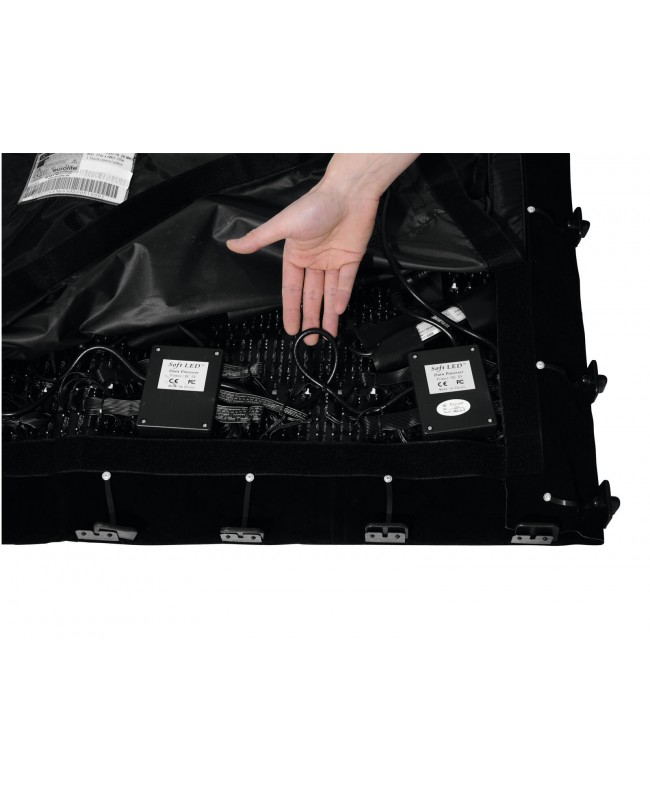

  • Easy maintenance - LEDs can be replaced without difficulty
  • Controllable via optional network components and PC software
  • All-in-one control system T9 (80503301): network interface and software LED Show T9 - ideal system for mobile use with notebooks with 1-gigabit NIC
  • Control system LED studio: receiver interface (80503311), PCI sending card and software LED Studio (80503130)
  • Custom sizes available upon request (in 0.32 m units)
  • 8192 LEDs SMD 5050 3in1 RGB (homogenous color mix)
  • Easy to assemble
  • Space-saving construction
  • Space-saving storing
  • Mains input and output for power linking up to 8 units
  • Water repellent
  • Various versions available
  • B1 low flammability

Scope of delivery

  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 68.00 W
  • IP classification: IP44
  • LED type: 8192 x SMD 5050 3in1 RGB (homogenous color mix)
  • Setup: Easy to assemble; Space-saving construction; space-saving storing
  • Beam angle (1/2 peak): 110°
  • Image: Max. 64x124 px, Pixel pitch 20 mm, Pixeldensity 2500/m², Brightness 3600cd/m²
  • Lamp life: 100000 h
  • Material: , water repellent
  • Dimensions: Width: 128 cm, Height: 256 cm
  • Weight: 31.72 kg
  • Display port: DVI/RJ45
  • Display mode: synchronous to video source
  • Drive mode: 1/8 scan
  • Screen resolution: max. 1280 x 1024 (LED Studio)
  • Frame rate: 60 Hz
  • Data refresh rate: 600 Hz
  • Colors: 16.7 million (R 256, G 256, B 256)
  • Operating temperature: -10 to 45 °C
  • Humidity: 10 to 90 %

80503260
