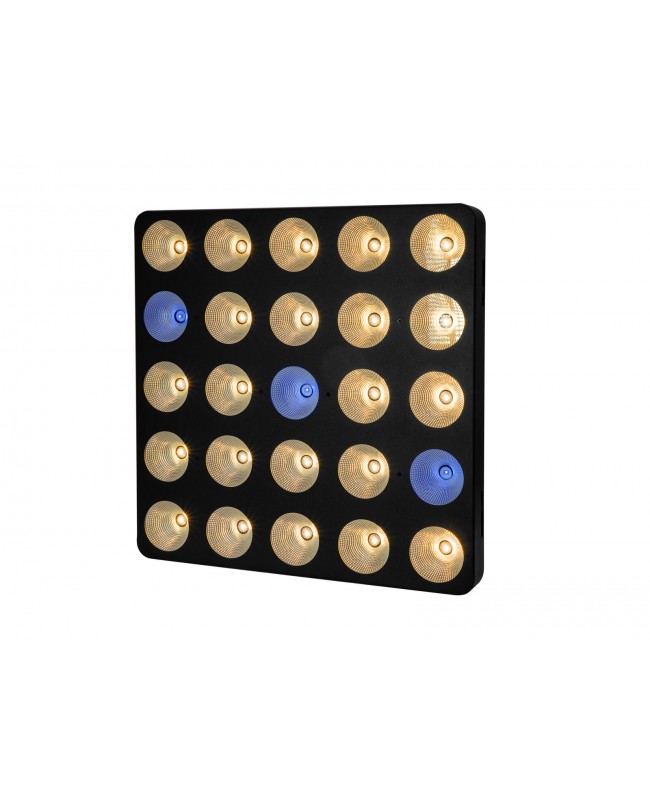

Eurolite LED Pixel Matrix Panel 5x5 RGB/WW LED PANEL
  • -20%

Eurolite LED Pixel Matrix Panel 5x5 RGB/WW

€608.00
€488.00 -20%
Tax included
Lowest price within the last 30 days: €488.00

Matrix spotlight with RGB/WW LEDs, Pixel control and macros for sequences, letters and numbers

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 23/06/2026? Order within 9 hours and 11 minutes

Free shipping

Compare

wishlist

Eurolite LED Pixel Matrix Panel 5x5 RGB/WW



  • Create sensational light effect surfaces by connecting several devices
  • 25 LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
    LEDs controlled separately
  • Color change; color fade; color animations with two adjustable colors; Dimmer electronic
  • Blinder effect; matrix effect; strobe effect
  • 9 integrated show programs
  • The device is cooled by temperature-controlled fan
  • Control via DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
  • Fixtures available for Light Captain
  • Flicker-free
  • DMX fail mode (hold; blackout)
  • With a beam angle of 45°
  • With mounting bracket
  • Multicolor LCD display
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; rental
  • Very quiet working noise
  • Application possibility: Standing; suspended; on stand

Scope of delivery

  • 1 x device
  • 1 x user manual
  • 1 x power cord
  • 2 x safety eyelet
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 115 W
  • IP classification: IP20
  • Protection class: Protection class I

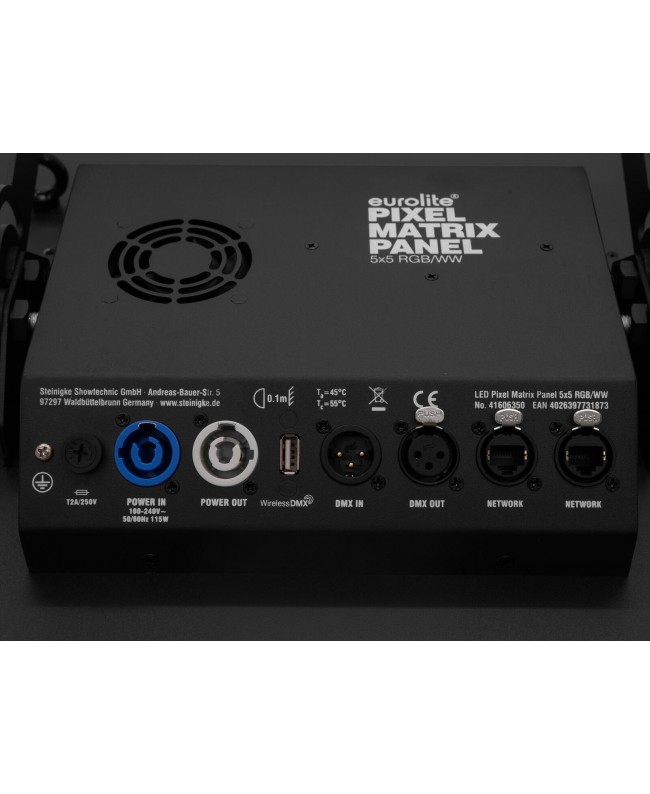

  • Power connection: Mains input via P-Con (blue), mounting version
  • Cable construction: 3 x 1.0 mm² H05VV-F
  • Cable length: 1.45 m
  • Power output: 1 x P-Con (gray), mounting version
  • Fuse: 5 x 20 mm, T 2 A fuse replaceable
  • Lamp type: LED lamp
  • LED type: 25 x 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
  • DMX channels: 4; 10; 15; 100; 102
  • DMX input: 3-pin XLR (M) mounting version
  • DMX output: 3-pin XLR (F) mounting version
  • Network connection: Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
  • Cooling: Temperature-controlled fan
  • Control: DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
  • Fixtures available for: Light Captain
  • Projection: Flicker-free
  • DMX fail mode: Hold; blackout
  • Beam angle: 45°
  • Beam angle (1/2 peak): 45°
  • Beam angle (1/10 peak): 82°
  • Housing color: Black
  • Attachment system: Mounting bracket
  • Display type: Multicolor LCD display
  • USB port: Type A
  • Diameter mounting holes: 3 x Ø10mm
  • Material: Metal
  • Dimensions: Width: 45.0 cm, Depth: 10.6 cm, Height: 45.0 cm
  • Weight: 9.00 kg
  • Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
  • Special product: Not designed for household room illumination
  • Intended use: Show effect lighting

41606350

Data sheet

Color
Black
Giorni di elaborazione
3
