Eurolite LED BP-9 Panel RGBW+CW

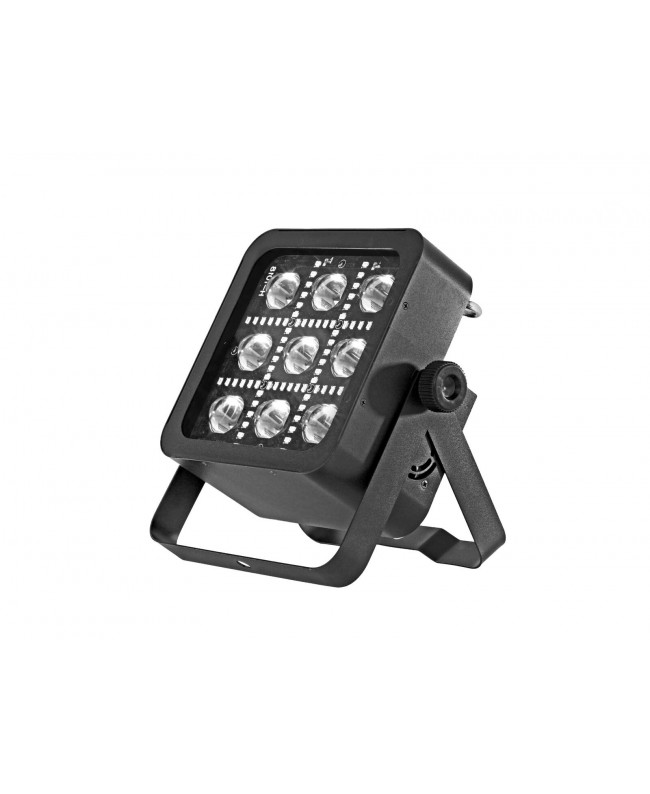

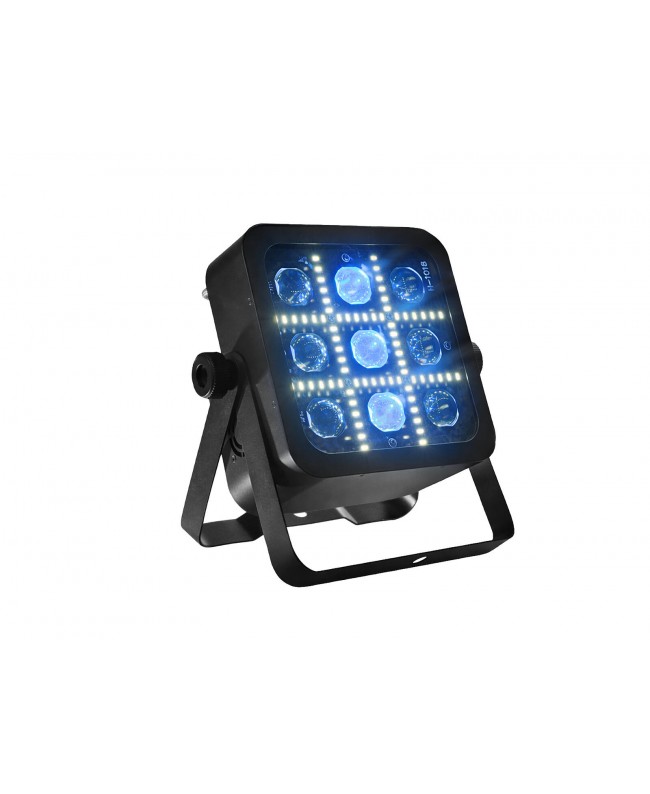

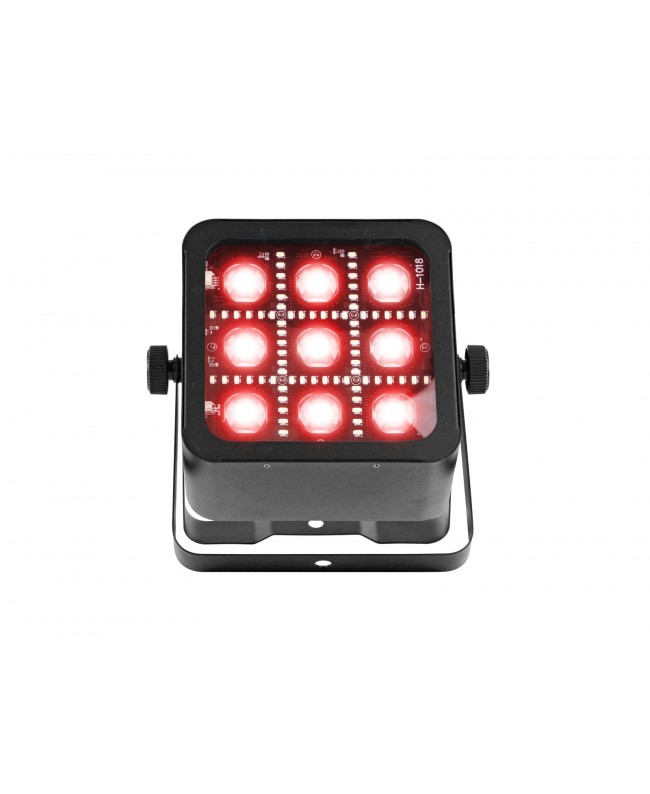

This fixture offers more than meets the eye. Nine lenses focus the light into an extremely narrow 2° beam. Behind each lens is a 12-watt RGBW LED, and each can be controlled individually, creating a powerful beam matrix.The system is complemented by 72 cold white LEDs positioned between the lenses. These are arranged in four controllable lines and are designed for strobe and blinder effects.For control, multiple DMX modes are available. In the most advanced mode with 43 DMX channels, all functions can be controlled individually. Alternatively, reduced modes with 6 or 12 channels still offer a wide range of creative possibilities.

• 9 LEDs 12 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
  LEDs controlled separately
• 72 LEDs 0.5 W SMD 5730 cold white (CW)
  4 segments controlled separately
• Dimmer electronic; color blend stepless; foreground color; background color
• Beam effect; strobe effect
• 9 integrated show programs
• Direct color selection for 31 preset colors
• Control via stand-alone; sound to light via microphone; master/slave function; DMX
• DMX fail mode (hold; blackout)
• With a beam angle of 2°
• With double bracket
• 4 digit 7-segment LED display

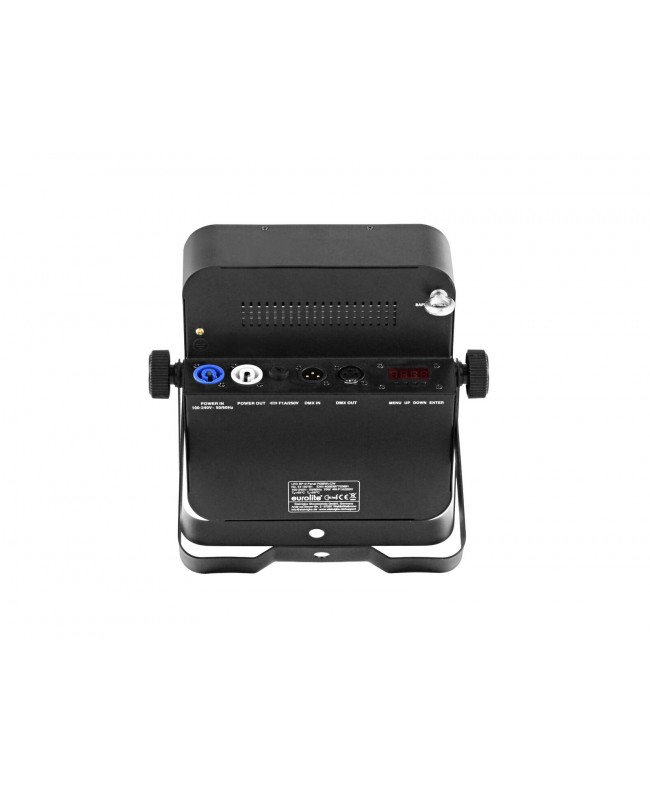

• Mains input and output for power linking up to 8 units
• The device is cooled by cooling fan
• For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; party room; restaurants, bars and hotels
• Application possibility: Standing; suspended; on stand
• Fixtures available for Light Captain; GDTF (GrandMA3)

Scope of delivery

• 1 x spotlight
• 1 x power cord
• 1 x user manual
• 2 x mounting bracket
• 2 x knurled screw
• 4 x washer
