Cameo MATRIX PANEL 10 W RGB


€982.00
€514.00 -48%
Tax included
Lowest price within the last 30 days: €514.00

5 X 5 RGB LED Matrix Panel with Single Pixel Control


Qty

In Stock

Delivery

Do You want Your order by Monday, 20/07/2026? Order within 5 hours and 48 minutes

Free shipping


wishlist

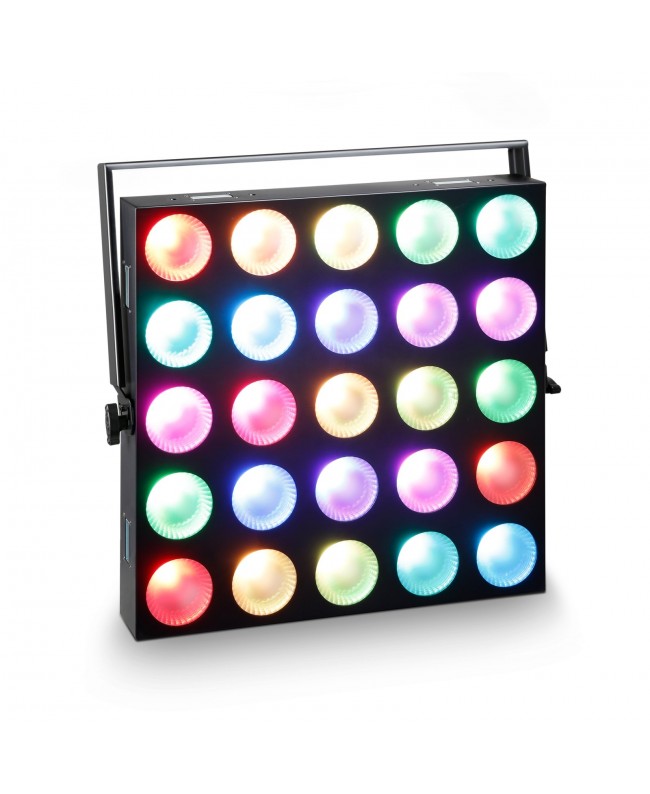

Cameo MATRIX PANEL 10 W RGB

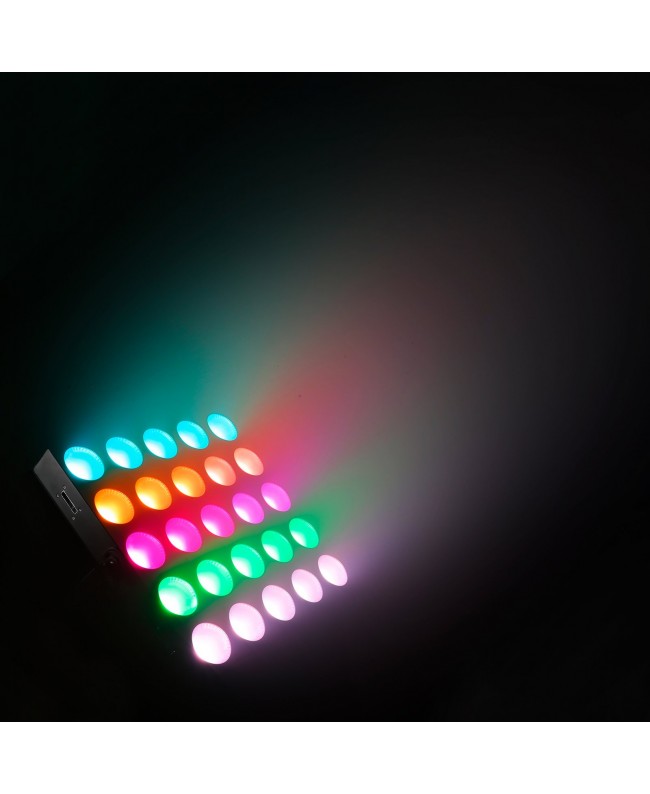

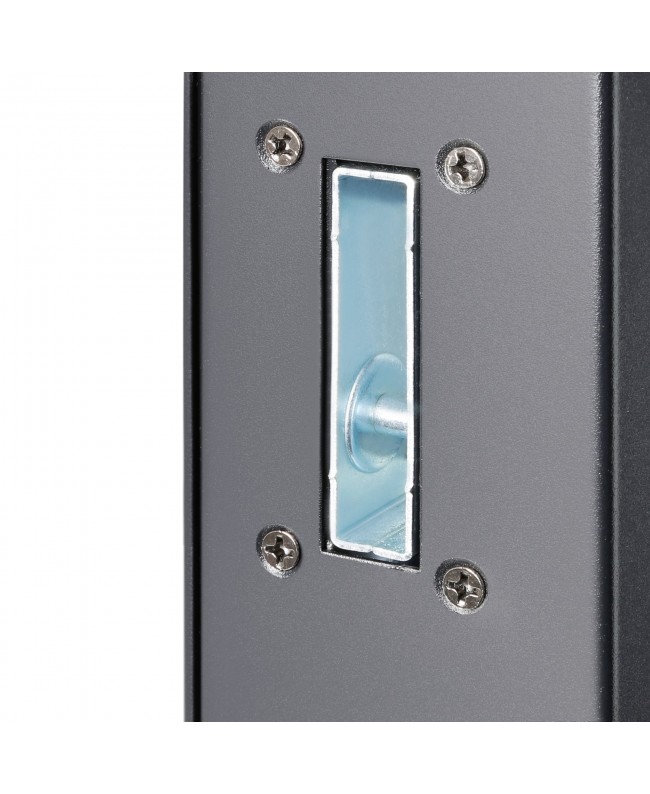

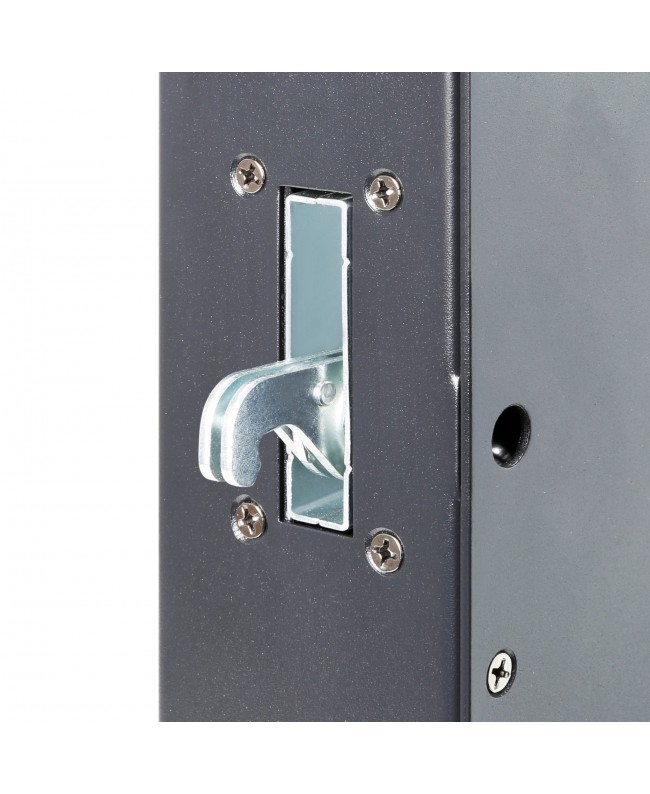

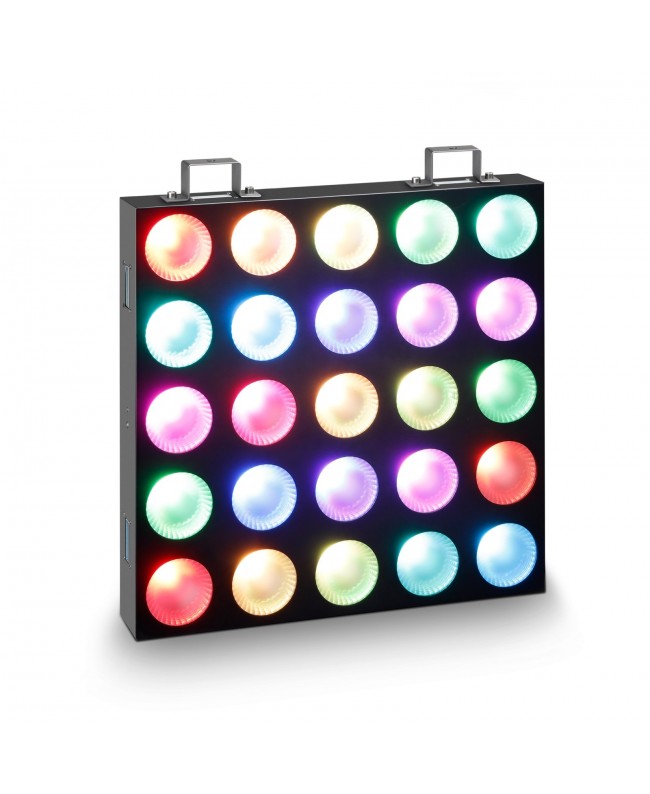

With a 5 x 5 array of 10 watt RGB LEDs, 40° beam spread and flicker-free performance the Cameo Matrix Panel creates exciting blinder, chase and strobe effects. Featuring powerful single pixel control, it is the perfect choice for mapping alphabetic characters, numerals and complete messages. Recessed latches on all sides enable joining multiple panels for large, impressive backdrops.

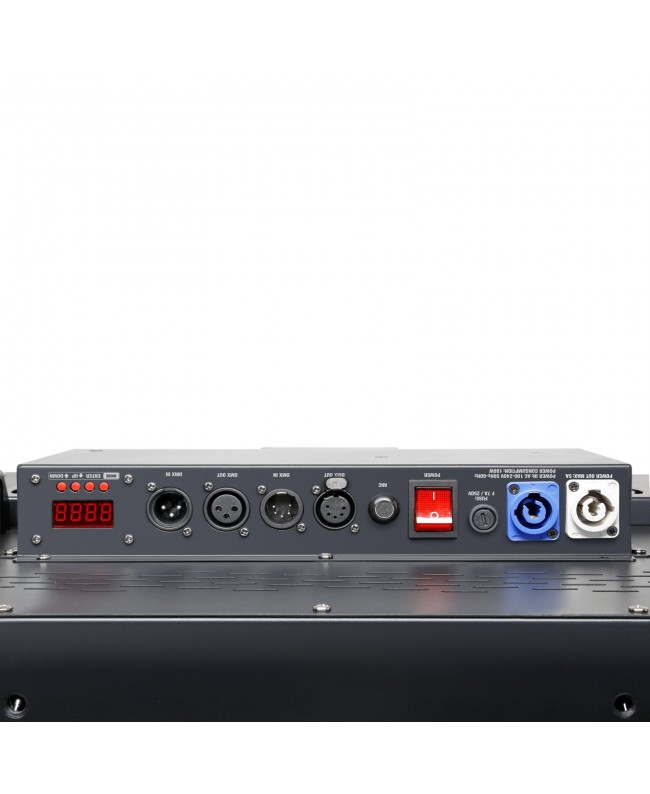

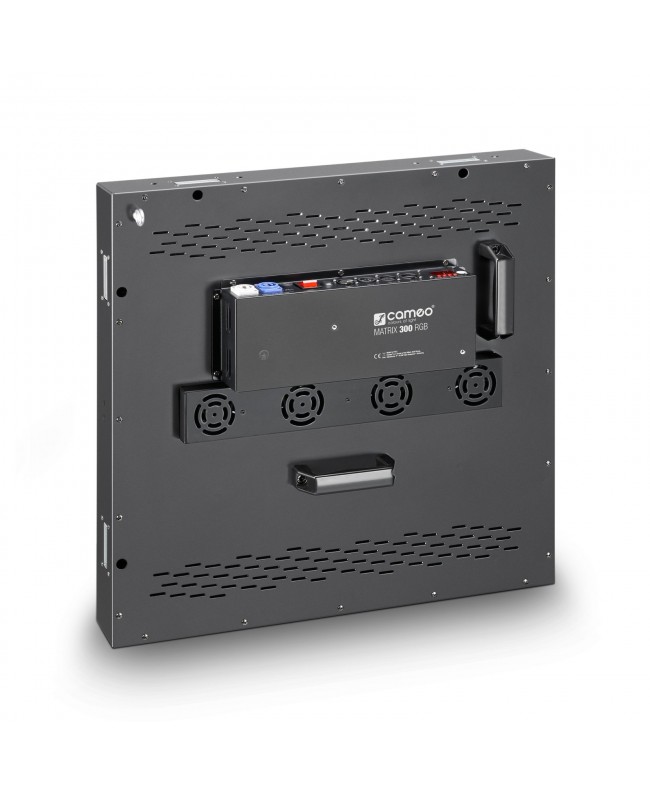

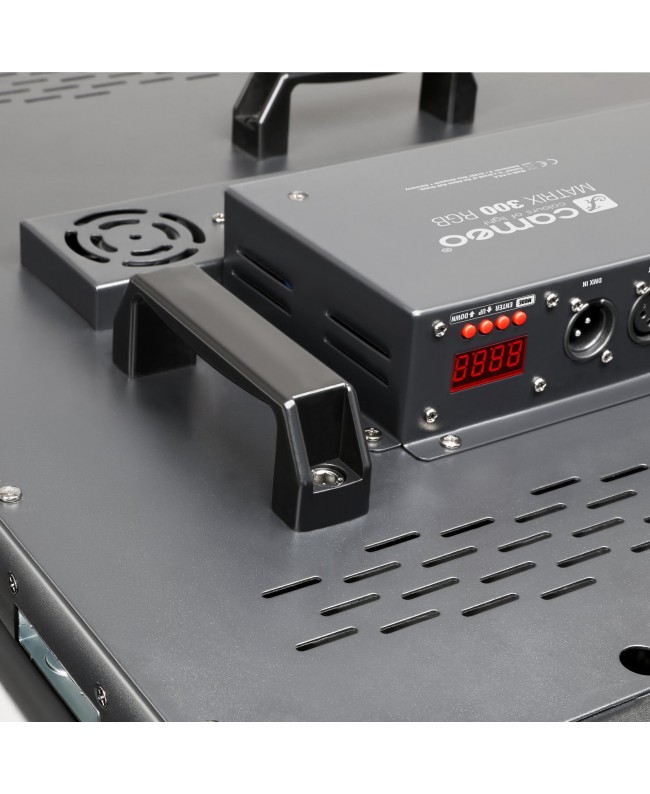

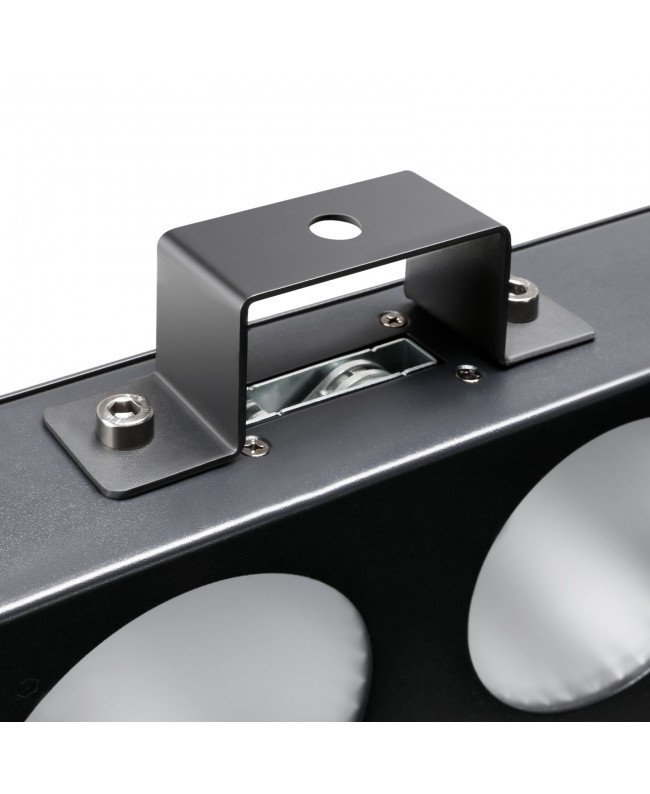

The Matrix Panel 10 RGB includes five modes of DMX control, sound activation, built-in auto run programs and 4 selectable dimming curves. It sports master, slave and standalone capability, a bright 4-button display plus a low-noise fan for cool and quiet operation. The ultra flat all-metal housing provides 3 and 5-pin DMX inputs and outputs and Power Twist connectors for easy daisy-chaining. The Matrix Panel comes with a safety eye, swivel bracket and two omega brackets and runs on all voltages from 100 - 240 volts AC.

  • 5 x 5 Matrix Panel with single pixel control
  • 25 x 10 W RGB LEDs
  • 5 DMX modes, sound activation and built-in auto run programs
  • Master, slave and standalone capability
  • Blinder, chase and strobe effects
  • Alphabetic character and numeral mapping
  • 4 selectable dimming curves
  • Flicker-free operation
  • Ultra flat housing with low-noise fan
  • Even more impressive in multiples
  • LED data: 25 x 10 W RGB LED
  • Illuminance: 6,950 lx (1 m / 0.0 )
  • Beam/Field angle: Beam: 40°
  • LED PWM frequency: 8,000 Hz
  • Controller protocols: DMX512
  • Number of DMX control modes: 5
  • Stand alone operating modes: Master/slave
  • Stand alone operating modes: Sound controlled
  • Data in connector: XLR 3-pole male
  • Data in connector: XLR 5-pole male
  • Data out connector: XLR 3-pole female
  • Data out connector: XLR 5-pole female
  • Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
  • Rated power: 180 W
  • Mains fuse: T3AL/250 V
  • Cabinet material: Metal
  • Colour: Black
  • Cooling system: Convection cooling
  • Protection class: IP20
  • Ambient temperature: 10 - 40 °C
  • Maximum air humidity (non-condensing): 85 %
  • Width: 580 mm
  • Height: 580 mm
  • Depth: 125 mm
  • Weight: 13.7 kg
  • Required Accessories: 2x Omega-Montagebügel, LED MATRIX PANEL, Sicherungsöse, verstellbarer Schwenkbügel

CLMP10WRGB

Data sheet

Color
Black
