EGO Display Seamless Professional Scaler and Switcher



The 2K L1-S video processor is a professional device designed for seamless conversion and switching between different video sources.

It offers advanced EDID management, allowing optimal compatibility with various devices. It supports the Picture-in-Picture (PIP) function, allowing multiple sources to be displayed simultaneously in any position and size. In addition, it is equipped with two integrated transmission cards and an automatic input backup system, ensuring reliable operation even in the event of problems with the main source.

The device allows advanced customization, with over 2.5 million possible combinations of output resolutions, and supports cascading, useful for complex configurations. Finally, control is via an open protocol, offering flexibility in integration with other systems.

  • User benefits
  • Smooth switching between video sources without visible interruptions
  • Picture-in-Picture (PIP) for displaying multiple contents simultaneously in any position and size
  • Advanced EDID management for optimum compatibility with various devices
  • Cascading for complex and scalable configurations
  • Two built-in transmission cards for greater operational efficiency
  • Automatic input backup for reliable operation even in the event of failure
  • Open protocol control for flexible integration with other systems
  • Areas of use
  • Live events
  • Presentations
  • Broadcast and video production
  • Control and monitoring
  • Inputs (standard): 1 x DVI 1 x HDMI 1 x VGA 1 x
  • CVBS Inputs (optional): 1 x
  • SDI Outputs (standard): 2 x DVI 1 x
  • VGA Operation: RS232 open protocol control
  • Input formats: DVI -
  • VESA: 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200, 2048 x 1152 HDMI -
  • SMPTE standards: 480i, 576i, 720p, 1080i, 1080p -
  • VESA: 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 960, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1920 x 1080, 1920 x 1200, 2048 x 1152 VGA - 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200 CVBS -
  • SMPTE: 480i, 576i YPbPr -
  • SMPTE: 480i, 576i, 480P, 576P, 720p, 1080i, 1080p SDI - 480i, 576i, 720p, 1080i, 1080p, 1080psf
  • SMPTE: 720p, 1080p VESA:1024 x 768, 1280 x 720, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1920 x 1080, 1920 x 1200, 2048 x 1152, 2560 x 816, 1024 x 1280, 1152 x 1152, 1280 x 1280, 1536 x 1536, 2560 x 1024, 2560 x 1600, 3840 x 540
  • SDI: SD-SDI, HD-SDI, 3G-SDI
  • VGA: VGA-UXGA HDMI 1.3
  • DVI: single link, dual link
  • Input power: 100 - 264 V AC (typical 110 / 220 V AC ) 50/60 Hz
  • Max. power: 20 W
  • Temperature: -25 to 55 ℃ (typical 25 ℃)
  • Operating humidity: 20 - 90%

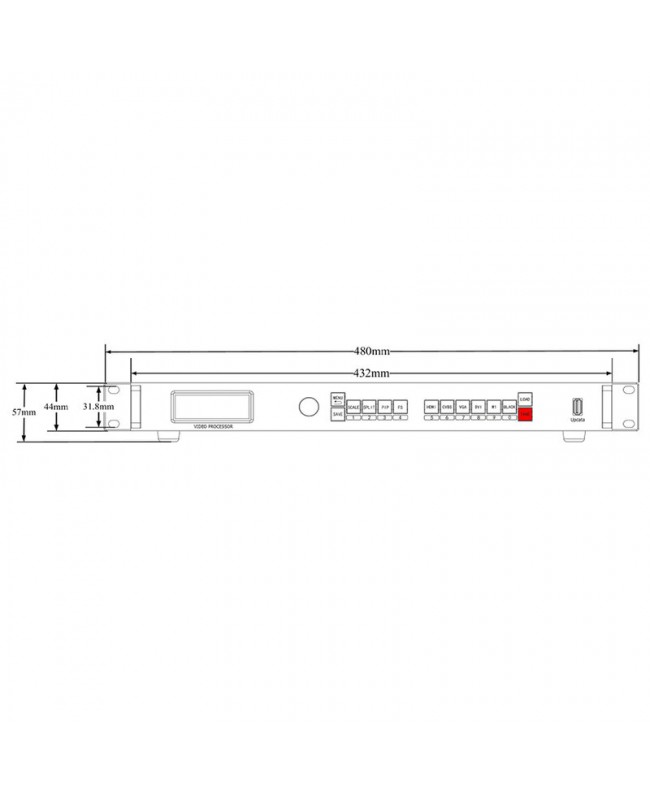

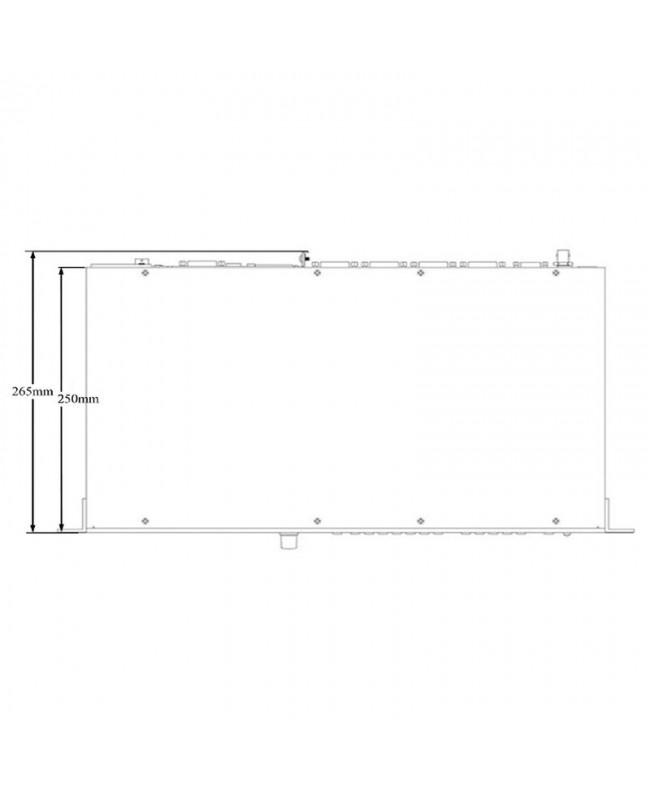

  • Device dimensions: 48 x 26.5 x 4.4 cm
  • Packed dimensions: 52 x 40 x 15 cm
  • Device weight: 2 kg
  • Packed weight: 3 kg

LED-L1-S
