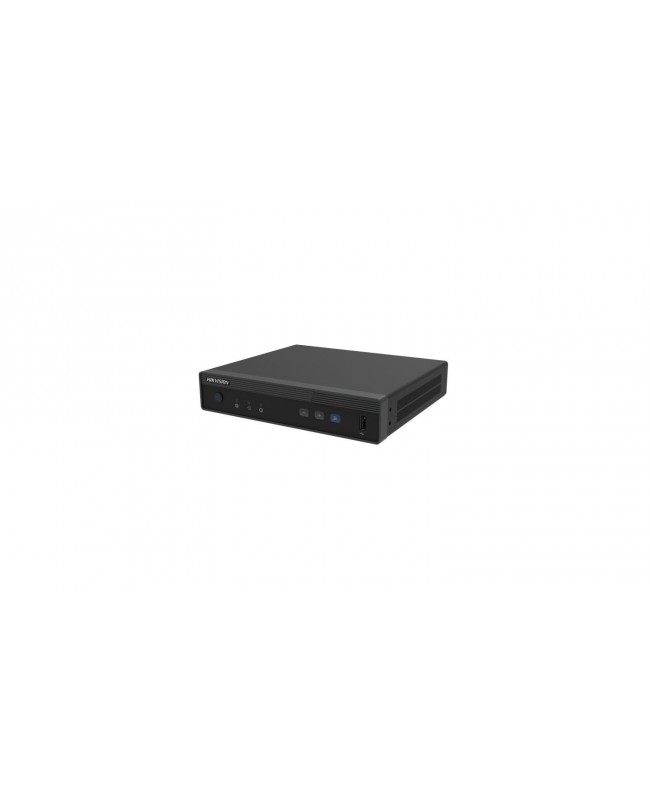

Hikvision Ledwall Controller 1U to 6 Portedata OUT

6-Port LED Controller Adopts a rackmount chassis with 1U height and half width, industrial-grade chassis system.

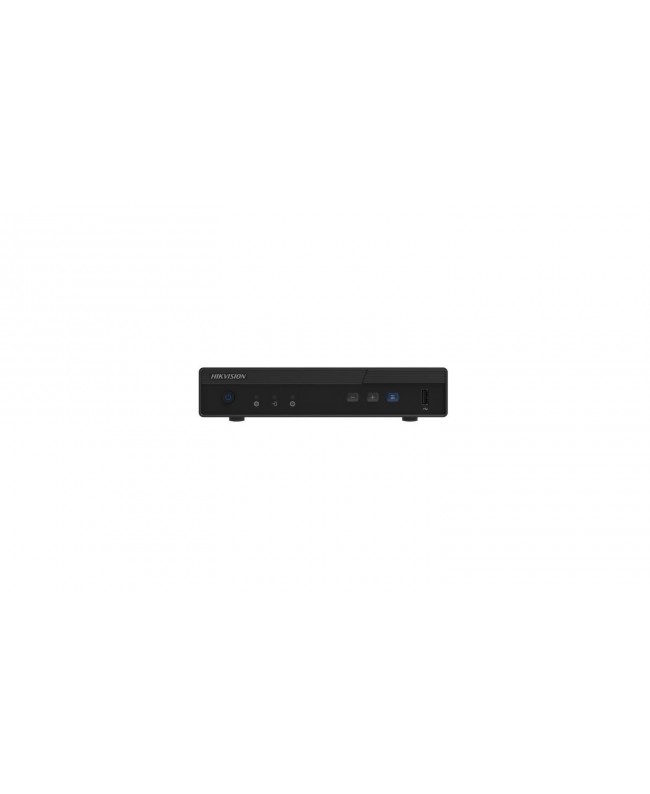

Provides buttons on front panel for brightness adjustment and signal source selection.

LED indicators on front panel for power status, signal access and operation status.

Supports 1 channel of HDMI 1.4 video input with resolution up to 1920 x 1200 at 60 Hz.

Supports automatic frame rate adjustment from 25 Hz to 60 Hz for image collection.

Supports RGB 444 image loading output without loss of image quality.

Supports 6 output channels with maximum loading capacity of 3.9 MP.

• Maximum width supported: 5120 pixels. Maximum height: 5120 pixels.
• Frame Rate: 25 Hz - 60 Hz
• Gray Level: 256
• Display Color: 16
• MP Processing Depth: 8 bit
• DS-DT60C-01HI06NO Chassis Height: 1U
• Chassis Width: Half Width
• Product Type: LED Controller (only supports control of receiver boards using hub ports) LED Controller Power Supply Average Power Consumption: max. 13 W
• Quantity Power Interfaces: 1
• Power Interface: 100-240 VAC, 50/60 Hz
• Videowall Background Images: 2
• Min.: 640 x 480,
• Max.: 1920 x 1200
• Storage Humidity: 10% - 90%
• Working Humidity: 10% - 90%
• Storage Temperature: -10°
• Net Weight: 1.01 kg (2.23 lb.)
• Gross Weight: 1.55 kg (3.42 lb.) Dimensions (W x H x D): 210 mm x 42 mm x 177.4 mm (8.27 x 1.65 x 6.98)
• Package Contents: 1 x AC Power Cable 1 x Connection Bracket 1 x Mounting Bracket 1 x Green RS-485 Contact for Central Control Device 1 x Regulatory Compliance and Safety Manual 1 x RF Remote Control
• Audio Input Interfaces: 1 Type of Audio Input Interface: 1 channel of built-in HDMI input
• Audio Output Interfaces: 1 Type of Audio Output Interface: 3.5mm Audio Output Input
• Video Input Interfaces: 1 Type of Video Input Interface: HDMI 1.4
• Maximum: 1920 x 1200 at 60 Hz
• Minimum: 320 x 180 at 60 Hz Custom resolution supported (up to 2.6 MP at 60
• Hz) Maximum width: 144 - 4096, alignment: 2
• Maximum height: 144 - 4096, alignment: 1 Supports HDCP 1.4 Interlaced video signal not supported Features of
• RGB: 444
• YUV: 444
• YUV: 422 Video Output
• Maximum Video Output Resolution: 3.9 MP Load Capacity for Video Output to LED: Single port with load of 650,000
• Width: 144-5120. alignment: 2
• Height: 64-5120. alignment: 1

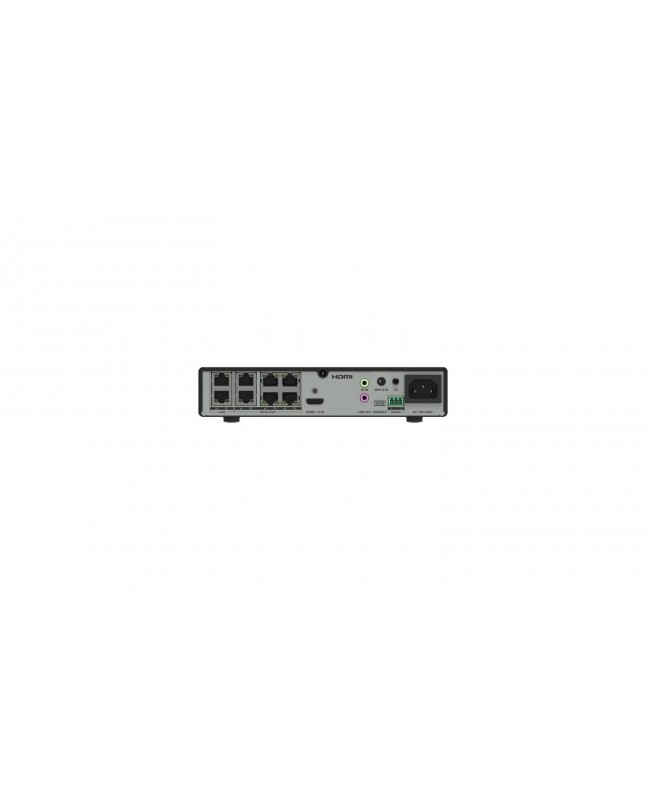

• LED Loading Interfaces: 6 Type of LED Loading Interface:
• RJ-45 Wireless Remote Control: Supports remote control
• IR Front Panel USB Port: 1 x USB 2.0
• Buttons: + : Increase brightness - : Decrease brightness
• Source: Change signal source
• Active: Device is running
• Source: Source signal detected
• Error: An abnormality has occurred in the operation
• On: Device is on and running
• Off: Device is off or not started Control Interfaces
• Control Network Port: 2 x 10/100/1000 Mbps self-adaptive Ethernet (RJ-45) Allows connection to external network and supports cascading of multiple devices.
• IR Input: 1 x 3.5 mm connector Supports remote control access
• IR. Serial Interface: 1 x Serial debug port (4-pin connector) 1 x RS-485 serial port for central control (green connector
• Phoenix) Baud rate: 115200, data bits: 8
