Novastar MCTRL660 Pro LED Wall Management
  • -24%

Novastar MCTRL660 Pro

€1,340.00
€1,022.00 -24%
Tax included
Lowest price within the last 30 days: €1,022.00

Sender box

Out of Stock

Free shipping

Compare

wishlist

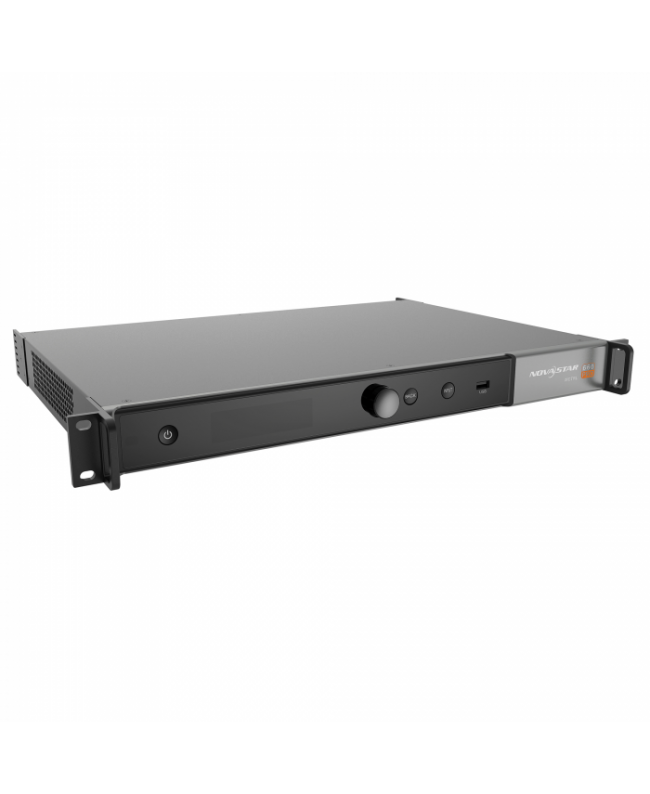

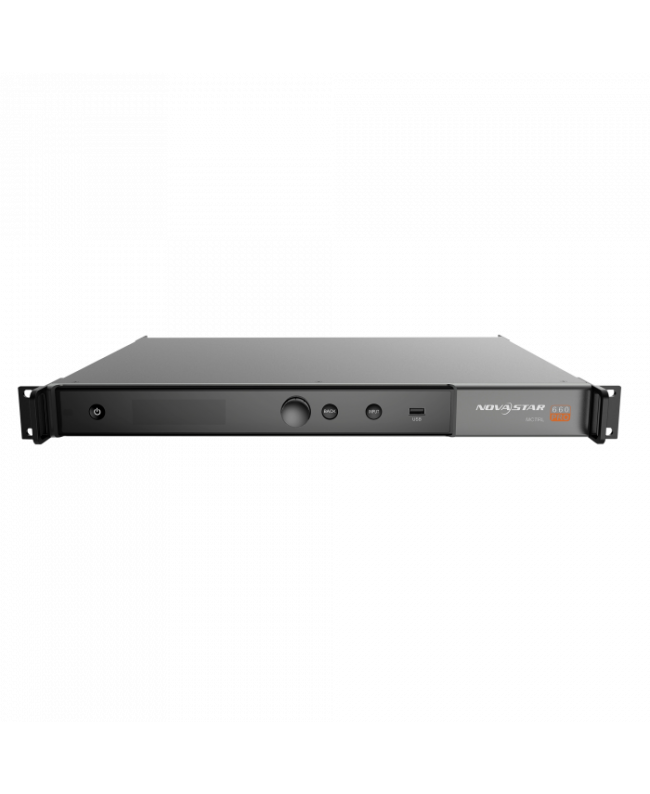

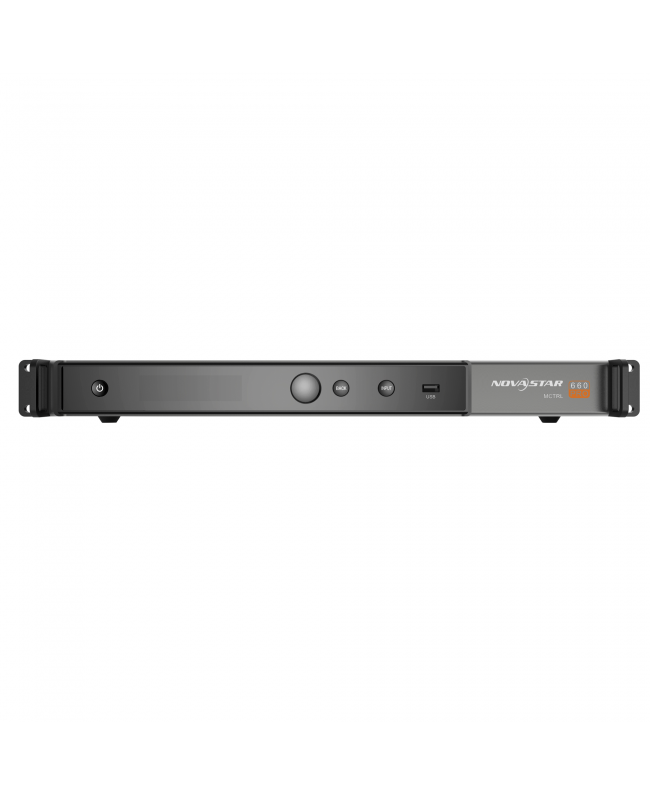

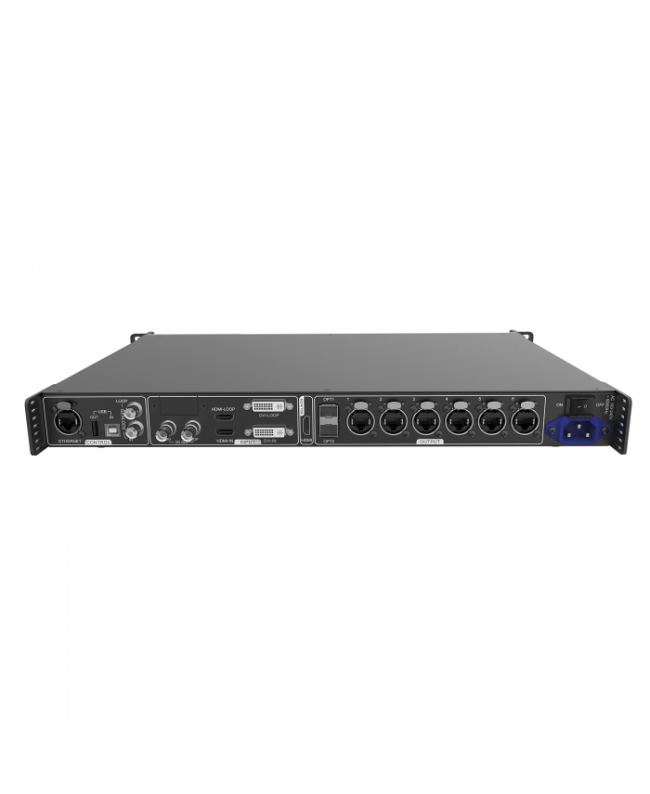

Novastar MCTRL660 Pro







The MCTRL660 PRO has many industry-leading advanced technologies. Various video inputs such as HDMI, DVI, 3G SDI and 6x Gigabit ethernet / 2x 10G optical outputs allow users to configure ultra-large screens with ultra-width or ultra-height.

  • Low latency of less than 1 frame
  • Cabinet config files saving and sending
  • Brightness, colour and test pattern adjustable by knob
  • Full HD capacity
  • 8/10/12-Bit colour Depth
  • 3G-SDI Input/loop
  • 6X gigabit ethernet output port
  • 2X 10G optical output port
  • Genlock In / Loop
  • 2.3 Mpx loading capacity

Specifications

Inputs

  • HDMI 1.4a: 1
  • Single Link DVI: 1
  • 3G-SDI: 1

Outputs

  • HDMI 1.4a (Loop): 1
  • Single Link DVI (Loop): 1
  • 3G-SDI (Loop): 1

Extra Features

  • Scaling Function: No
  • GenLock: In and Out

Control and Programming

  • Maximum Loading Capacity: 2.3 Mpx
  • Maximum Input Resolution: Width and Height can be defined by users

Electrical Specifications and Connections

  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 16 W
  • Power Connector In: RJ45, USB
  • Data Connector Out: RJ45

Mechanical Specifications

  • Width (handles included): 482 mm (18.976″)
  • Height (handles included): 50 mm (1.969″)
  • Depth (handles included): 349 mm (13.74″)
  • Weight: 4.6 kg (10,141 lb)
  • Flightcase size: 19”
  • Rack unit: 1 U
  • IP rating: IP20 (indoor use only)
  • Housing: Aluminum, Metal
  • Color: Black

Product Properties

  • Cooling: Active

Thermal Specifications

  • Maximum Ambient Temperature: 60 °C (140 °F)
  • Minimum Ambient Temperature: -20 °C (-4 °F)
  • Operating Humidity: 0-95 %rH

101621
